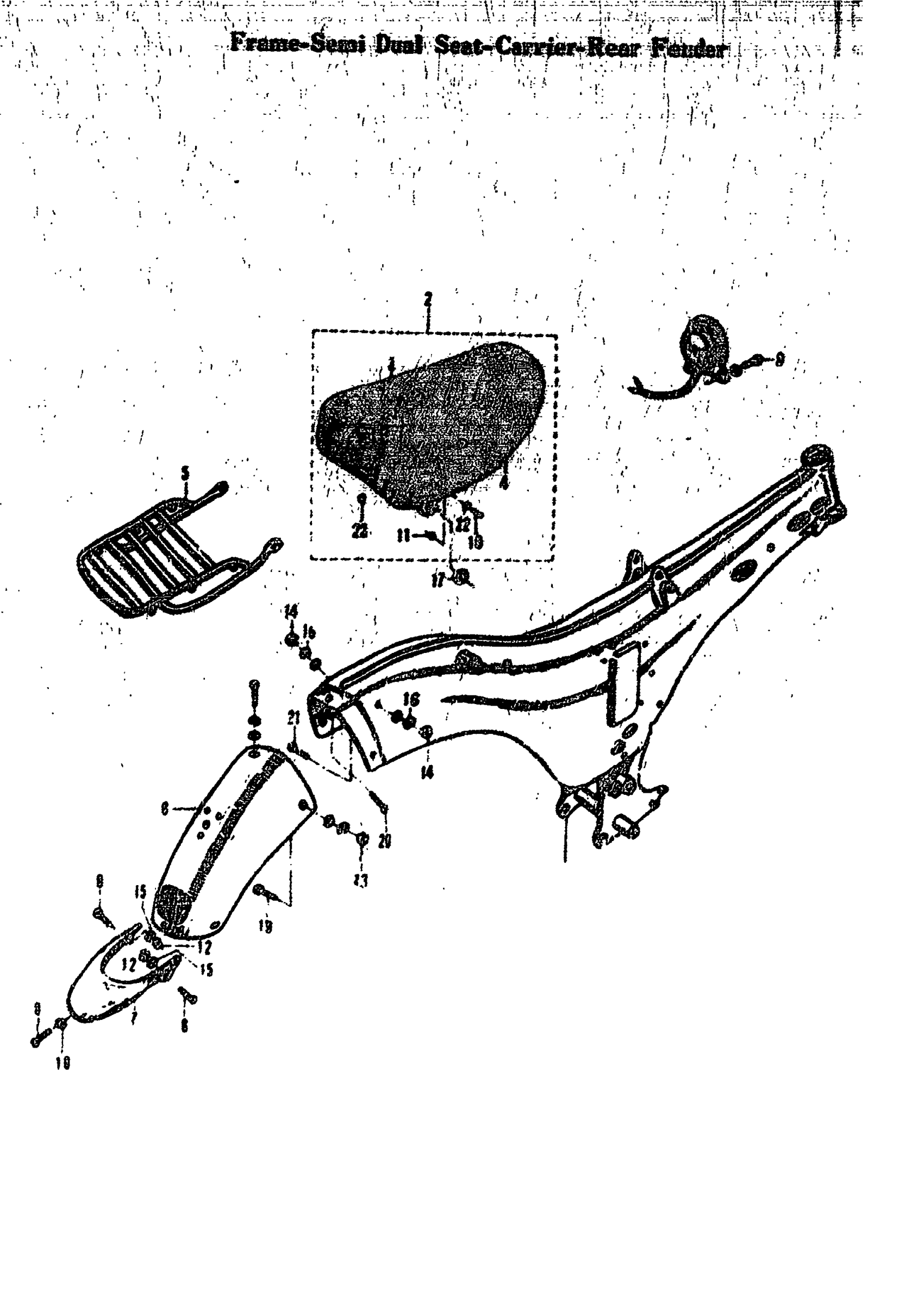

Suzuki 80K10P (1968) FRAME-SEMI DUAL SEAT-CARRIER-REAR FENDER Diagram

#

Description
Price

1

FRAMER

41100-03602

Unavailable

2

SEMI-DUAL SEAT ASS'Y

45100-03601

Unavailable

3

SEMI-DUST SEAT LEATHER

45160-03601

Unavailable

4

SEMI-DUST SEAT RIM

45191-03600

Unavailable

5

CARRIER

46310-03801

Unavailable

6

REAR FENDER

63110-03621

Unavailable

7

REAR FENDER EXTENSION

63311-01200

Unavailable

8

BOLT This part replaces 01111-05108.

01500-0510B

$1.80

8

HEXAGON HOLT

01111-05101

Unavailable

9

BOLT This part replaces 01211-06127.

01204-06127

$2.07

10

NO DESCRIPTION AVAILABLE This part replaces 02141-03208.

02142-03208

Unavailable

10

CROSS HEAD SCREW

02141-03201

Unavailable

11

NUT This part replaces 08311-11038.

08310-0003B

$2.83

11

HEXAGON NUT

08311-11031

Unavailable

12

HEXAGON NUT

08311-11051

Unavailable

13

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

$1.84

14

NUT This part replaces 08313-11087.

08313-10087

$2.28

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

WASHER This part replaces 08322-11108.

08322-01107

$2.15

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13

19

REAR FENDER FITTING BOLT | W L=12(0.47)

09100-06010

Unavailable

20

BOLT (8X16) | P; OD=8 SCREW L=16(0.63) This part replaces 09100-08006.

09100-08284

$3.87

21

CARRIER RIGHT FITTING BOLT | 8 SCREW L=24(0.94)

09100-08008

Unavailable

22

DUAL SEAT RIM FITTING WASHER | P; OD=14(0.55) ID=2.7(05(0.02)

09160-03001

Unavailable

23

SEMI-DUAL SEAT LEATHER FITTIN | P

09410-00004

Unavailable
