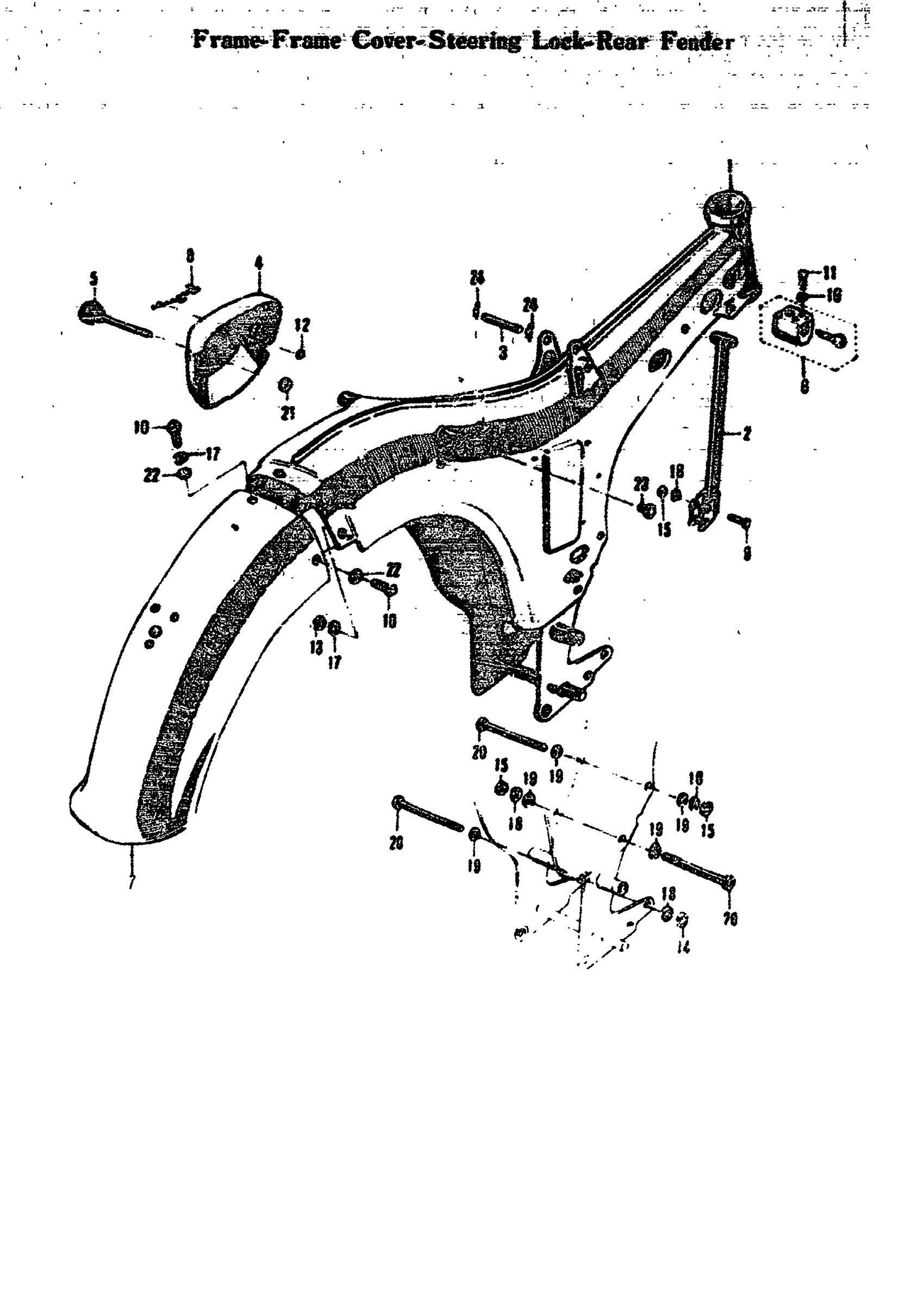

Suzuki 80K10P (1968) FRAME-FRAME COVER-STEERING LOCK-REAR FENDER Diagram

#

Description
Price

1

FRAME

41100-03007

Unavailable

2

ENGINE SUPPORT PIPE

41300-03000

Unavailable

3

DEAL SEAT FRAME ANCHOR PIN | O.D.=10(0.39).I.=110(4.33)

45233-01000

Unavailable

4

FRAME LEFT COVER | PURE WHITE

47211-07000-064

Unavailable

5

FRAME COVER KNOB

47230-01000

Unavailable

6

HEAD LOCK ASS'Y | ISO

51900-03012

Unavailable

7

REAR FENDER

63110-03601

Unavailable

8

FRAME COVER EMBLEM | ISO

68131-07601

Unavailable

9

SMALL HEAD HEXAGON BOLT

01121-08407

Unavailable

10

BOLT This part replaces 01211-06127.

01204-06127

$2.07

11

CROSS HEAD SCREW

02111-05128

Unavailable

11

CROSS HEAD SCREW

02111-05121

Unavailable

12

NUT This part replaces 08311-11038.

08310-0003B

$2.83

12

HEXAGON NUT

08311-11031

Unavailable

13

.NUT This part replaces 08311-31068.

08310-00067

$2.13

14

NUT This part replaces 08312-11088.

08310-00087

$2.13

15

SMALL HEXAGON NUT

08312-11087

Unavailable

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

BOLT This part replaces 09100-08024.

09100-08228

$7.02

21

FRAME COVER KNOB STOPPER

09152-06002

$1.67

22

WASHER | O.D.=18(0.71).I.D.=6.5(0.6(0.06) This part replaces 09160-06007.

09160-06084

$1.78

23

SEAT FITTING HOLE PLUG

09250-08002

Unavailable
