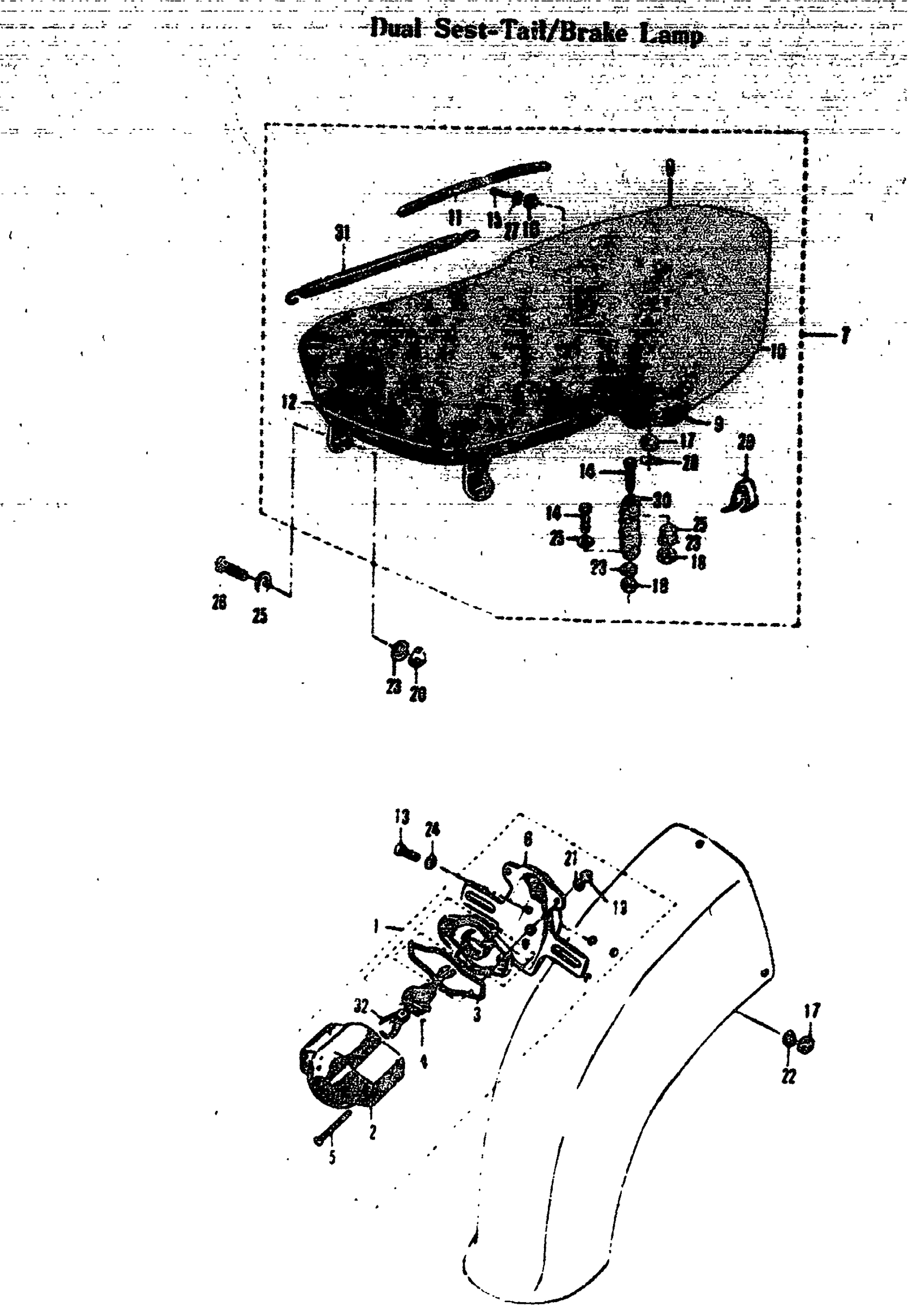

Suzuki 80K10P (1968) DUAL SEAT-TAIL/BRAKE LAMP Diagram

#

Description
Price

1

TAIL/BRAKE LAMP ASS'Y | ISO

35710-01611

Unavailable

2

TAIL/BRAKE LAMP LENS

35712-11011

Unavailable

3

TAIL/BRAKE LAMP LAMP GASKET

35713-11010

Unavailable

4

TAIL/BRAKE LAMP SOCKET

35715-11011

Unavailable

5

LENS FITTING SCREW | ISO

35723-03312

Unavailable

5

LENS FITTING SCREW | O.D.=3 SCREW L = 51 (2.0

35723-03310

Unavailable

6

TAIL/BRAKE LAMP BRACKET

35726-11012

Unavailable

7

DUAL SEAT ASS'Y

45100-01611

Unavailable

8

DUAL SEAT LEATHER

45160-01601

Unavailable

9

DUAL SEAT PASSENGER STRAP

45180-01701

Unavailable

10

DUAL SEAT FRONT RIGHT RIM

45191-01700

Unavailable

11

DUAL SEAT FRONT LEFT RIM

45192-01700

Unavailable

12

DUAL SEAT REAR RIM

45193-01700

Unavailable

13

BOLT, RUBBER STOP This part replaces 01111-05128.

01500-05127

$2.10

14

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

15

NO DESCRIPTION AVAILABLE This part replaces 02141-03208.

02142-03208

Unavailable

15

CROSS HEAD SCREW

02141-03201

Unavailable

16

NUT This part replaces 08311-11038.

08310-0003B

$2.83

16

HEXAGON NUT

08311-11031

Unavailable

17

.NUT This part replaces 08311-11068.

08310-00067

$2.13

18

NUT This part replaces 08311-11088.

08310-00087

$2.13

19

CROWN NUT

08313-11047

Unavailable

19

CROWN NUT

08313-11042

Unavailable

20

NUT This part replaces 08313-11087.

08313-10087

$2.28

21

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

WASHER This part replaces 08322-21088.

08322-01087

$2.13

26

BOLT (8X16) | .=3 SCREW L=K0.50 This part replaces 09100-08006.

09100-08284

$3.87

27

DUAL SEAT RIM WASHER

09160-03001

Unavailable

28

PASSENGER STRAP FITTING CLIP

09385-06001

$3.10

29

DUAL SEAT LEATHER FITTING CLI

09410-00004

Unavailable

30

DUAL SEAT SPRING

09446-42001

Unavailable

31

DUAL SEAT TENSION SPRING

09447-10003

Unavailable
