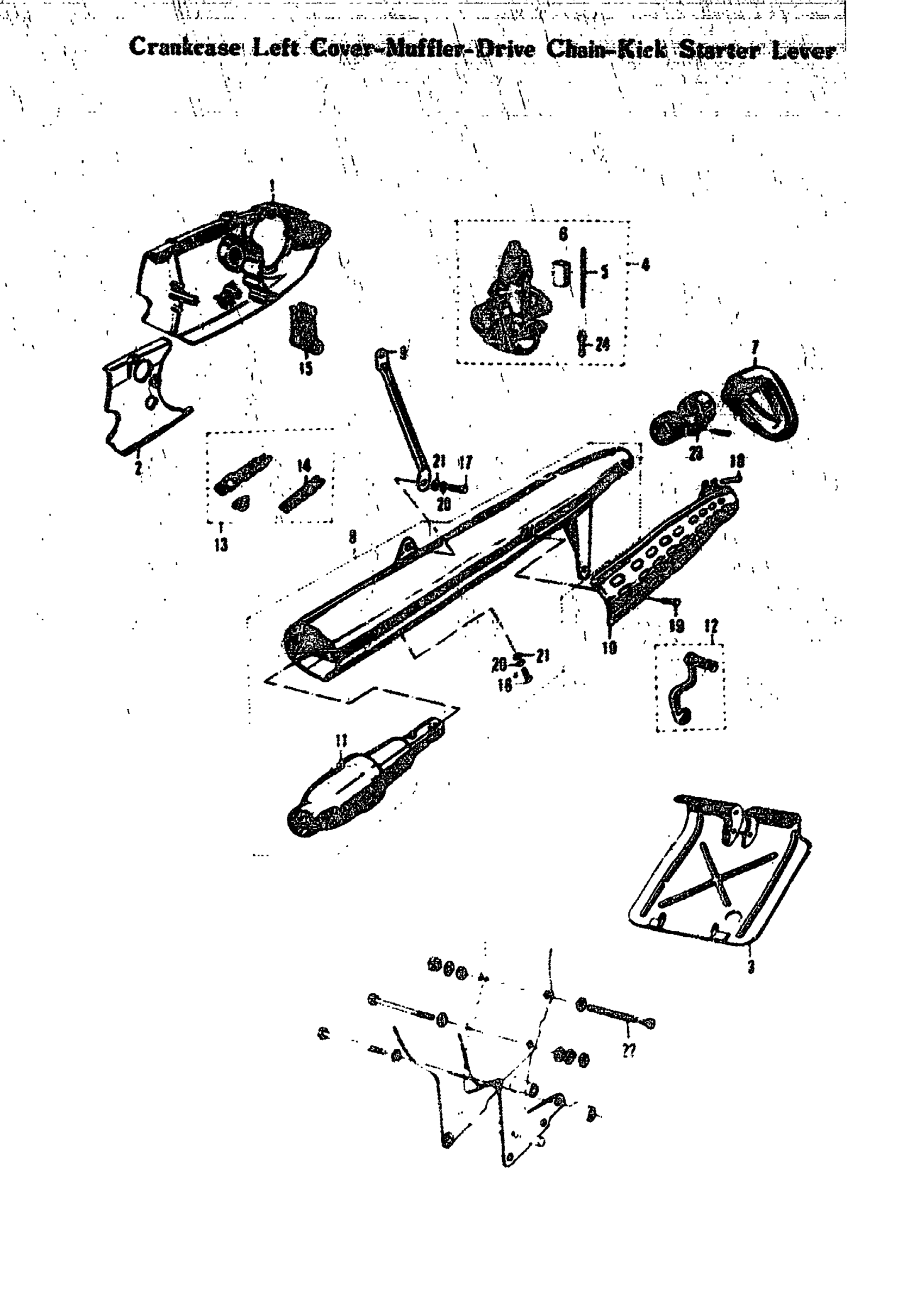

Suzuki 80K10P (1968) CRANKCASE LEFT COVER-MUFFLER-DRIVE CHAIN-KICK STARTER LEVER Diagram

#

Description
Price

1

CRANKCASE LEFT COVER

11351-03611

Unavailable

2

ENGINE SPROCKET BACK COVER

11371-03600

Unavailable

3

SKID PLATE

11910-03600

Unavailable

4

CARBURETER ASS'Y

13200-03603

Unavailable

5

JET NEEDLE | 5

13383-11600

Unavailable

6

THROTTLE VALVE | M E.NO.K10-488320

13551-03112

Unavailable

7

EXHAUST PIPE

14150-03600

Unavailable

8

MUFFLER ASS'Y

14301-03601

Unavailable

9

MUFFLER REAR BRACE

14470-01201

Unavailable

10

MUFFLER COVER

14780-03103

Unavailable

11

SPARK ARRESTER

14801-03600

Unavailable

12

KICK STARTER LEVER ASS'Y

26300-03101

Unavailable

13

CHAIN ASSY,DRIV | +#420x9L+27620-01011 (2 This part replaces 27600-05011.

27600-01012-130

Unavailable

14

DRIVE CHAIN EXTENSION

27700-03610

Unavailable

15

DRIVE SPROCKET MUD PROTECTOR

27711-03600

Unavailable

16

HEXAGON BOLT

01111-06088

Unavailable

17

HEXAGON BOLT

01111-06127

Unavailable

18

SCREW This part replaces 02111-05168.

02112-05167

$1.97

18

CROSS HEAD SCREW

02111-05161

Unavailable

19

CROSS HEAD SCREW

02111-06088

Unavailable

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

ENGINE MOUNTING BOLT

09100-08026

Unavailable

23

MUFFLER CONNECTOR HAND

09402-00029

Unavailable
