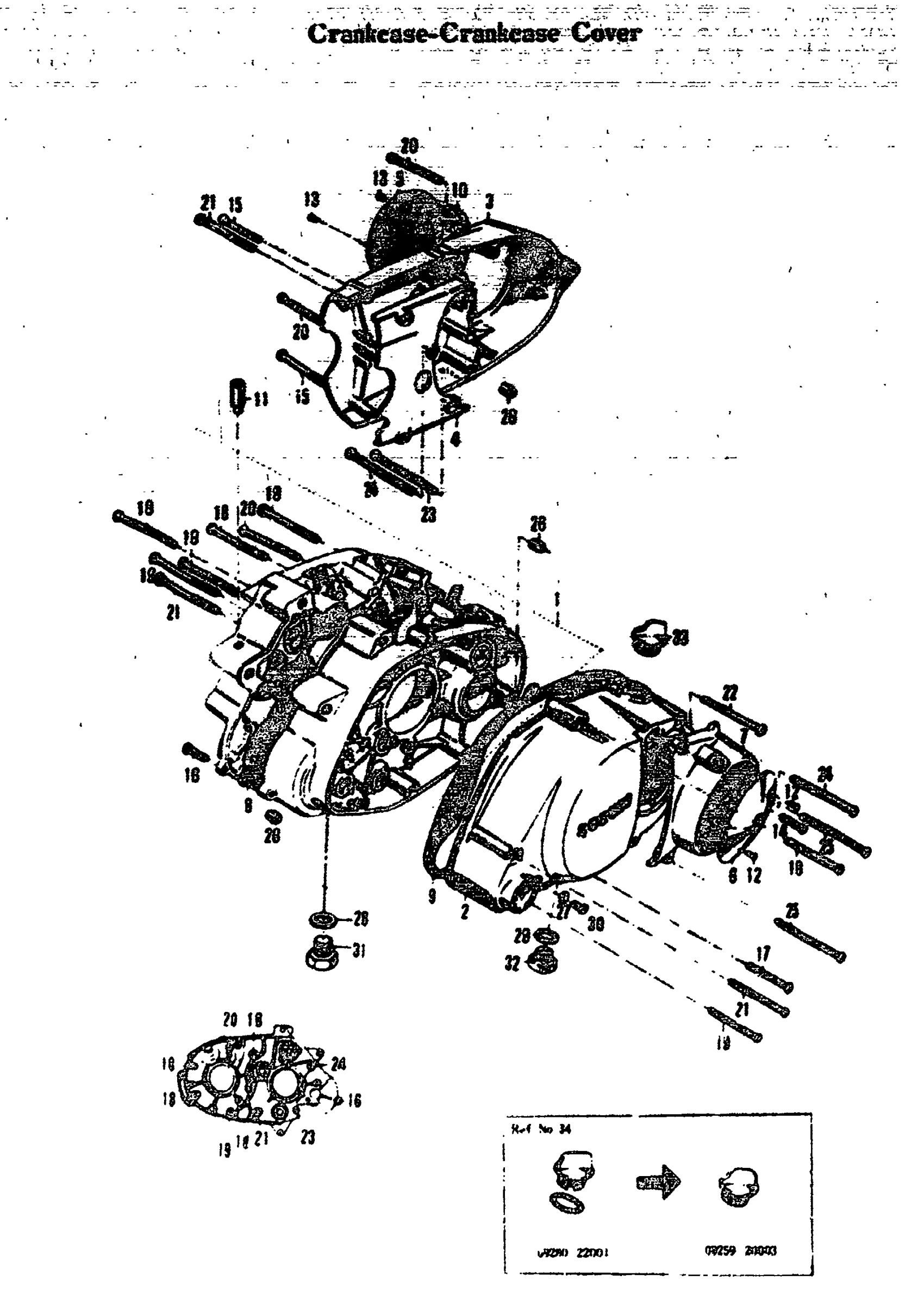

Suzuki 80K10P (1968) CRANKCASE-CRANKCASE COVER Diagram

#

Description
Price

1

RANKCASE ASS'Y | P; ISO.INCLUDES REF.NO. 29

11302-03831 C

Unavailable

1

| 2

11302-03831

Unavailable

2

RANKCASE RIGHT COVER | P; ISO

11341-03602 C

Unavailable

3

RANKCASE LEFT COVER

11351-03621 C

Unavailable

4

ENGINE SPROCKET BACK COVER

11371-03000

Unavailable

5

DYCAMO INSPECTION CAP | P; CHROME-PLATED

11381-01000

Unavailable

6

OIL PUMP COVER CAP | P

11385-03100

Unavailable

7

OIL PUMP COVER | P; ISO

11411-03601

Unavailable

8

CRANKCASE GASKET | P

11481-03002

Unavailable

9

CRANKCASE RIGHT COVER GASKET | P

11482-03000

Unavailable

10

DYNAMO INSPECTION CAP GASKET | P; O.D=99.5(3.@2),I.D.=60(1.0(0.04)

11491-01000

Unavailable

11

PLUG, BREATHER | P This part replaces 24821-09000.

24821-09001

$9.33

12

ROSS HEAD SCREW

02111-04068 C

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 02111-04061.

02111-04062

Unavailable

13

ROSS HEAD SCREW

02111-05088 C

Unavailable

13

CROSS HEAD SCREW

02111-05081

Unavailable

14

CROSS HEAD SCREW

02111-06208

Unavailable

15

CROSS HEAD SCREW

02111-06408

Unavailable

16

SCREW This part replaces 02112-06208.

02112-06207

$1.78

17

SCREW This part replaces 02112-06358.

02112-06357

$1.78

18

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

19

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

20

SCREW This part replaces 02112-06558.

02112-06557

$2.53

21

SCREW This part replaces 02112-06608.

02112-06607

$2.57

22

SCREW This part replaces 02112-06658.

02112-06657

$2.62

23

SCREW This part replaces 02112-06708.

02112-06707

$2.53

24

SCREW This part replaces 02112-06758.

02112-06757

$3.08

25

SCREW This part replaces 02112-06808.

02112-06807

$2.57

26

DOWEL PIN

04211-09129

$1.65

27

OIL LEVEL SERVER GASKET | P; O.D=11(0.43)I.D=6.2(0.24)06)

09168-06001

$1.49

28

CRANK DRAIN PLUG GASKET | P

09168-10002

$2.13

29

DRAIN PLUG GASKET | P

09168-14004

$1.83

30

OIL LEVEL SCREW

09247-06001

Unavailable

31

CRANK DRAIN PLUG | P

09247-10001

$2.20

32

PLUG (MAGNETO) | P This part replaces 09247-14001.

09247-14002

$5.24

33

PLUG SET | P This part replaces 09259-20003.

09200-20811

$4.02

34

.O-RING (D:2.4,ID:21.8) | P; O.D 26.6(1.05),I.D=21.8(0.86),

09280-22001

$1.65
