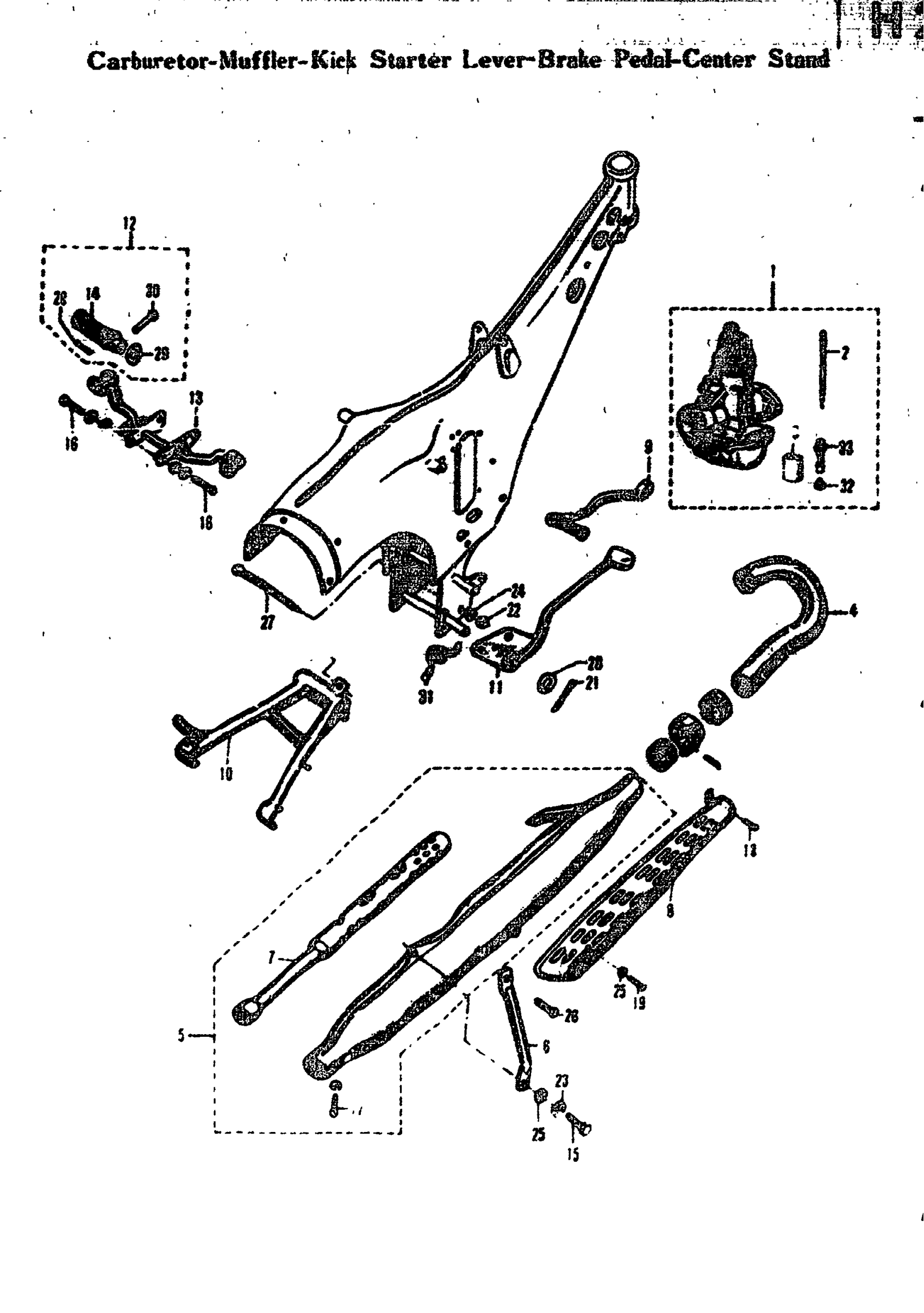

Suzuki 80K10P (1968) CARBURETOR-MUFFLER-KICK STARTER LEVER-BRAKE PEDAL-CENTER STAND Diagram

#

Description
Price

1

CARBURETOR ASS'Y

13200-03114

Unavailable

2

JET NEEDLE | 5

13383-11600

Unavailable

3

THROATLE VALVE | M E.NO. K10-408320

13551-03112

Unavailable

4

EXHAUST PIPE

14150-03101

Unavailable

5

MUFFLER ASS'Y

14301-03104

Unavailable

6

MUFFLER REAR BRACE

14470-01201

Unavailable

7

MUFFLER RUFFLE PIPE

14510-03105

Unavailable

8

MUFFLER COVER

14780-03103

Unavailable

9

KICK STARTER LEVER ASS'Y

26300-03101

Unavailable

10

CENTER STAND

42100-03102

Unavailable

11

BRAKE PEDAL

43110-03602

Unavailable

12

FOLDING FOOTREST RUBBER ASS'Y

43500-03841

Unavailable

13

FOOTREST BAR

43510-03601

Unavailable

14

FOLDING FOOTREST RUBBER

43550-03600

Unavailable

15

HEXAGON BOLT

01111-06127

Unavailable

16

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

17

CROSS HEAD SCREW

02111-05088

Unavailable

17

CROSS HEAD SCREW

02111-05081

Unavailable

18

SCREW This part replaces 02111-05168.

02112-05167

$1.97

18

CROSS HEAD SCREW

02111-05161

Unavailable

19

CROSS HEAD SCREW

02111-06088

Unavailable

20

COTTER PIN

04111-20188

Unavailable

21

PIN This part replaces 04111-30258.

04111-3030A

$1.49

22

NUT This part replaces 08312-11108.

08310-00107

$2.19

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

DUAL SEAT RIGHT FITTING BOLT | 8SCREW L=24(0.94)

09100-08008

Unavailable

27

BOLT,10X107 | 10(0.39) L=107(4.21) This part replaces 09100-10018.

09100-10151

Unavailable

28

BRAKE PEDAL WASHER | 26(1.02) ID=15.5(0.61)9)

09160-15002

$1.91

29

WASHER | 36(1.42) ID=22.5(0.89)9) This part replaces 09160-22002.

09160-22033

$3.89

30

FOLDING FOOTREST RUBBER FITTI | 8(0.31) L=35(1.38)

09200-08002

$2.05

31

SPRING, BRAKE PEDAL This part replaces 09448-32002.

09448-29001

Unavailable

32

MAIN JET

09491-95001

Unavailable
