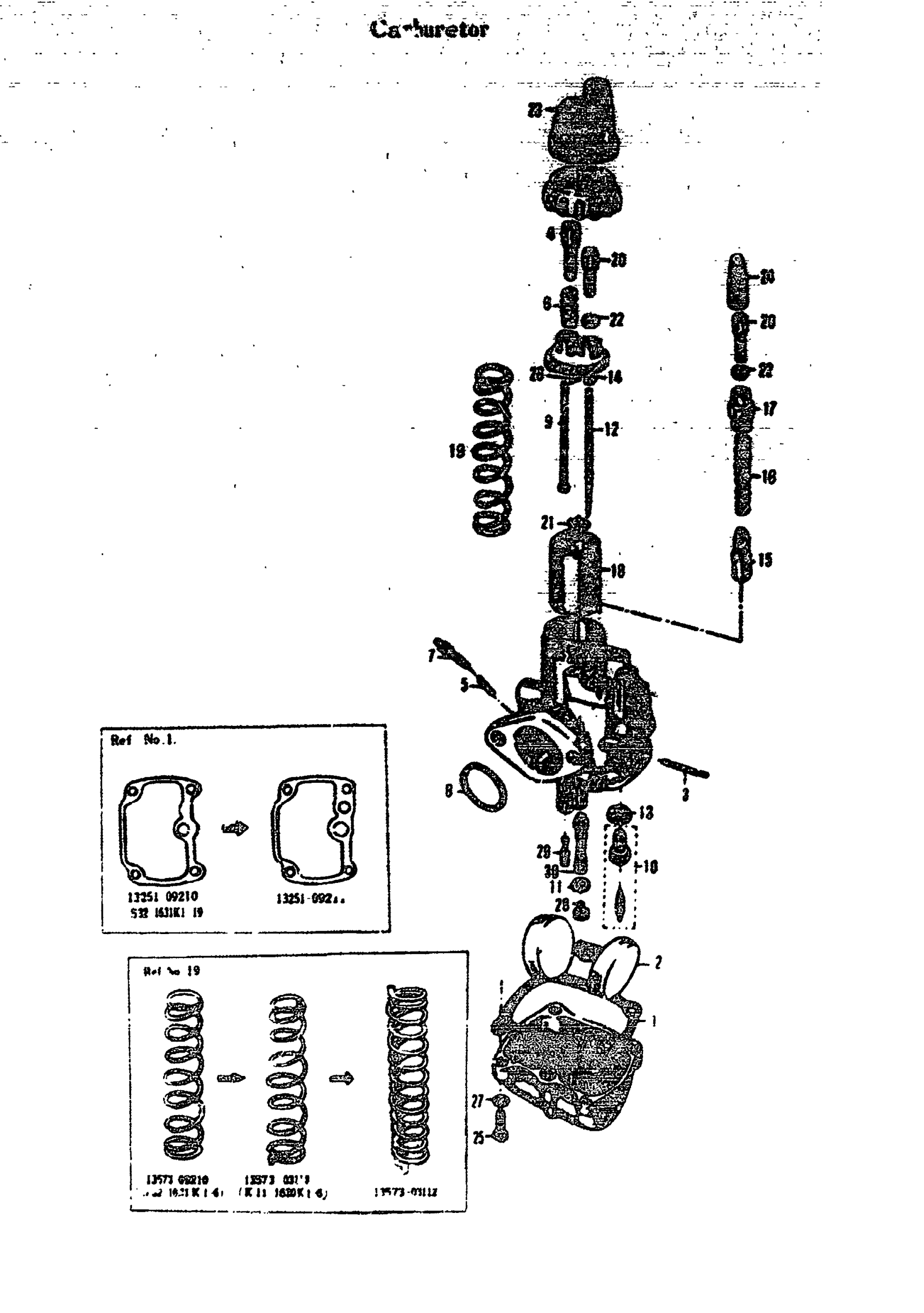

Suzuki 80K10P (1968) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASS'Y

13200-03621

Unavailable

1

FLOAT CHAMBER GASKET | P

13251-09211

$5.58

1

FLOAT CHAMBER GASKET | P

13251-09210

Unavailable

2

FLOAT | P

13252-09210

$20.76

3

.PIN, FLOAT | P

13254-01010

$3.62

4

THROTTLE VALVE STOP SCREW | P

13267-09210

Unavailable

5

PILOT AIR ADJUSTING SCREW SPR | PP

13268-01010

$5.28

6

THROTTLE VALVE STOP SCREW SPR | PP

13268-03110

$5.45

7

PILOT AIR ADJUSTING SCREW | P

13269-01010

$14.20

8

OUTLET "O" RING | P; O.D.28.8(1.13)

13235-09210

Unavailable

9

THROTTLE VALVE ADJUSTING ROD | P

13296-09210

Unavailable

10

NEEDLE VALVE ASS'Y | P; #15

13370-03110

Unavailable

11

NEEDLE JET STOP WASHER | P;

13382-03110

$2.80

12

JET NEEDLE

13383-03621

Unavailable

12

NEEDLE, JET | P; UP TO E.NO.K10-489294 This part replaces 13383-11010.

13383-33010

$20.13

13

NEEDLE VALVE SEAT GASKET | P

13392-01010

$2.15

14

NEEDLE CLIP | P

13394-03010

Unavailable

15

STARTER PLUNGER | P

13411-08010

Unavailable

16

STARTER PLUNGER SPRING | P

13417-07010

Unavailable

17

STARTER PLUNGER | P This part replaces 13418-03110.

13418-63110

Unavailable

18

THROTTLE VALVE | 2 5

13551-03621

Unavailable

18

THROTTLE VALVE | P; CUT AWAY=2 0 UP TO E.NO4

13551-03111

Unavailable

19

THROTTLE VALVE SPRING | P

13573-03112

Unavailable

19

THROTTLE VALVE SPRING | P; UP TO E.NO K10-489294

13573-03110

Unavailable

19

SPRING, THROTTLE VALVE | O K10-431800 OD=18(0.71)I.D=16.4=72.(2.84) This part replaces 13573-09210.

13573-36110

$6.20

20

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

21

NEEDLE CLIP STOPPER | P

13581-09210

$6.55

22

CABLE ADJUSTER LOCK NUT | P

13661-03010

$5.67

23

CABLE ADJUSTER CAP | P

13681-09210

Unavailable

24

CABLE ADJUSTER CAP | P

13682-02010

Unavailable

25

CROSS HEAD SCREW

02111-04181

Unavailable

26

COTTER PIN

04111-12088

Unavailable

27

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

28

MAIN JET | NDARD #110

09491-22001

Unavailable

28

MAIN JET | #100

09491-20001

Unavailable

28

MAIN JET | #105

09491-21002

Unavailable

28

MAIN JET | #120

09491-24001

Unavailable

29

PILOT JET | P; #25

09492-25001

Unavailable
