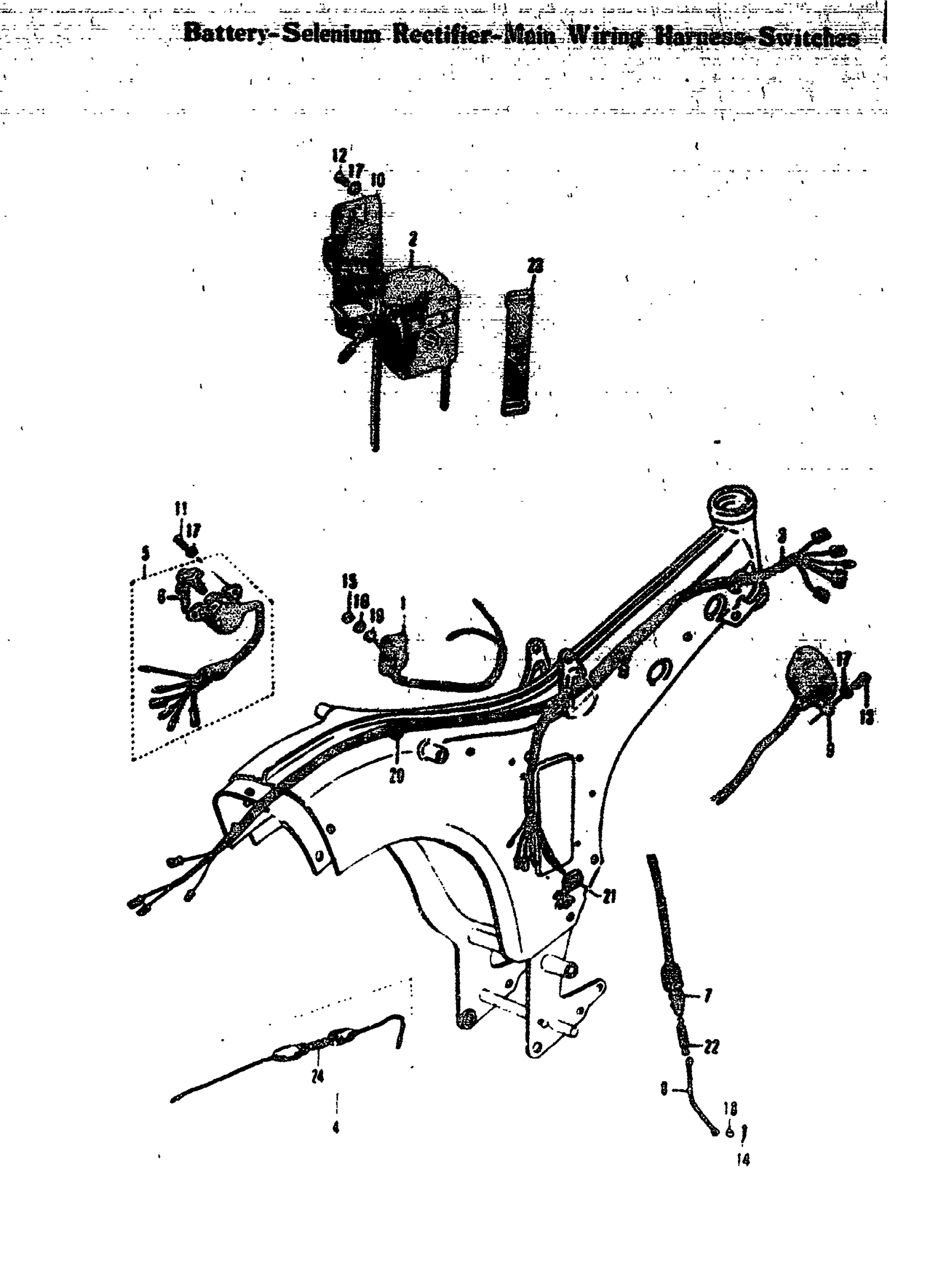

Suzuki 80K10P (1968) BATTERY-SELENIUM RECTIFIER-MAIN WIRING HARNESS-SWITCHES Diagram

#

Description
Price

1

DIODE | P; ISO This part replaces 32800-01020.

32800-16A00

$23.07

2

BATTERY ASSY | P; 6V4AH

33610-03010

Unavailable

3

MAIN WIRING HARNESS | P

36610-03610

Unavailable

4

FUEL CASE ASS'Y | P

38740-01010

Unavailable

5

IGNITION SWITCH ASS'Y | P

37110-03612

Unavailable

6

SLOTTED BLANK KEY | P; OPTIONAL FOR IGNITION SITH NOS.OF WHICH INITIAL IP; OPTIONAL FOR IGNITION SITH NOS.OF WHICH INITIAL I

37146-07700

Unavailable

6

SLOTTED BLANK KEY | P; OPTIONAL FOR IGNITION SITH NOS.OF WHICH INITIAL I

37147-07700

Unavailable

6

SLOTTED BLANK KEY | P; OPTIONAL FOR IGNITION SITH NOS.OF WHICH INITIAL I

37148-07700

Unavailable

7

BRAKE LAMP SWITCH ASS'Y | P

37740-11010

Unavailable

8

BRAKE LAMP SWITCH HOOK | P

37911-03000

Unavailable

9

HORN | P; ISO

38500-01030

Unavailable

10

BATTERY HOLDER | P

41540-03000

Unavailable

11

CROSS HEAD SCREW

02111-06088

Unavailable

12

CROSS HEAD SCREW

02111-06108

Unavailable

13

CROSS HEAD SCREW

02111-08128

Unavailable

14

COTTER PIN

04111-20108

Unavailable

15

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

HEXAGON NUT

08311-11051

Unavailable

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER This part replaces 08322-21043.

08322-0104A

$1.91

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13

20

MAIN WIRING HARNESS GROMMET | P; OD=22(0.87) ID=6(0.24))

09308-06002

Unavailable

21

BRAKE LAMP SWITCH CORD GROMME | P

09308-12001

Unavailable

22

BRAKE LAMP SWITCH SPRING | P

09443-07010

Unavailable

23

BAND, TOOL | P This part replaces 09462-00002.

09462-00067

$5.11
