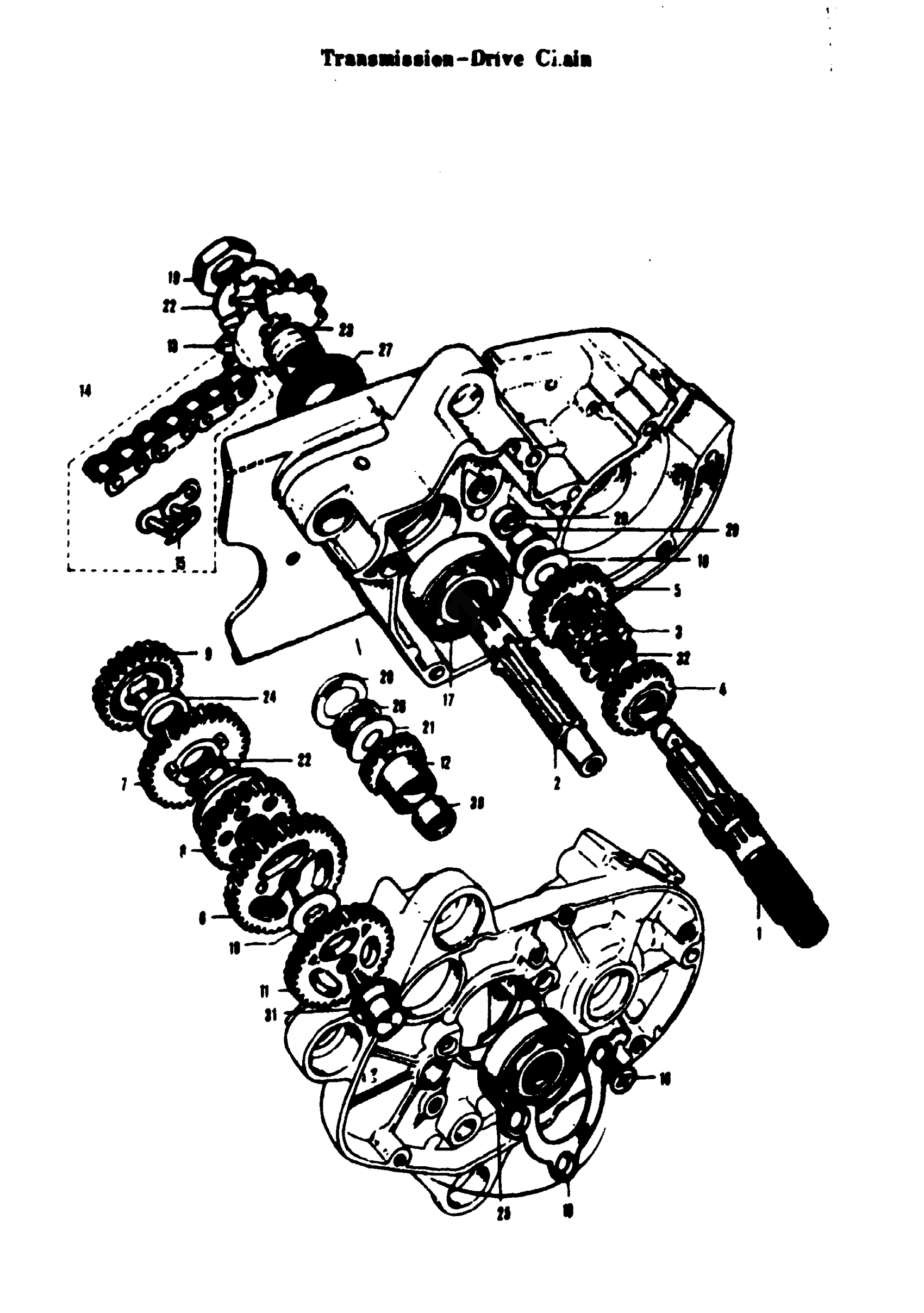

Suzuki 80K10 (1968) TRANSMISSION-DRIVE CHAIN Diagram

#

Description
Price

1

COUNTER SHAFT | N.T. =13

24121-03001

Unavailable

2

DRIVE SHAFT

24131-03000

Unavailable

3

SECOND PINION | N.T. =19 AFTER E.NO. K10-

24221-03001

Unavailable

4

NO DESCRIPTION AVAILABLE | N.T. =23 This part replaces 24231-03001.

24231-03002

Unavailable

5

TOP PINION | N.T. =28 AFTER E. NO. K10

24241-03001

Unavailable

6

GEAR,1ST DRIVEN | N.T. =43 This part replaces 24310-03002.

24310-03003

Unavailable

7

NO DESCRIPTION AVAILABLE | N.T. =39 This part replaces 24320-03000.

24320-26300

Unavailable

8

GEAR, 3RD DRIVEN | N.T. =34 This part replaces 24331-03000.

24331-03001

Unavailable

9

TOP GEAR | N.T. =30

24341-03000

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 24741-03000.

24741-03001

Unavailable

11

KICK STARTER IDLE GEAR COMP. | N.T. =36

26260-03002

Unavailable

12

NO DESCRIPTION AVAILABLE | N.T. =17 This part replaces 26280-03002.

26280-03003

Unavailable

13

ENGINE SPROCKET | DARD (#420 N.T. =113)

27511-01000

Unavailable

13

SPROCKET, ENGINE (NT:12)* | =420 N.T. =12 This part replaces 27511-01710.

27511-04000

Unavailable

13

ENGINE SPROCKET | =420 N.T. = 14

27511-01720

Unavailable

14

DRIVE CHAIN ASS'Y | x100L

27600-01010

Unavailable

15

JOINT (DID) | #420 This part replaces 27620-01011.

27620-01012

$6.87

16

CROSS HEAD SCREW

02121-06128

Unavailable

17

BALL BEARING

08113-63030

$23.65

18

TOP PINION/LOW GEAR THRUST WA

08211-12241

$2.06

19

ENGINE SPROCKET NUT

09140-16002

$3.16

20

THRUST BEARING SPACER | O.D.=34.5(1.36), L.D.=20( O.D.=34.5(1.36), L.D.=20(0.8(0.03) This part replaces 09160-20006.

09160-20007

Unavailable

21

THRUST BEARING SPACER | BLUE-COLORED O.D.=34.5(128(0.79) T.=0.8(0.03)

09160-20007

Unavailable

22

ENGINE SPROCKET LOCK WASHER | O.D.=33(1.3) L.D.=13(0.510.04)

09167-16001

$1.87

23

ENGINE SPROCKET SPACER | O.D.=22(0.83) I.D.=17(0.60.51)

09180-17008

$8.58

24

SECOND GEAR SPACER | O.D.=25(0.94) I.D.=17(0.6.24)

09180-17022

Unavailable

25

BEARING | O.D.=62(2.44) I.D.=30(1.10.39) This part replaces 09262-30002.

09262-30003

Unavailable

26

KICK STARTER GEAR THRUST BEAR

09263-20002

Unavailable

27

DRIVE SHAFT OIL SEAL | O.D.=40(1.57) I.D.=21(0.8.27)

09283-21001

$12.70

28

SEAL OIL(5.5X16 | O.D.=16(0.63) I.D.=5(0.2)) This part replaces 09285-05004.

09285-05007

$4.47

29

COUNTER SHAFT BUSHING

09301-12001

Unavailable

30

KICK STARTER GEAR BUSHING | O.D.=23(0.91) I.D.=20.7(0..7(0.58)

09304-20001

Unavailable

31

DRIVE SHAFT BUSHING

09319-12004

Unavailable
