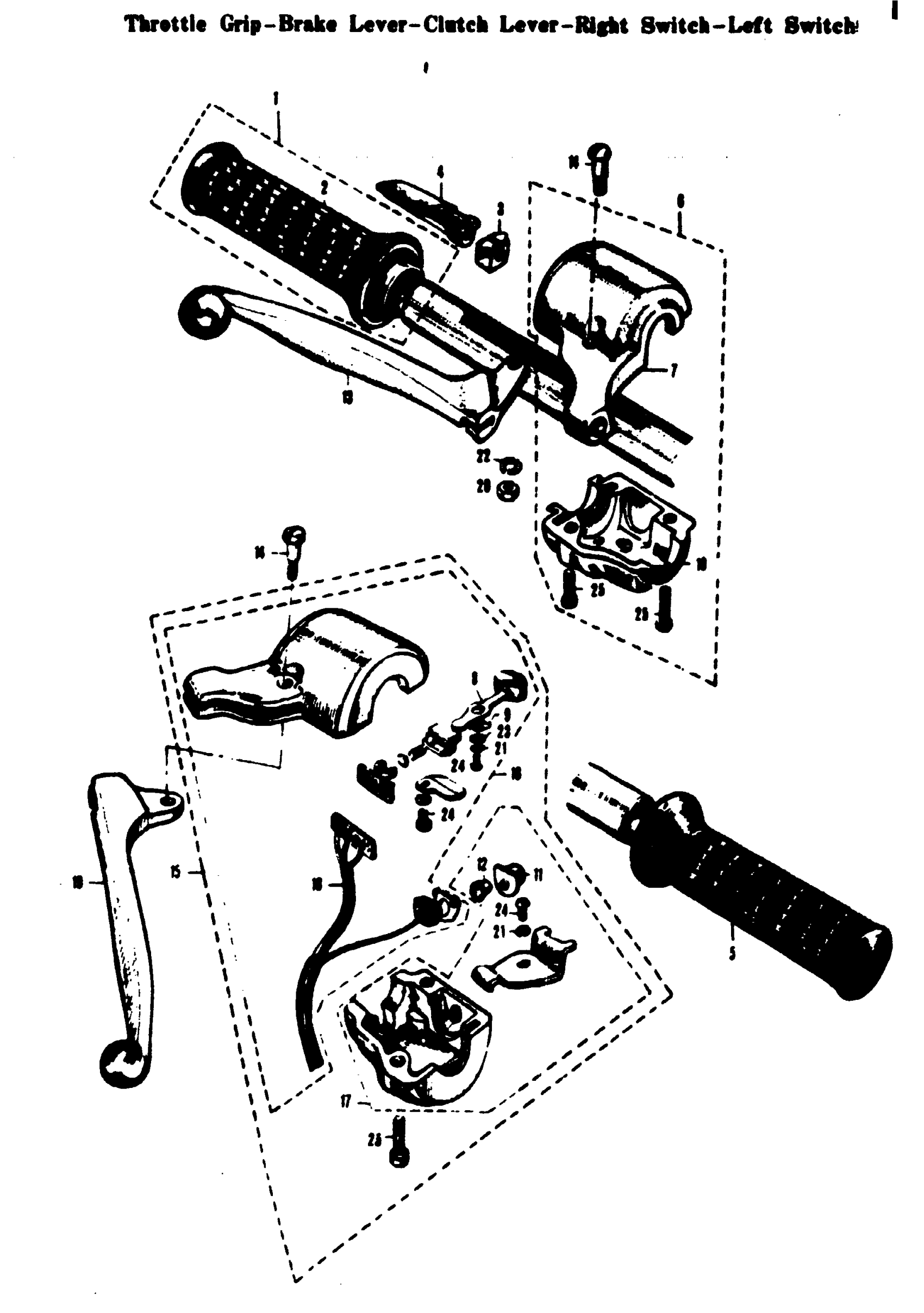

Suzuki 80K10 (1968) THRETTLE GRIP - BRAKE LEVER - CLUTCH LEVER - RIGHT SWITCH - LEFT SWITCH Diagram

#

Description
Price

1

THROTTLE GRIP COMP.

57111-01821

Unavailable

2

THROTTLE GRIP RUBBER

57111-50101

Unavailable

3

THROTTLE SLIDING PIECE STOPPE

57121-01010

Unavailable

4

THROTTLE SLIDING PIECE

57122-01011

Unavailable

5

LEFT GRIP

57211-50101

Unavailable

6

RIGHT SWICH ASS'Y | ISO

57301-01866

Unavailable

7

RIGHT SWICH UPPER COVER | ISO

57311-02601

Unavailable

8

DIMMER SWITCH KNOB

57320-01011

Unavailable

9

DIMMER SWICH KNOB SPRING WASH

57334-01010

Unavailable

10

RIGHT SWITCH LOWER COVER

57361-01010

Unavailable

11

SWITCH PUSH BUTTON

57370-01311

Unavailable

12

SWITCH PUSH BUTTON SPRING

57382-01311

Unavailable

13

BRAKE LEVER

57421-01010

Unavailable

14

LEVER PIVOT BOLT | ISO

57431-07601

Unavailable

14

LEVER PIVOT BOLT

57431-07600

Unavailable

15

LEFT SWITCH ASS'Y | ISO

57501-07827

Unavailable

16

LEFT SWITCH UPPER COVER ASS'Y | ISO

57501-03700

Unavailable

17

LEFT SWITCH LOWER COVER ASS'Y | ISO

57502-01602

Unavailable

18

DIMMER SWITCH WIRING HARNESS

57540-03710

Unavailable

19

CLUTCH LEVER

57621-03010

Unavailable

20

NUT This part replaces 08311-11058.

08310-00057

$1.84

20

HEXAGON NUT

08311-11051

Unavailable

21

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

WASHER This part replaces 08322-21038.

08322-01037

$1.93

24

SWITCH BOX SCREW | ISO

09125-03103

Unavailable

24

SWITCH BOX SCREW

09125-03003

Unavailable

25

SCREW,5X22 | ISO This part replaces 09125-05105.

09125-05105-XC0

$4.10
