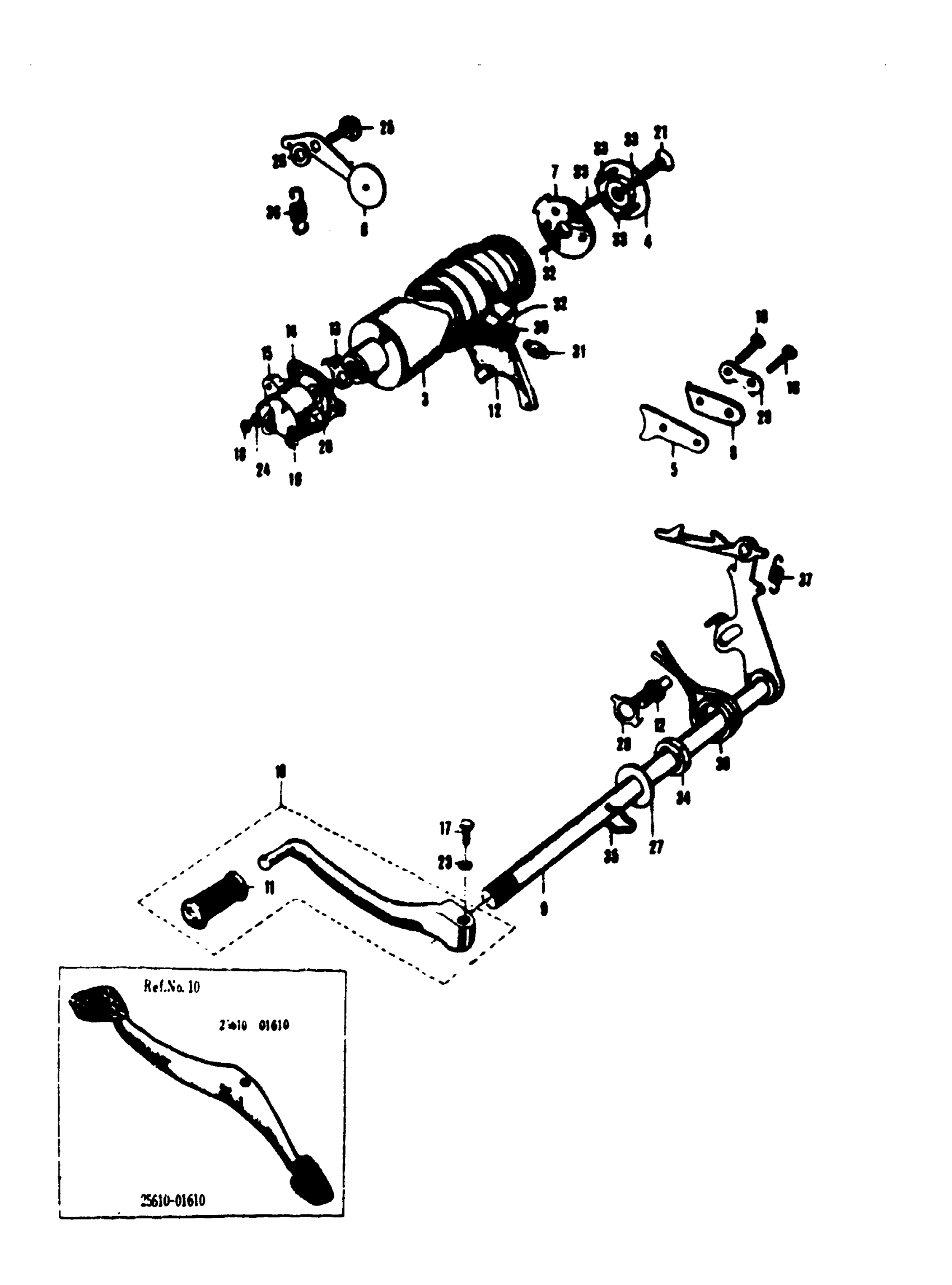

Suzuki 80K10 (1968) SHIFTING CUM - SHIFTING SHAFT - NEUTRAL INDICATOR SWITCH Diagram

#

Description
Price

1

GEAR SHIFTING FORK

25211-03000

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 25221-03600.

25221-03601

Unavailable

3

SHIFTING CAM

25311-03600

Unavailable

4

RETAINER, DRIVE PIN This part replaces 25322-03000.

25322-46000

$7.77

5

SHIFTING CAM GUIDE

25341-03000

Unavailable

6

SHIFTING CAM STOPPER

25350-03600

Unavailable

7

SHIFTING CAM SIDE PLATE

25361-03600

Unavailable

8

SHIFTING CAM STOPPER PLATE

25362-03600

Unavailable

9

SHIFTING SHAFT COMP

25510-03002

Unavailable

10

GEAR SHIFTING LEVER ASSY

25600-01602

Unavailable

10

GEAR SHIFTING LEVER

25610-01610

Unavailable

11

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-03201.

25652-16510

$3.74

12

SHIFTING ARM STOPPER

25671-03000

Unavailable

13

CONTACT, SWITCH This part replaces 37711-01000.

37711-05101

$4.21

14

NEUTRAL INDICATOR SWITCH GASK

37712-01000

$2.22

15

BODY,CHANGE SWI | ISO This part replaces 37721-05100.

37721-05101

$10.34

16

HEXAGON BOLT

01111-06168

Unavailable

17

BOLT This part replaces 01112-06208.

01500-06207

$2.28

18

CROSS HEAD SCREW

02111-03068

Unavailable

18

CROSS HEAD SCREW

02111-03061

Unavailable

19

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

19

CROSS HEAD SCREW

02111-04161

Unavailable

20

CROSS HEAD SCREW

02121-06128

Unavailable

21

CROSS HEAD SCREW

02121-06208

Unavailable

22

CITTER PIN This part replaces 04111-25206.

04111-2520A

$1.49

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER This part replaces 08322-21038.

08322-01037

$1.93

25

SHIFTING CAM STOPPER BOLT

09111-06003

Unavailable

26

SHIFTING CAM STOPPER WASHER | O.D.=13(0.51) I.D.=6.5(0.0(0.04)

09160-06008

Unavailable

27

SHIFTING SHAFT THREAT WASHER | O.D.=25(0.98) I.D.=12.5(0.5(0.06)

09100-12020

Unavailable

28

SHIFTING ARM STOPPER FOLDING | O.D.=14(0.55) I.D.=10(0.3 O.D.=14(0.55) I.D.=10(0.3(0.06)

09167-10001

Unavailable

29

SHIFTING CAM GUIDE WASHER

09100-06003

Unavailable

30

ROLLER This part replaces 09180-06004.

09180-06086

$2.50

31

GEAR SHIFTING FORK GUIDE

09209-10003

Unavailable

32

SHIFTING CAM PIN | O.D.=4(0.16) L.=13.8(0.54

09261-04003

Unavailable

32

ROLLER (4X13.8)

09261-04002

$1.72

33

SHIFTING CAM PIN | O.D.=4(0.16) L.=20(0.79)

09261-04003

Unavailable

34

OIL SEAL (12X22X9) | O.D.=22 (0.87) I.D.=11 (0.(0.28) This part replaces 09285-12001.

09285-12006

$6.32

35

CIRCLIP This part replaces 09384-12001.

08331-3112A

$1.78

36

SHIFTING CAM STOPPER SPRING

09443-07000

Unavailable

37

SHIFTING PAWL RETURN SPRING

09443-07006

Unavailable
