REAR SWINGING ARM-REAR SHOCK ABSORBER

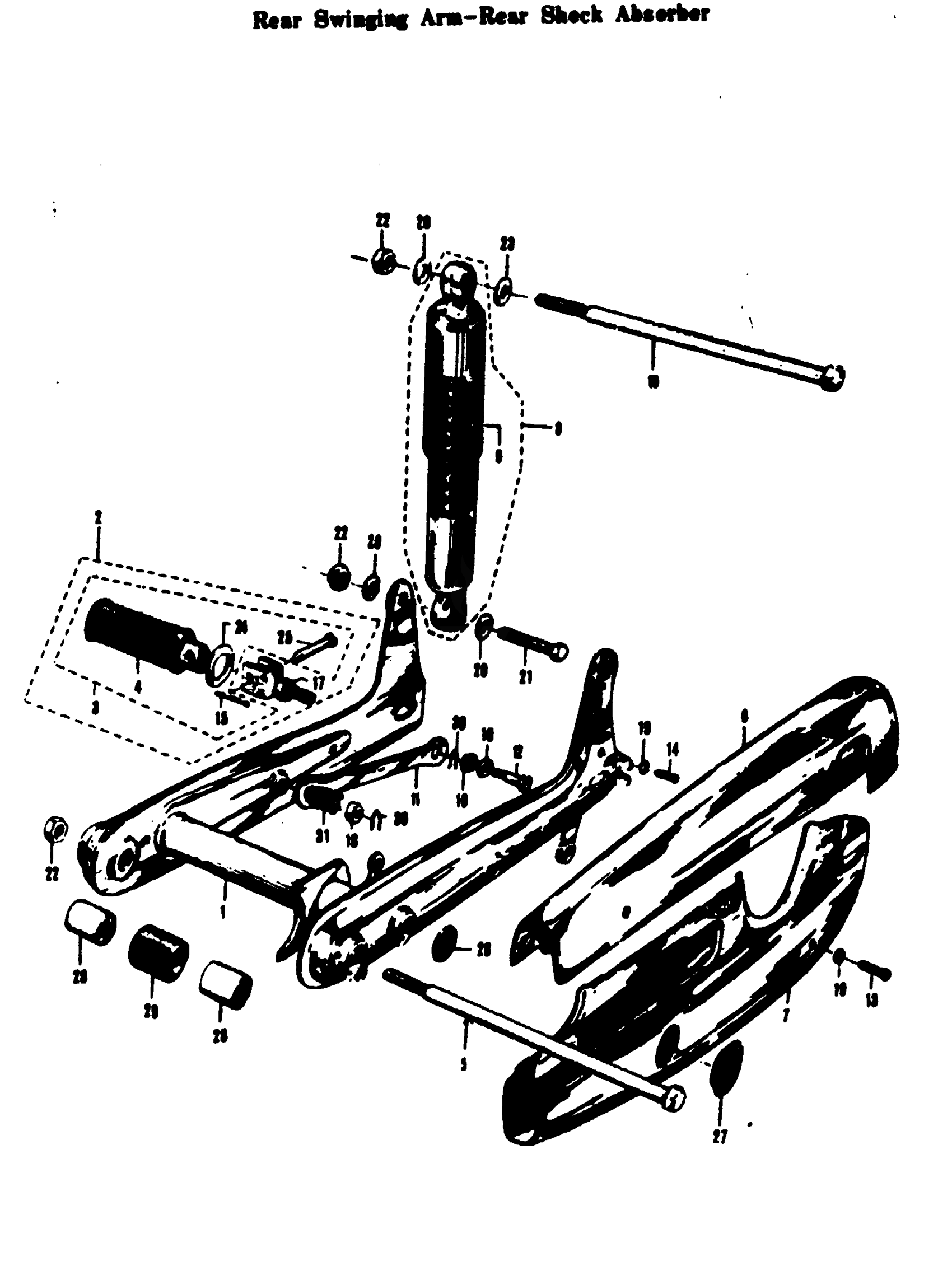

Suzuki 80K10 (1968) REAR SWINGING ARM-REAR SHOCK ABSORBER Diagram
#
Description
Price
1
REAR SWINGING ARM COMP. | REF.NO.20
00021-06112
Unavailable
2
REAR FOOTREST ASS'Y
43600-03000
Unavailable
3
FOLDING FOOTREST RUBBER ASS'Y
43600-03805
Unavailable
4
FOLDING FOOTREST RUBBER
43610-03000
Unavailable
5
REAR SWINGING ARM PIVOT SHAFT | CHROME-PLATED O.D.=10(0.3(9.50)
61211-01001
Unavailable
6
CHAIN CASE UPPER HALF
61310-01002
Unavailable
7
CHAIN CASE LOWER HALF
61320-01001
Unavailable
8
REAR SHOCK ABSORBER ASS'Y | ATED
62100-01603
Unavailable
9
REAR SHOCK ABSORBER SPRING | =31(1.22) I.D.=21(0.83) L.92)
62211-01701
Unavailable
10
REAR SHOCK ABSORBER UPPER SHA | ME-PLATED O.D.=10(0.39) L.ME-PLATED O.D.=10(0.39) L.)
62311-03001
Unavailable
11
REAR TORQUE LINK
64310-01000
Unavailable
12
REAR TORQUE LINK BOLT
64331-01000
Unavailable
13
CROSS HEAD SCREW
02111-06068
Unavailable
14
CROSS HEAD SCREW
02111-06108
Unavailable
15
COTTER PIN
04111-20188
Unavailable
21
REAR SHOCK ABSORBER LOWER BOL | O.D.=10(0.39) L.=40(1.57)
09100-10019
Unavailable
22
REAR SHOCK ABSORBER NUT | CHROME-PLATED
09140-10001
Unavailable
23
REAR SHOCK ABSORBER UPPER WAS | O.D.=20(0.78) I.D.=10.5(0. O.D.=20(0.78) I.D.=10.5(0.2(0.13)
09160-10005
$1.87
24
WASHER | O.D.=30(1.18) I.D.=19.5(0 O.D.=30(1.18) I.D.=19.5(0.3(0.09) This part replaces 09160-19004.
09160-19024
$2.65
25
FOLDING FOOTREST RUBBER FITTI | O.D.=6(0.24) L.=31(1.22) O.D.=6(0.24) L.=31(1.22)
09200-06010
$1.72
28
REAR SWINGING ARM SHOCK DAMPE
09319-10003
Unavailable
29
REAR PIVOT SHAFT HOUSING BUFF
09320-22001
Unavailable
