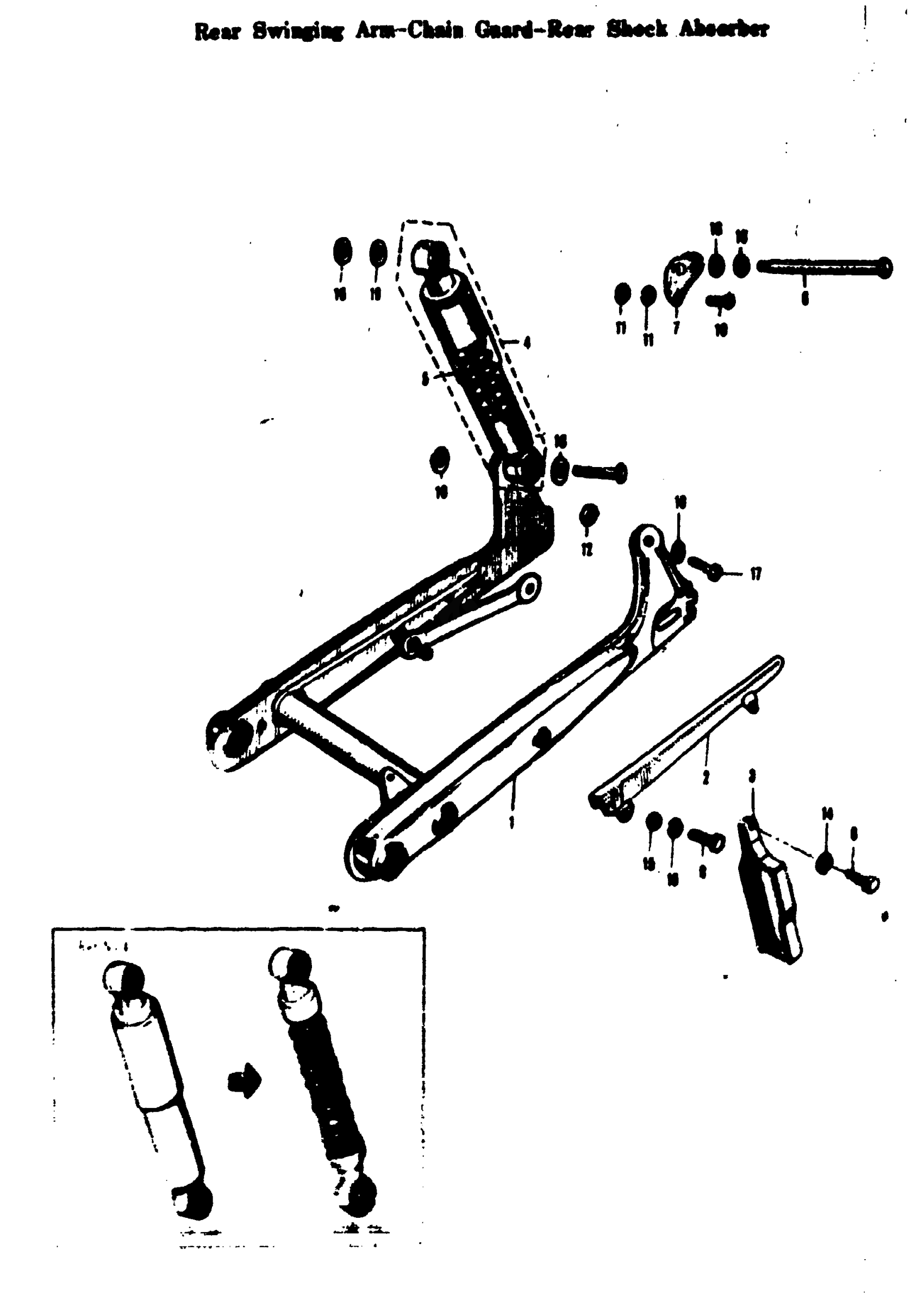

Suzuki 80K10 (1968) REAR SWINGING ARM - CHAIN GUARD - REAR SHOCK ABSERBER Diagram

#

Description
Price

1

REAR SWINGING ARM ASS'Y | 09319-10003 (MA6123)

00022-40611

Unavailable

2

DRIVE CHAIN GUARD | HINE

61310-03600

Unavailable

3

DRIVE CHAIN GUIDE

61340-03611

Unavailable

4

REAR SHOCK ABSORBER ASS'Y

62100-01612

Unavailable

4

REAR SHOCK ABSORBER ASS'Y | TED UP TO E.NO.K10-216887

62100-01603

Unavailable

5

REAR SHOCK ABSORBER SPRING | ME-PLATED I..=2213(8.71)

62211-01611

Unavailable

5

REAR SHOCK ABSORBER SPRING | O E.NO.P10-216802

62211-01701

Unavailable

6

REAR SHOCK ABSORBER UPPER SHA

62311-03601

Unavailable

7

REAR SHOCK ABSORBER LEFT FITT

62421-01600

Unavailable

8

HEXAGON BOLT

01111-06127

Unavailable

9

BOLT This part replaces 01111-10168.

01500-10167

$3.85

10

CROSS HEAD SCREW

02131-06187

Unavailable

11

NUT This part replaces 08311-31088.

08310-00087

$2.13

12

NUT This part replaces 08311-31108.

08310-00107

$2.19

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

WASHER This part replaces 08322-21108.

08322-01107

$2.15

17

REAR SHOCK ABSORBER LEFT LOWE

09104-10002

$3.55
