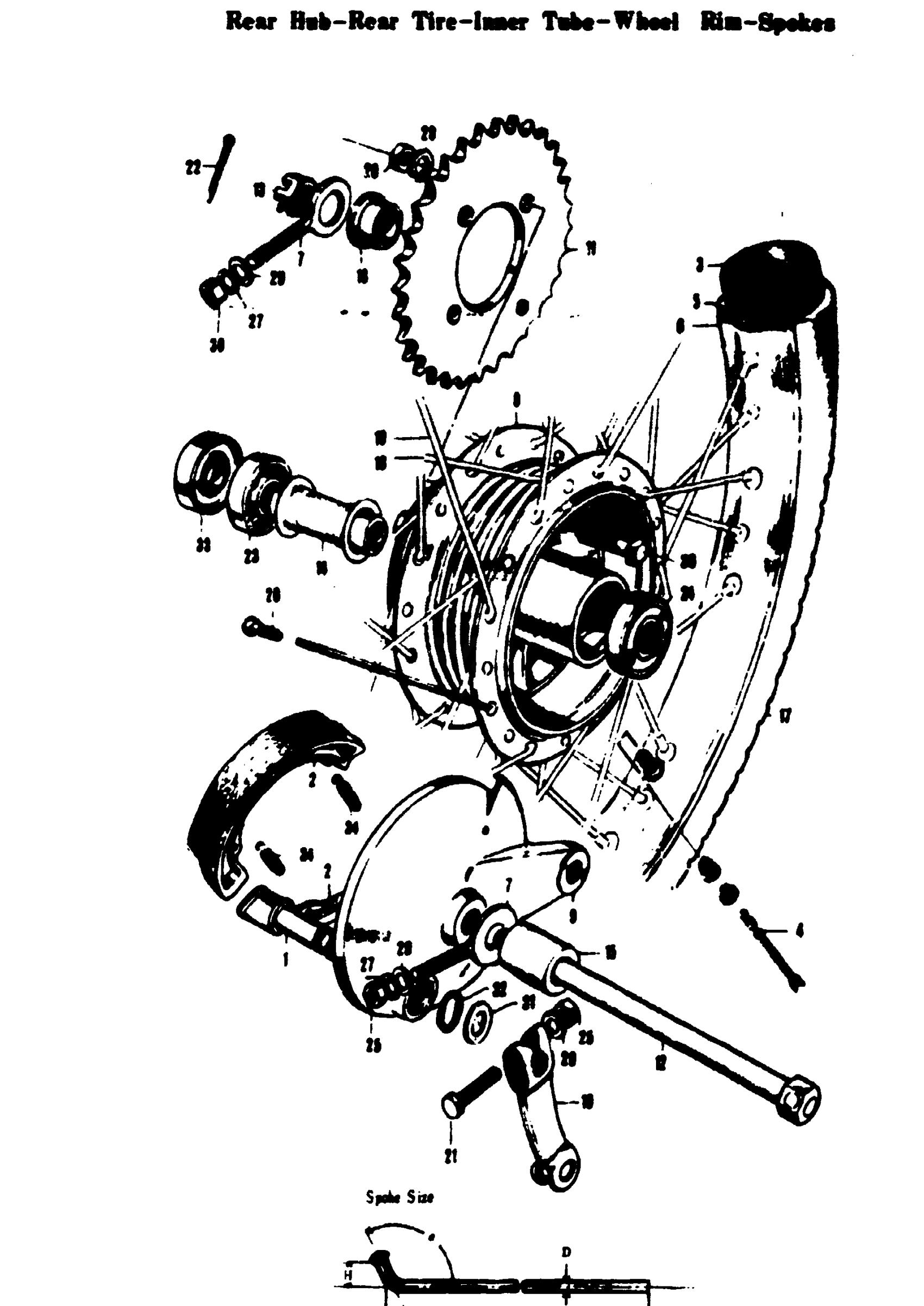

Suzuki 80K10 (1968) REAR HUB - REAR TIRE - INNER TUBE - WHEEL RIM-SPOKES Diagram

#

Description
Price

0

REAR HUB ASS'Y | UDES REF. NOS. 1,2,8,9,10,29, 30 & 34

64002-01860

Unavailable

1

BRAKE CAM SHAFT

54441-01000

Unavailable

2

BRAKE SHOE

54410-01002

Unavailable

3

INNER TUBE | =2.50"-17" INCLUDES REF.

55200-03600

Unavailable

4

INNER TUBE VALVE

55250-01000

Unavailable

5

PROTECTOR, INNER TUBE | SIZE-2.25'-17' This part replaces 55261-01010.

55261-02B40

$6.88

6

WHEEL RIM | SIZE-1.40'x17'

55311-07020

$89.05

6

SPOKE ASSY REAR | INCLUDES REF. NOS. 18,19 This part replaces 65300-03817.

65320-46730

Unavailable

7

ADJUSTER, CHAIN This part replaces 61411-01001.

61411-01002

$7.37

8

REAR HUB DRUM

64110-50005

Unavailable

9

REAR HUB PANEL

64210-01603

Unavailable

10

REAR BRAKE CAM LEVER

64451-01602

Unavailable

11

REAR SPROCKET | DARD N T. =30

64511-01770

Unavailable

11

REAR SPROCKET | ONAL N.T. =28

64511-01711

Unavailable

11

SPROCKET, REAR | ONAL N.T. =32 This part replaces 64511-01780.

64511-27750

Unavailable

12

REAR AXIE | CHROME PLATED

64710-01970

Unavailable

13

REAR AXIE NUT | CHROME PLATED

64721-50002

Unavailable

14

REAR HUB BEARING SPACER

64730-50000

Unavailable

15

REAR AXIE RIGHT SPACER

64741-01601

Unavailable

16

REAR AXIE LEFT SPACER

64772-50001

Unavailable

17

REAR TIRE | =2.50"-17" 4 PR

65100-03010

Unavailable

18

REAR INNER SPOKE | D = 3.2(0.13) L. = 161(6.34) H = 6.7 (0.26)

65321-03020

Unavailable

19

REAR OUTER SPOKE | D.= 3.2 (0.13) L.=160.5=83'30' H.= 8.3(0.33)

66322-03020

Unavailable

20

REAR SPOKE NIPPLE

66325-03020

Unavailable

21

HEXAGON BOLT

01111-06308

Unavailable

22

CARTER PIN

04111-20258

Unavailable

23

BALL BEARING

08113-63010

$19.57

24

B1 12X37X12 BEA | ARING This part replaces 08143-63010.

08143-6301B

$19.20

25

.NUT This part replaces 08311-11068.

08310-00067

$2.13

26

NUT This part replaces 08312-31088.

08310-00087

$2.13

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

29

WASHER This part replaces 08322-21068.

08322-01067

$2.13

30

REAR SPROCHET BELT

09105-08001

$2.06

31

BRAKE CAM SHAFT DUST SEAL | O.D.=20(0.79) I.D.=12.5(0.49) T.=

09160-12011

$1.54

32

BRAKE CAM SHAFT DUST SEAL

09280-12001

$2.90

33

HUB DRUM OIL SEAL | O.D.=37(1.45) I.D.=18(0.7

08283-18001

Unavailable

33

HUB DRUM OIL SEAL | .24)

09283-18001

Unavailable
