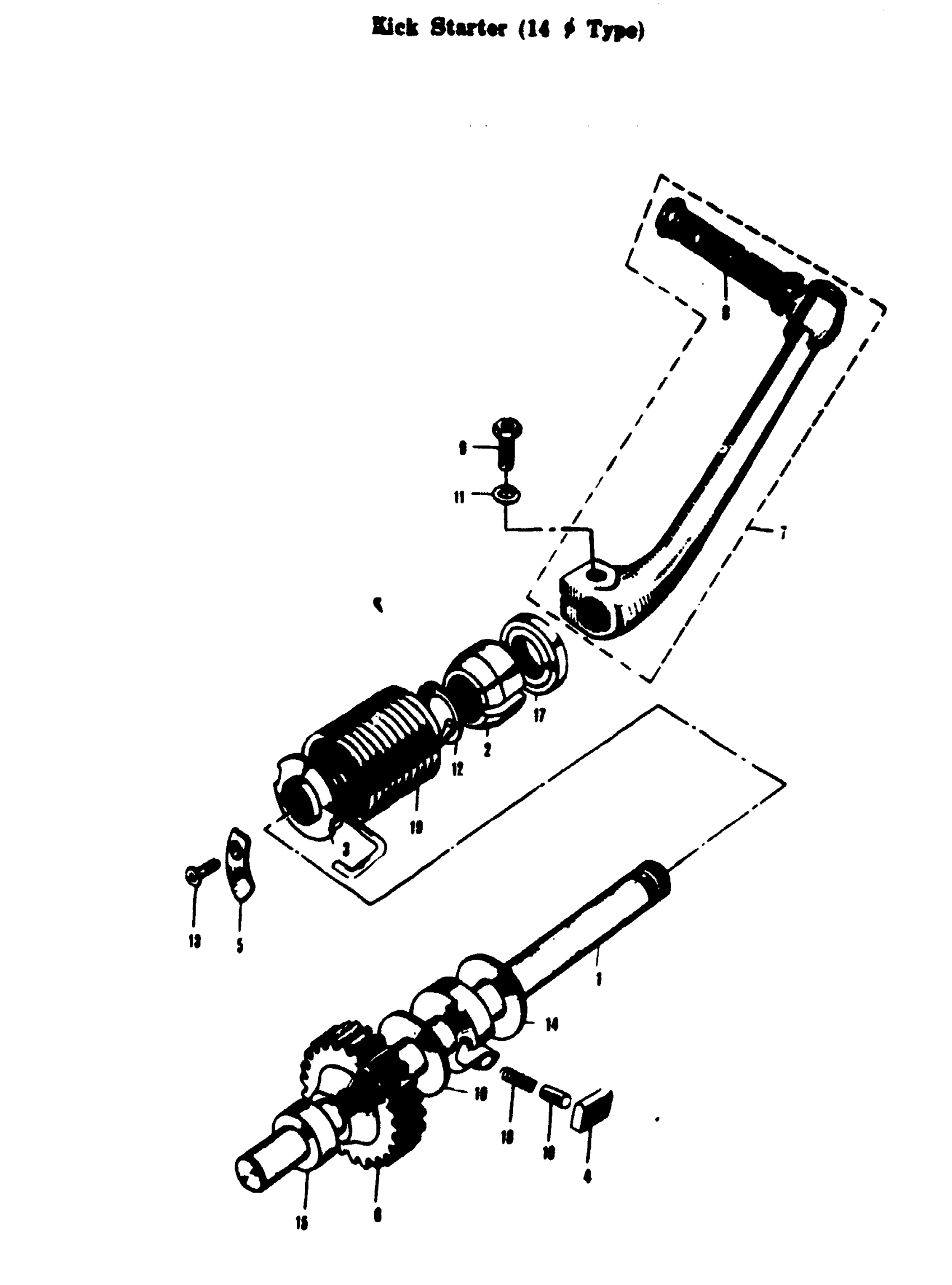

Suzuki 80K10 (1968) KICK STARTER (14 TYPE) Diagram

#

Description
Price

1

KICK STARTER SHAFT

26211-03001

Unavailable

2

GUIDE, RETURN SPRING This part replaces 26221-01001.

26221-01030

Unavailable

3

KICK STARTER SHAFT RETURN SPR

26222-01001

Unavailable

4

KICK STARTER SHAFT PAWL

26231-01000

Unavailable

5

KICK STARTER STOPPE

26232-01000

$6.38

6

KICK STARTER PINION | N.T.=32

26241-03000

Unavailable

7

LEVER ASSY,KICK | ATED This part replaces 26300-03002.

26300-35553

Unavailable

8

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

9

BOLT This part replaces 01112-06207.

01500-06207

$2.28

10

KICK STARTER SHAFT THROST WAS

08211-12302

$2.16

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

CIRCLIP, SHIFT SHAFT This part replaces 08331-11149.

08331-3114A

$1.91

13

KICK STARTER STOPPER SCREW

09129-06002

Unavailable

14

WASHER (14X29X1.5) | O.D.=29(1.14) I.D.=14(0.5 O.D.=29(1.14) I.D.=14(0.5(0.06) This part replaces 09160-14005.

09160-14046-XC0

$4.83

15

KICK STARTER PINION SPACER

09180-12015

Unavailable

16

KICK STARTER SHAFT PAWL ROLLE

09202-05004

Unavailable

17

OIL SEAL (14X24X6) | O.D.=34(0.94) I.D.=14(0.5 O.D.=34(0.94) I.D.=14(0.5 This part replaces 09285-14001.

09285-14002

$16.88

18

KICK STARTER SHAFT PAWL SPRIN

09440-04003

$1.54

19

KICK STARTER SHAFT RETURN SPR

09448-38001

Unavailable
