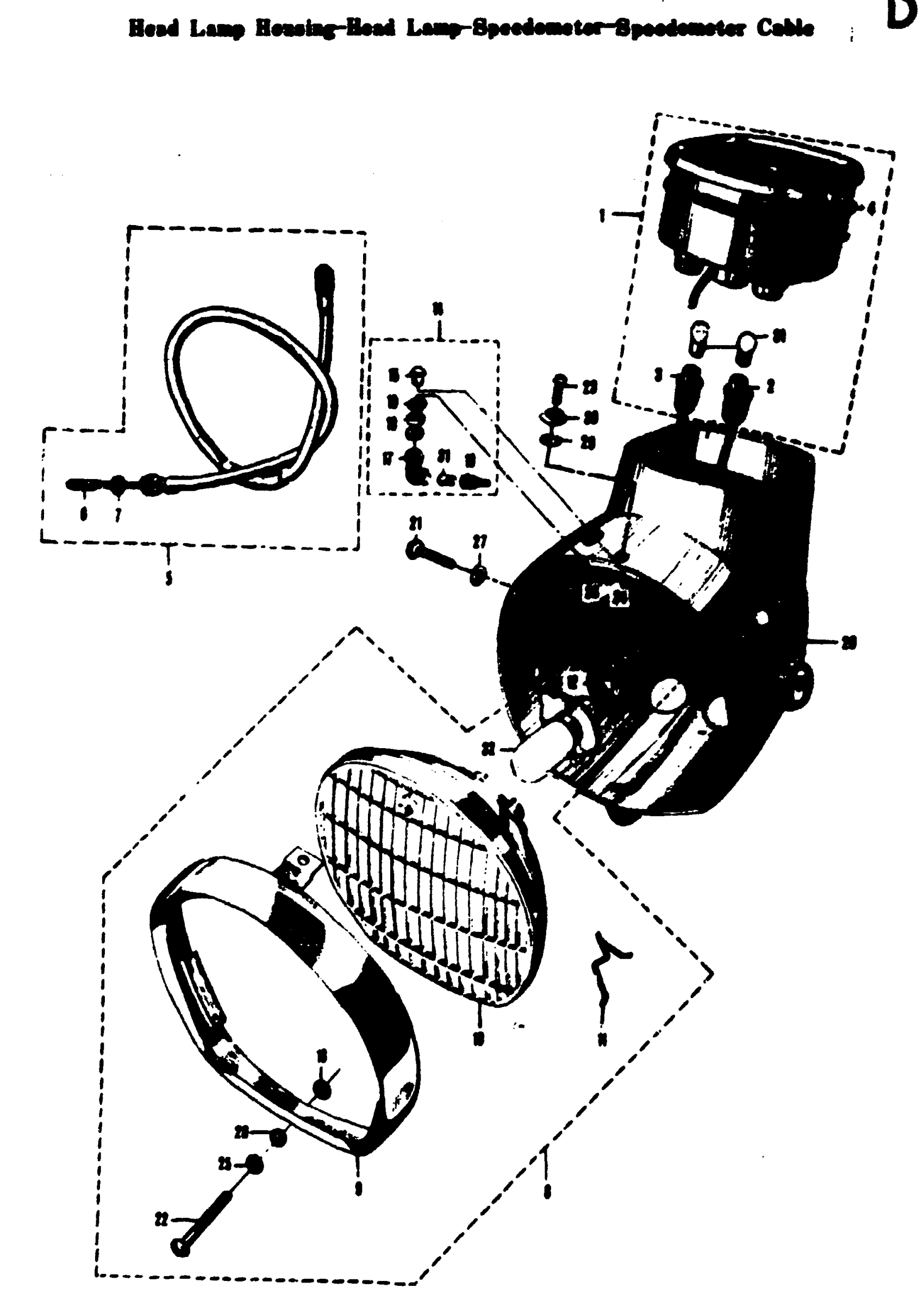

Suzuki 80K10 (1968) HEAD LAMP HOUSING - HEAD LAMP - SPEEDOMETER - SPEEDOMETER CABLE Diagram

#

Description
Price

1

PEEDOMETER ASS'Y | ISO

34001-03846 S

Unavailable

2

SPEEDOMETER LAMP SOCKET

34173-01010

Unavailable

3

NATURAL INDICATOR LAMP SOCKET

34179-01010

Unavailable

4

SPEEDOMETER GASHET

34181-01010

Unavailable

5

SPEEDOMETER CABLE ASS'Y

34910-05030

Unavailable

6

SPEEDOMETER INNER CABLE

34911-03032

Unavailable

7

SPEEDOMETER CABLE OIL SEAL

34928-01030

$2.92

8

HEAD LAMP ASS'Y | ISO

35100-03612

Unavailable

9

HEAD LAMP RIM | ISO

35111-03611

Unavailable

10

HEAD LAMP LENS UNIT

35121-03610

Unavailable

11

HEAD LAMP SPRING CLAMP

35128-03611

Unavailable

12

HEAD LAMP SOCKET

35171-03611

Unavailable

13

HEAD LAMP RUBBER WASHER | O.D.=9.0(0.3@) I.D. = 4.@=7.5(0.30)

35189-03611

Unavailable

14

HIGH BEAM INDICATOR LAMP ASS' | 6V. 1.5W

36330-02610

Unavailable

15

HIGH BEAM INDICATOR LAMP LENS

36331-01610

Unavailable

16

HIGH BEAM INDICATOR BULB LENS | UT

36332-01610

Unavailable

17

HIGH BEAM INDICATOR LAMP HOLD

36334-01610

Unavailable

18

HIGH BEAM INDICATOR LAMP SOCH

36335-01610

Unavailable

19

HIGH BEAM INDICATOR LAMP LENS

36337-01610

Unavailable

20

HEAD LAMP HOUSING | ISO, LIGHT BLUE

51810-03601-002

Unavailable

20

HEAD LAMP HOUSING | ISO BLACK

51810-03601-019

Unavailable

20

HEAD LAMP HOUSING | ISO PUMPER ROD

51810-03601-061

Unavailable

20

HEAD LAMP HOUSING | ISO. PURE WHITE

51810-03601-064

Unavailable

20

HEAD LAMP HOUSING | ISO. LIGHT PERMANENT BLUE

51810-03601-075

Unavailable

21

BOLT This part replaces 01221-08257.

01204-08257

$1.96

22

CROSS HEAD SCREW

02111-06208

Unavailable

22

SCREW This part replaces 02111-05201.

02112-05207

$1.97

23

SCREW This part replaces 02111-04127.

02112-0412A

$1.49

23

CROSS HEAD SCREW

02111-04122

Unavailable

24

NUT This part replaces 08312-11088.

08310-00087

$2.13

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

WASHER This part replaces 08322-11087.

08322-01087

$2.13

28

WASHER This part replaces 08322-21058.

08322-01057

$2.13

29

HEAD LAMP RIM FITTING SCREW G | O.D.=12.5 0.49 I.D.=4.2 0 O.D.=12.5 0.49 I.D.=4.2 0.0.01

09161-04005

Unavailable

30

HEAD LAMP RIM FITTING WASHER | O.D.=11.5 0.45 I.D.=4.5 0.0.01

09165-04004

$1.93

31

SPEEDOMETER LAMP BULB | 5V. 1.5W

09471-06001

$2.18
