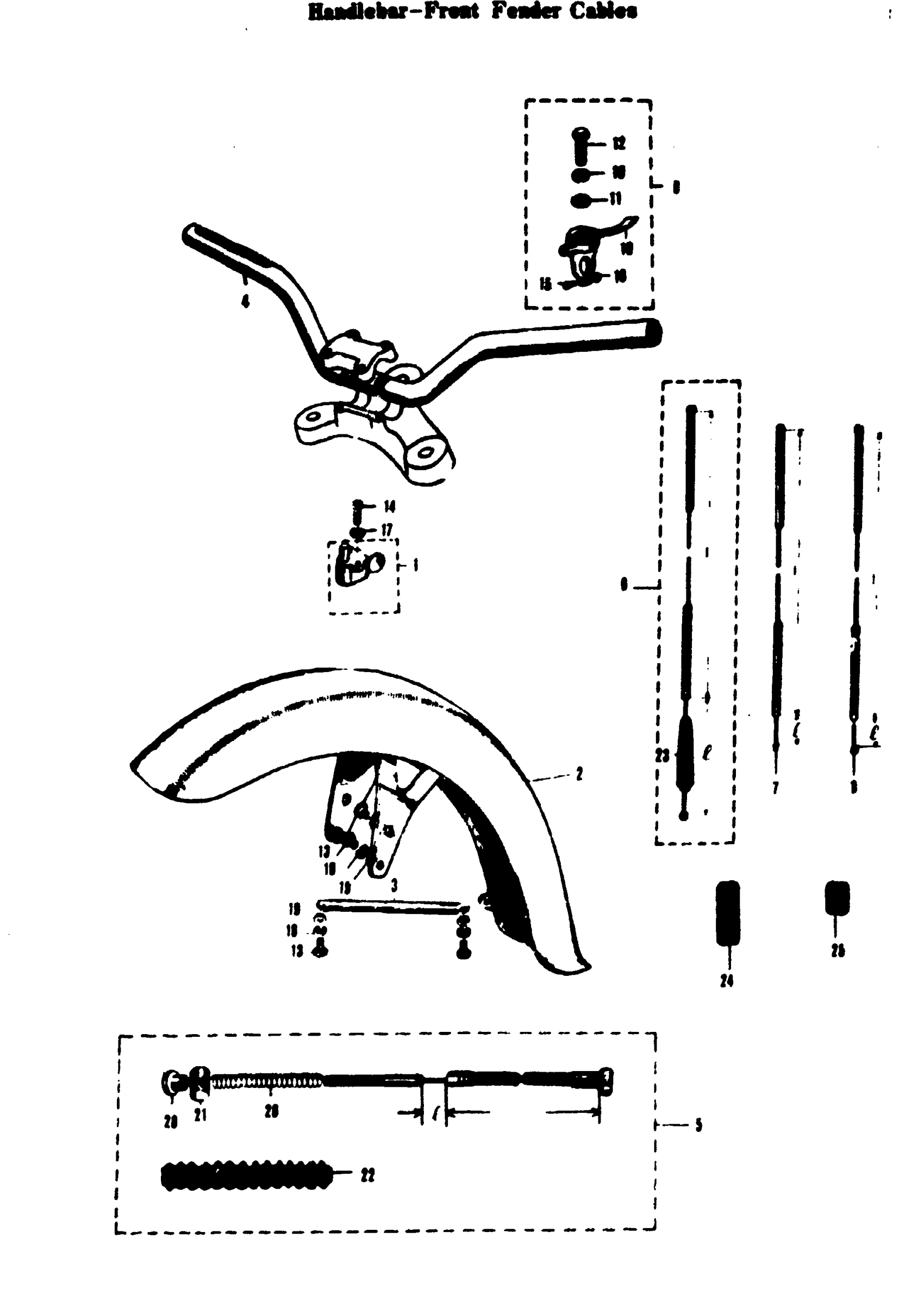

Suzuki 80K10 (1968) HANDLEBAR - FRONT FENDER - CABLES Diagram

#

Description
Price

1

HEAD LOCK ASS'Y

51900-03012

Unavailable

2

FRONT FENDER

53110-03000

Unavailable

3

FRONT FENDER BRACE

58210-03970

Unavailable

4

HANDLEBAR | -WESTERN

56111-03962

Unavailable

5

BRAHE CABLE ASS'Y | L,=906(37.01, T.=40 (1.57

58100-03002

Unavailable

6

CHACH CABLE ASS'Y | 860 (33.86) T.= 84(3.31)

58200-03001

Unavailable

7

THROTTLE CABLE | L.=130(32.68) T.=66(2.56)

58310-03900

Unavailable

8

THROTTLE CABLE | 60(29.92)T.=66 2 60 UP TO0-326363 AFTER

58410-03000

Unavailable

8

STARTER CABLE | 85(31.69) T.=06 (2.60) FRO10-326364 UP TO E.NO.K10-3

58410-03620

Unavailable

9

STARTER LEVER ASS'Y | ISO

58700-03010

Unavailable

10

STARTER LEVER

58721-03010

Unavailable

11

.WASHER (6.5X16X1) | O.D.=16 10.63 I.D.=6.5 0.(0.04) This part replaces 58723-03010.

09160-06129

$2.30

12

HEXAGON BOLT

01111-06127

Unavailable

13

BOLT This part replaces 01211-06127.

01204-06127

$2.07

14

CROSS HEAD SCREW

02111-05128

Unavailable

14

CROSS HEAD SCREW

02111-05121

Unavailable

15

CROSS HEAD SCREW

02111-06168

Unavailable

15

CROSS HEAD SCREW

02111-05161

Unavailable

16

.NUT This part replaces 08311-11068.

08310-00067

$2.13

16

HEXAGON NUT

08311-11051

Unavailable

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

19

WASHER This part replaces 08322-21088.

08322-01087

$2.13

20

BRAKE CAM ADJUSTING NUT | ISO

09150-06101

Unavailable

20

BRAKE CAM ADJUSTING NUT

09150-05001

Unavailable

21

BRAKE CAM LEVER PIN

09209-10001

$1.49

22

BRAKE CABLE BOOT

09287-07001

$2.00

23

CLUTCH CABLE BOOT

09287-10002

Unavailable

24

CABLE HOLDING CLIP | 15; 1 PC FLAT HANDLEBAR 2 PCESTERNERNHANDLEBAR

09408-00001

Unavailable

25

SPEEDOMETER/BRAKE CABLE CLIP

09408-00002

$2.30

26

BRAKE CABLE SPRING | O.D.=6.9 0.27 I.D.=5.1 0.

09440-06003

$2.44
