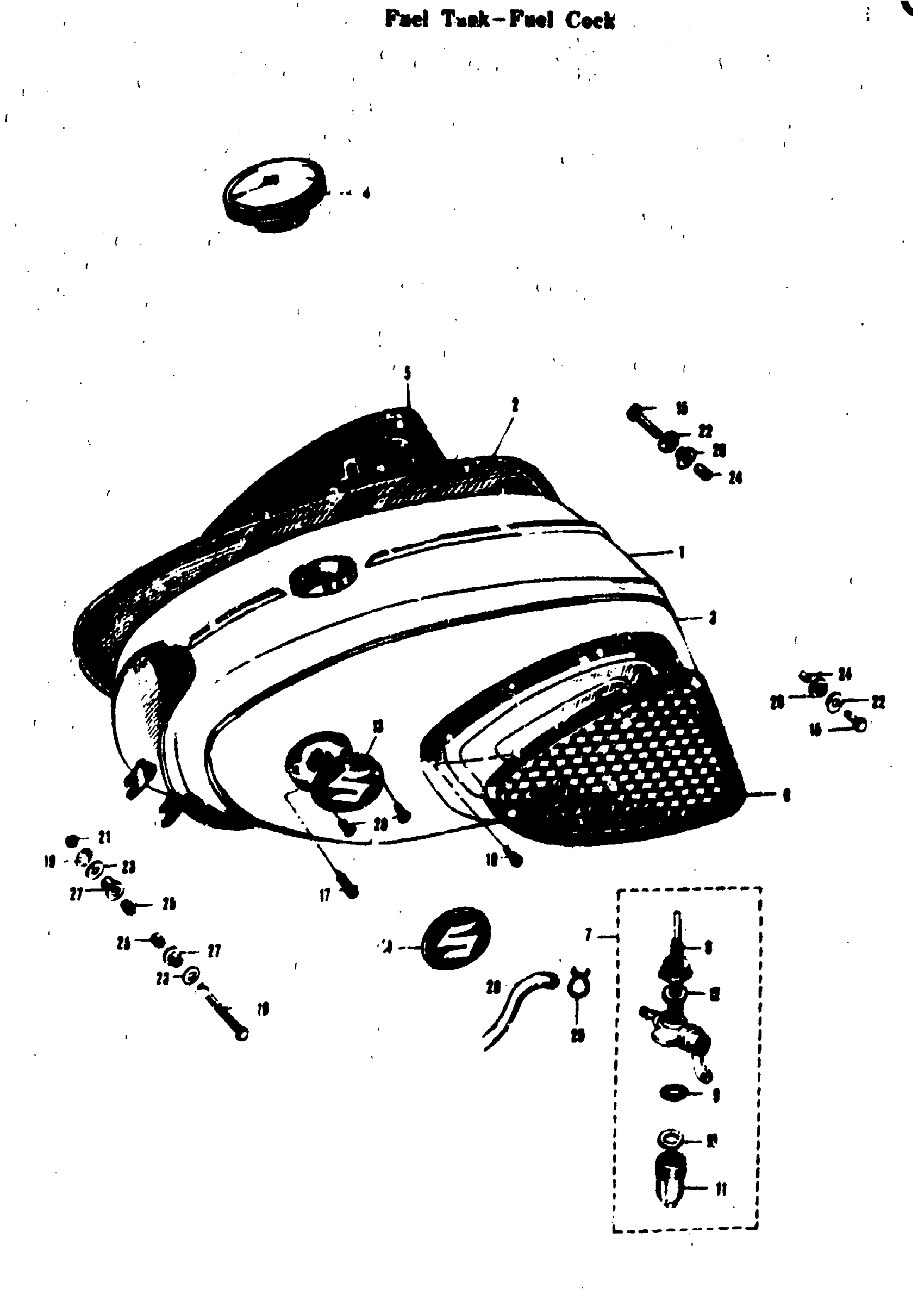

Suzuki 80K10 (1968) FUEL TANK--FUEL COCK Diagram

#

Description
Price

1

FUEL TANK | ISO

44110-03002

Unavailable

2

FUEL TANK RIGHT SIDE COVER | ISO

44170-03971

Unavailable

3

FUEL TANK LEFT SIDE COVER | ISO

44180-03971

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 44210-03600.

44210-08001

Unavailable

5

RIGHT KNEE GRIP

44251-03000

Unavailable

6

LAK KNEE GRIP

44252-03000

Unavailable

7

COCK ASSY FUEL | ISO This part replaces 44300-01600.

44300-05115

Unavailable

8

LYEL PIPE STRAINER NET

44330-01021

Unavailable

9

STRAINER NET

44344-01021

Unavailable

10

FUEL COCK STRAINER CUP GASKET

44346-01020

Unavailable

11

FUEL COCK STRAINER CUP

44347-01600

Unavailable

12

FUEL COCK GASKET

44348-01020

Unavailable

13

FUEL TANK EMBLEM

68111-03000

Unavailable

14

FUEL TANK EMBLEM | 1 P TO E. NO. K 10-225764

68111-16000

Unavailable

15

HEXAGON BOLT

01111-06168

Unavailable

16

BOLT This part replaces 01221-08857.

01204-08857

Unavailable

17

CROSS HEAD SCREW

02111-06088

Unavailable

18

SCREW This part replaces 02141-05068.

09125-05117

$2.72

18

CROSS HEAD SCREW

02141-05061

Unavailable

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

FUEL TANK EMBLEM FITTING SCRE | ISO

09125-03101

Unavailable

20

FUEL TANK EMBLEM FITTING SCRE

09125-03001

Unavailable

21

FUEL TANK FRONT MOUNTING BOLT

09140-08001

Unavailable

22

WASHER, FRONT | O.D.=24 0.94 I. D.=6.5 0. This part replaces 09160-06004.

09160-06134

$1.91

22

| 0.06

09164-06004

Unavailable

23

WASHER (8.5X26X1.6) | CHROME - PLATED O.D. =6 1. =8.20.32 T.=1.6 10.06 This part replaces 09160-08005.

09160-08134

$2.03

24

FUEL TANK REAR MOUNTING SHOCK | O.D.=10 (0.39) I.D.=6.8 O.D.=10 (0.39) I.D.=6.8.=7 (0.28)

09180-08002

Unavailable

25

SPACER (8.5X12X11) | O.D.=12 0.47 .I.D.=3.8 0. O.D.=12 0.47 .I.D.=3.8 0.0.43 This part replaces 09180-08001.

09180-08189

$2.58

26

FUEL TANK REAR MOUNTING SHOCK | O.D.=24 0.94, I.D.=9.5, 0 O.D.=24 0.94, I.D.=9.5, 00.31

09320-09002

$1.98

27

FUEL TANK FRONT MOUNTING SHOC | O.D.=26.1.02, I.D.=11.5, O.D.=26.1.02, I.D.=11.5,12 0.47

09320-11008

$2.60

28

FUEL LINE | O.D.=8.2 0.32 I.D.=5 0.30.66)

09343-05001

Unavailable

29

FUEL LINE CLIP | I.D.=8 0.31

09386-08001

Unavailable

29

FUEL LINE CLIP | I.D.=7 (0.30) UP TO E.NO.

00014-10664

Unavailable
