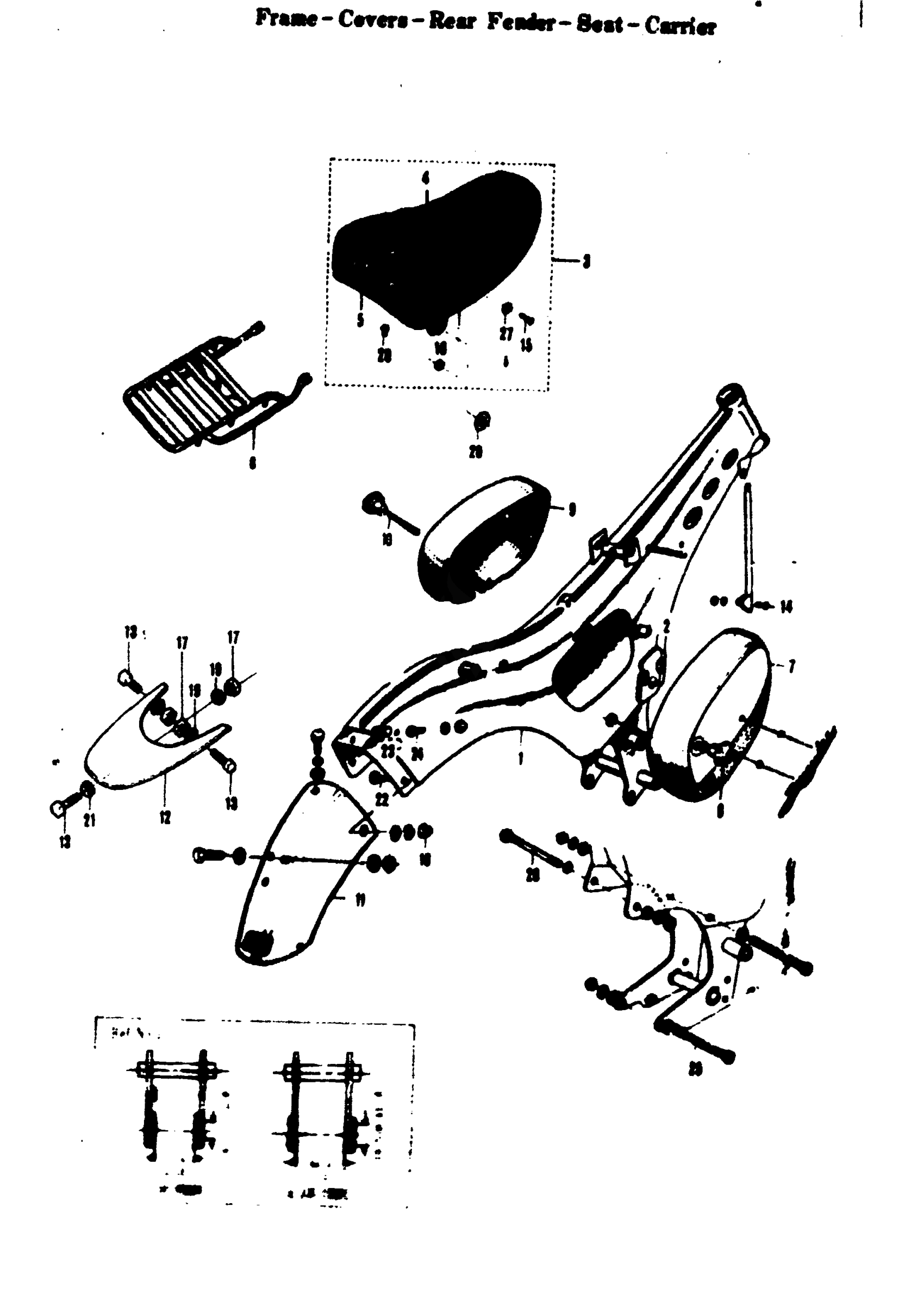

Suzuki 80K10 (1968) FRAME - COVERS - REAR FENDER - SEAT - CARRIER Diagram

#

Description
Price

1

FRAME

41100-03601

Unavailable

1

FRAME | NO. K10-326710

41100-03600

Unavailable

2

BATTERY HOLDER

41541-01000

Unavailable

3

SEMI-DUAL SEAT

45100-03601

Unavailable

4

SEAT LEATHER

45160-03601

Unavailable

5

SEAT RIM

45191-03600

Unavailable

6

CARRIER

46310-03601

Unavailable

7

FRAME RIGHT COVER

47111-07000

Unavailable

8

FRAME RIGHT COVER KNOB

47130-01000

Unavailable

9

FRAME LEFT COVER

47211-07000

Unavailable

10

FRAME LEFT COVER KNOB

47230-01000

Unavailable

11

REAR FENDER

63110-03621

Unavailable

12

REAR FENDER EXTENSION

63311-01200

Unavailable

13

BOLT This part replaces 01111-05088.

01112-05088

Unavailable

13

HEXAGON BOLT

01111-05081

Unavailable

14

BOLT This part replaces 01121-08408.

01500-0840A

$2.60

15

NO DESCRIPTION AVAILABLE This part replaces 02141-03208.

02142-03208

Unavailable

15

CROSS HEAD SCREW

02141-03201

Unavailable

16

NUT This part replaces 08311-11038.

08310-0003B

$2.83

16

HEXAGON NUT

08311-11031

Unavailable

17

NUT This part replaces 08311-11058.

08310-00057

$1.84

17

HEXAGON NUT

08311-11051

Unavailable

18

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

$1.84

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

WASHER This part replaces 08322-21108.

08322-01107

$2.15

21

WASHER This part replaces 08322-21058.

08322-01057

$2.13

22

REAR FENDER FITTING BOLT | CREW L.=12(0.47)

09100-06010

Unavailable

23

CARRIER LEFT FITTING BOLT | O.31)L.16(0.63

09100-08008

Unavailable

24

CARRIER RIGHT FITTING BOLT

09100-08008

Unavailable

24

CARRIER RIGHT FITTING BOLT | NO.K10-138537

09100-08007

Unavailable
