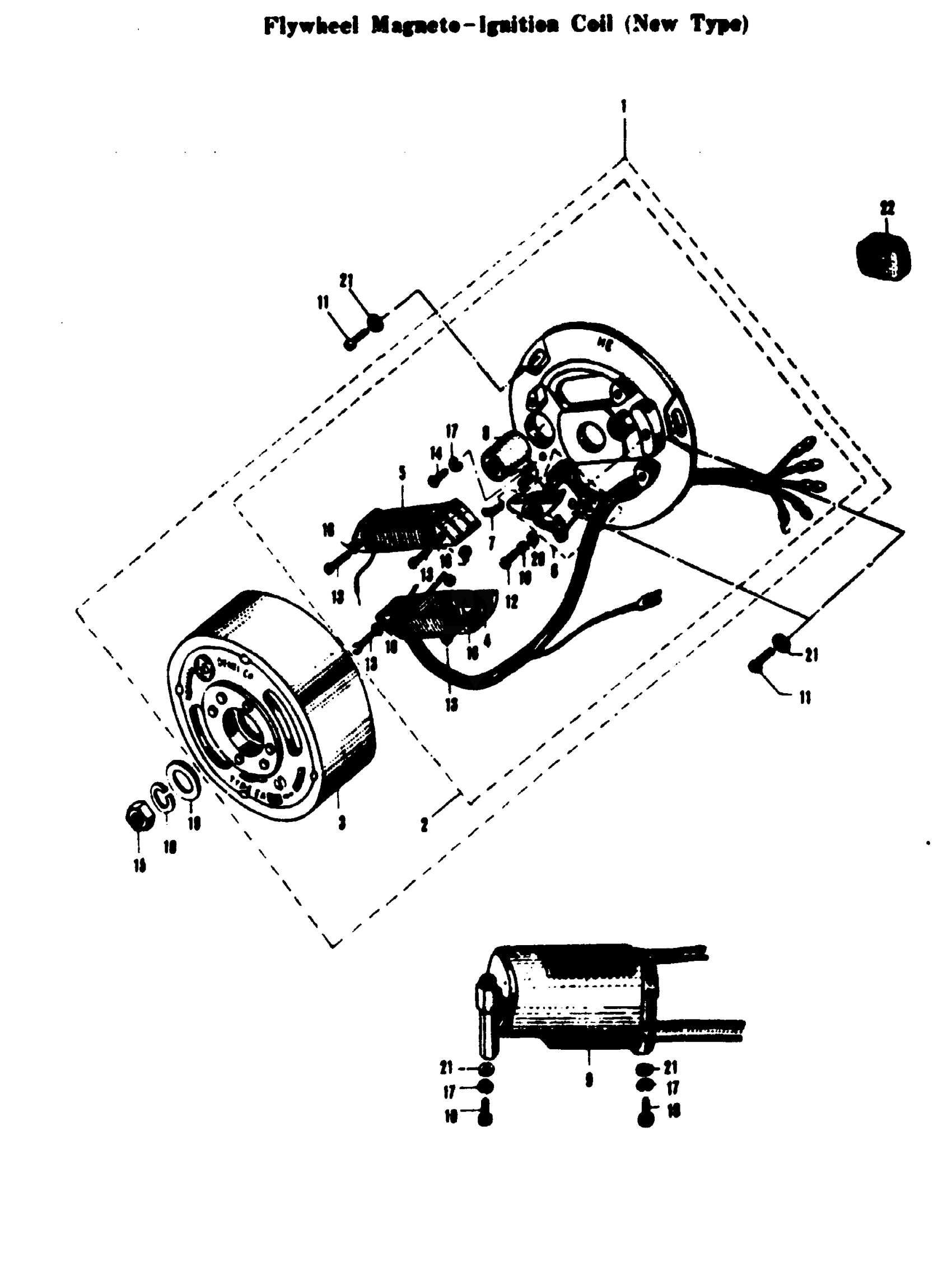

Suzuki 80K10 (1968) FLYWHEEL MAGNETO - IGNITION COIL (NEW TYPE) Diagram

#

Description
Price

1

FLYWHEEL MAGNETO ASS'Y | ISO. AFTER E.NO.K10-81070

32100-03022

Unavailable

2

STATOR ASS'Y | ISO

32101-03021

Unavailable

3

FLYWHEEL ROTOR

32102-03020

Unavailable

4

LAMP COIL

32120-03021

Unavailable

5

PRIMARY COIL

32140-03020

Unavailable

6

CONTACT POINT ASS'Y | ISO

32240-03120

Unavailable

7

CONTACT BREAKER CAM OIL FELT

32338-03020

Unavailable

8

CONDENSER

32341-03020

Unavailable

9

IGNITION COIL ASS'Y | ISO

33410-06031

Unavailable

10

SCREW This part replaces 02111-05168.

02112-05167

$1.97

10

CROSS HEAD SCREW

02111-05161

Unavailable

11

SCREW This part replaces 02112-05168.

02112-05167

$1.97

11

STRONG CROSS HEAD SCREW

02112-05161

Unavailable

12

4 x 12 SCREW

02311-04128

Unavailable

12

4 x 12 SCREW

02311-04121

Unavailable

13

4 x 24 SCREW

02311-04248

Unavailable

14

5 x 10 SCREW

02311-05108

Unavailable

14

5 x 10 SCREW

02311-05101

Unavailable

15

NUT This part replaces 08311-11108.

08310-00107

$2.19

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

19

WASHER This part replaces 08322-11108.

08322-01107

$2.15

20

WASHER This part replaces 08322-21048.

08322-01047

$1.86

21

WASHER This part replaces 08322-21058.

08322-01057

$2.13
