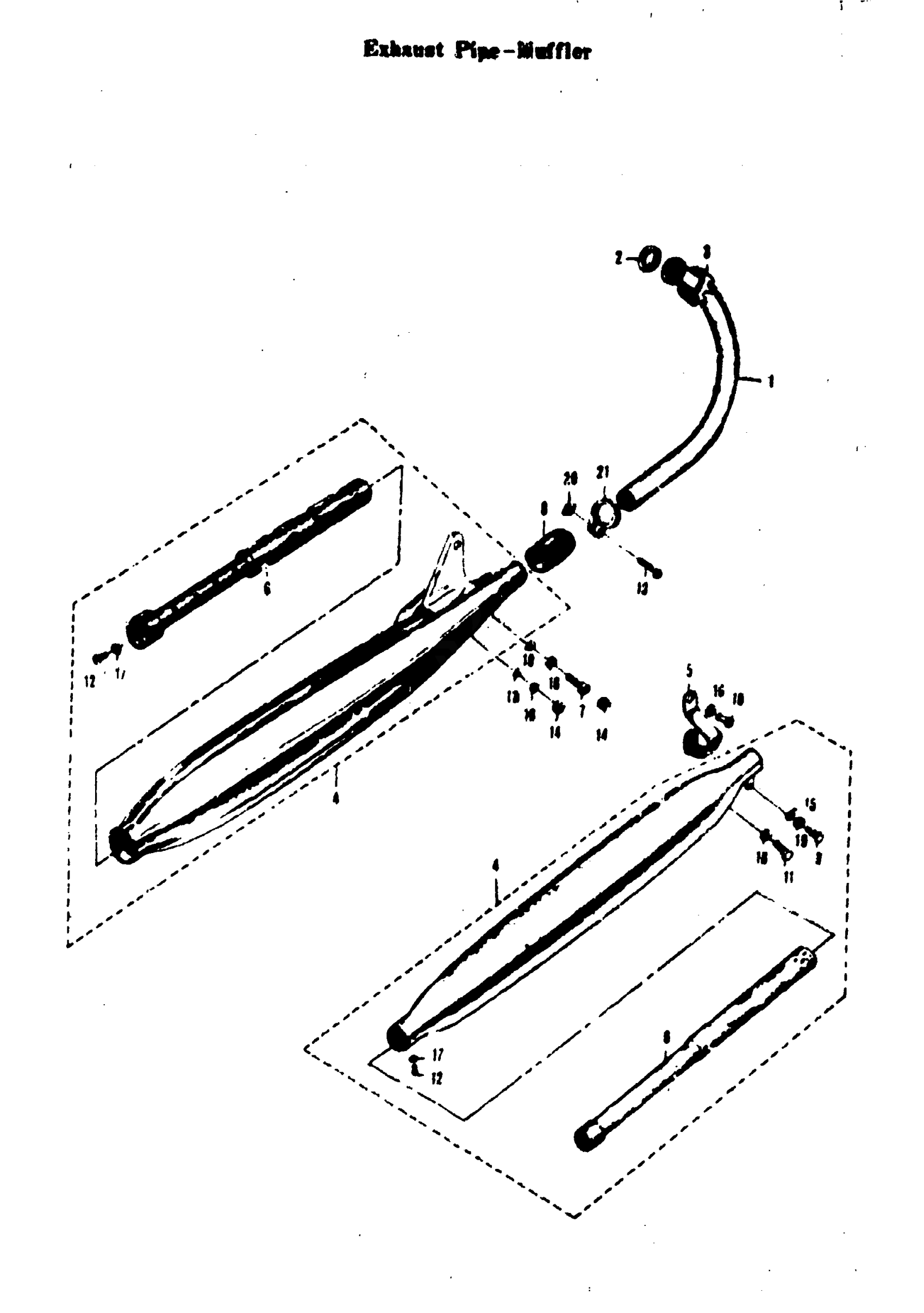

Suzuki 80K10 (1968) EXHAUST PIPE-MUFFLER Diagram

#

Description
Price

1

EXHAUST PIPE

14151-03000

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-03310.

14181-37D00

$4.56

3

EXHAUST PIPE CLAMP

14182-03300

Unavailable

4

MUFFLER ASS'Y

14301-03002

Unavailable

4

MUFFLER ASS'Y | O E.NO.K10-326363

14301-03001

Unavailable

5

MUFFLER BRACKET | O.K10-326363

14410-03000

Unavailable

6

MUFFLER BAFFLE PIPE

14510-03001

Unavailable

7

MUFFLER FITTING BOLT | REW L. =16(0.63) AFTER E.N364 UP TO E.NO.K10-400709

14635-50000

Unavailable

8

MUFFLER CONNECTOR | UP TO E.NO.K10-326363

14771-03000

Unavailable

9

BOLT | O.K10-326363 This part replaces 01111-06208.

01500-06207

$2.28

10

SMALL HEAD HEXAGON BOLT | O.K10-326363

01121-08128

Unavailable

11

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

12

CROSS HEAD SCREW

02111-05088

Unavailable

12

CROSS HEAD SCREW

02111-05081

Unavailable

13

CROSS HEAD SCREW

02111-05308

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 02111-05301.

02111-05302

Unavailable

14

NUT | O E.NO.K10-400709 This part replaces 08312-11088.

08310-00087

$2.13

15

LOCK WASHER | O.K10-326363 This part replaces 08321-21068.

08321-01067

$2.13

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

WASHER This part replaces 08322-21058.

08322-01057

$2.13

18

WASHER | O.K10-326364 This part replaces 08322-11088.

08322-01087

$2.13

19

WASHER | O.K10-326363 This part replaces 08322-21068.

08322-01067

$2.13

20

MUFFLER CONNECTOR STOPPER

09152-05103

Unavailable

20

MUFFLER CONNECTOR STOPPER

09152-05003

Unavailable
