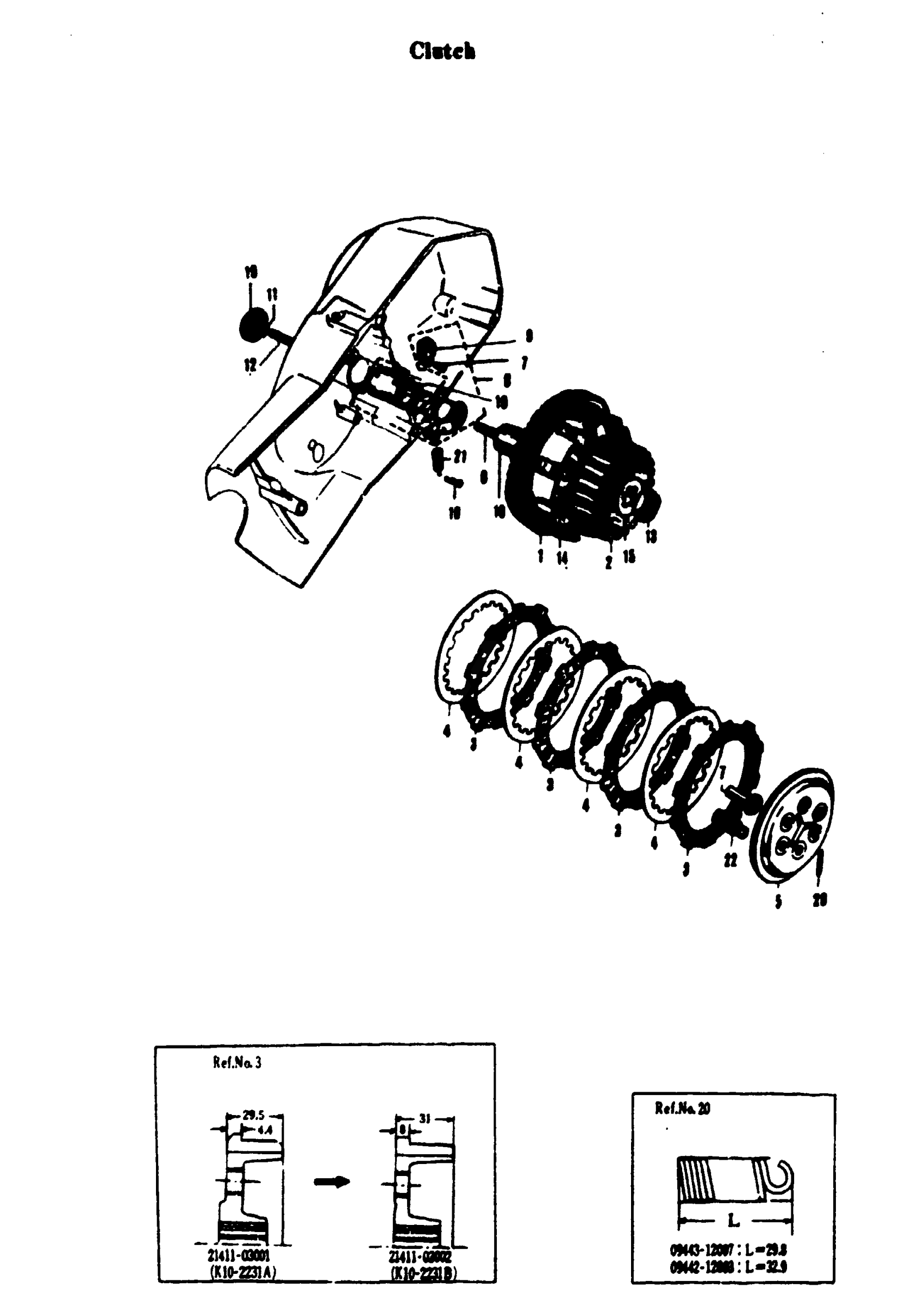

Suzuki 80K10 (1968) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 21200-03001.

21200-03010

Unavailable

2

CLUCH SLEEVE HUB

21411-03002

Unavailable

2

CLUTCH SLEEVE HUB | O E.NO.K10-352311

21411-03001

Unavailable

2

CLUTCH SLEEVE HUB | O E.NO.K10-62798

21411-03000

Unavailable

3

CLUTCH CORK PLATE

21441-03000

Unavailable

4

CLUTCH STEEL PLATE

21451-03000

Unavailable

5

CLUTCH PRESSURE PLATE

21460-03001

Unavailable

6

CLUTCH PUSH ROD | O.D. =55(2.17) L.=90(3.5

23111-03001

Unavailable

7

CLUTCH RELEASE ROD

23121-03010

Unavailable

8

CLUTCH PELEASE SCREW ASS'Y

23200-03031

Unavailable

9

CLUTCH RELEASE SCREW ARM HOOK

23221-01000

Unavailable

10

SCREW This part replaces 02111-06128.

02112-06127

$1.84

11

.NUT This part replaces 08311-31068.

08310-00067

$2.13

12

SCREW This part replaces 09134-06001.

09134-06010

$3.12

13

NUT This part replaces 09140-16001.

09140-16005

$3.75

14

WASHER | O.D. =29(1.14) I.D. =17(01.5(0.06) This part replaces 09160-17003.

08211-17282

$2.70

15

CLUTCH SLEEVE HUB WASHER | O.D. =33(1.30) T. =0.8(0.

09167-17002

$1.91

16

CLUTCH HOUSING SPACER | O.D. =21(0.83)I.D. =17(0.2(2.05)

09180-17011

Unavailable

17

CLUTCH RELEASE SCREW ARM HOOK

09209-04004

Unavailable

18

PIN This part replaces 09220-04001.

09223-04001

$1.68

19

CLUTCH RELEASE SCREW CAP

09250-25001

$2.45

20

CLUTCH SPRING PIN | O.D. =2.5(0.10) L. =19.8(

09261-02001

$1.56

21

CLUTCH RELEASE SCREW ARM SPRI

09443-08001

$2.92

22

CLUTCH SPRING

09443-12003

$2.47
