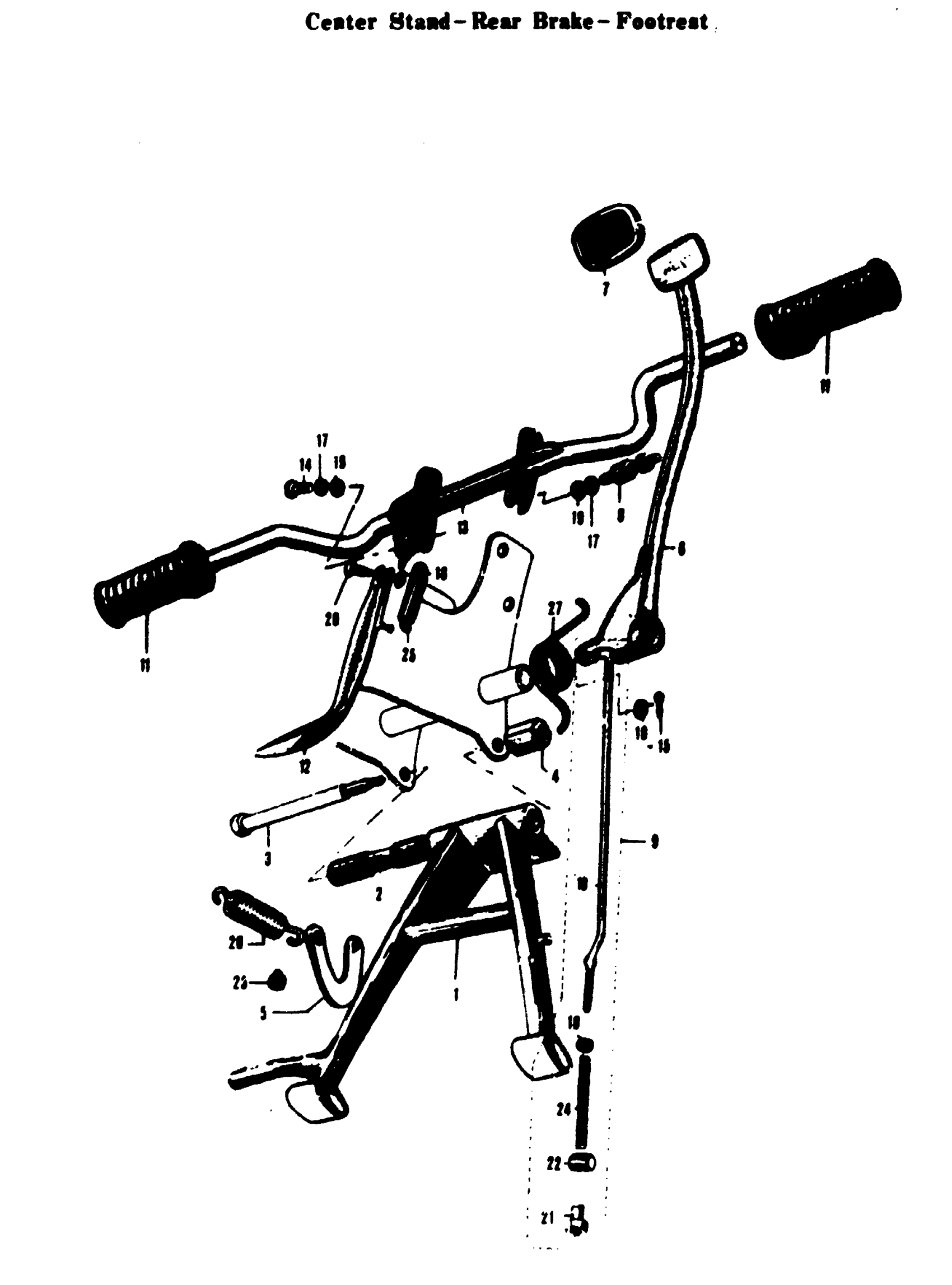

Suzuki 80K10 (1968) CENTER STAND-REAR BRAKE-FOOTREST Diagram

#

Description
Price

1

CENTER STAND

42100-03002

Unavailable

2

CENTER STAND SPACER | O.D. =16(0.63) L.D.=10.4(84.4(3.32)

42211-03001

Unavailable

3

NO DESCRIPTION AVAILABLE | .46) This part replaces 42221-03000.

42221-03001

Unavailable

4

CENTER STAND NUT | 1.11)

42231-09000

Unavailable

5

CENTER STAND SPRING HOOK

42250-03001

Unavailable

6

BRAKE PEDAL

43110-03001

Unavailable

7

BRAKE PEDAL RUBBER

43151-01000

Unavailable

8

BRAKE PEDAL STOPPER | .11)

43221-03001

Unavailable

9

BRAKE RED ASS'Y | ISO

43300-01003

Unavailable

10

BRAKE ROD ASS'Y | ISO This part replaces 43311-01002.

43300-01003

Unavailable

11

RUBBER This part replaces 43551-03000.

43551-03001

$7.22

12

SIDE STAND

42310-03003

Unavailable

13

FOOTREST BAR

43510-03003

Unavailable

14

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

15

COTTER PIN

04111-20188

Unavailable

16

NUT This part replaces 08312-31108.

08310-00107

$2.19

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13

19

WASHER This part replaces 08322-21088.

08322-01087

$2.13

20

BOLT This part replaces 09100-10007.

09100-10287

$3.48

21

BRAKE ROD ADUSTER NUT | ISO

09150-05101

$3.04

21

BRAKE ROD ADUSTER NUT

09150-05001

Unavailable

22

BRAKE CAM LEVER PIN

09209-10001

$1.49

23

CENTER STAND BUFFER | 22(0.87)L.=16(0.63)

09321-10002

$2.22

24

BRAKE ROD ADJUSTER SPRING | O.D.=9(0.35)L.=100(3.34)

09440-09004

$2.20

25

SPRING | .55)L.=91.2(3.58) This part replaces 09443-14005.

09443-14017

$3.04

26

SPRING | O.D.=16(0.63)L.=80.4(3.16 This part replaces 09443-16002.

09443-16007

Unavailable
