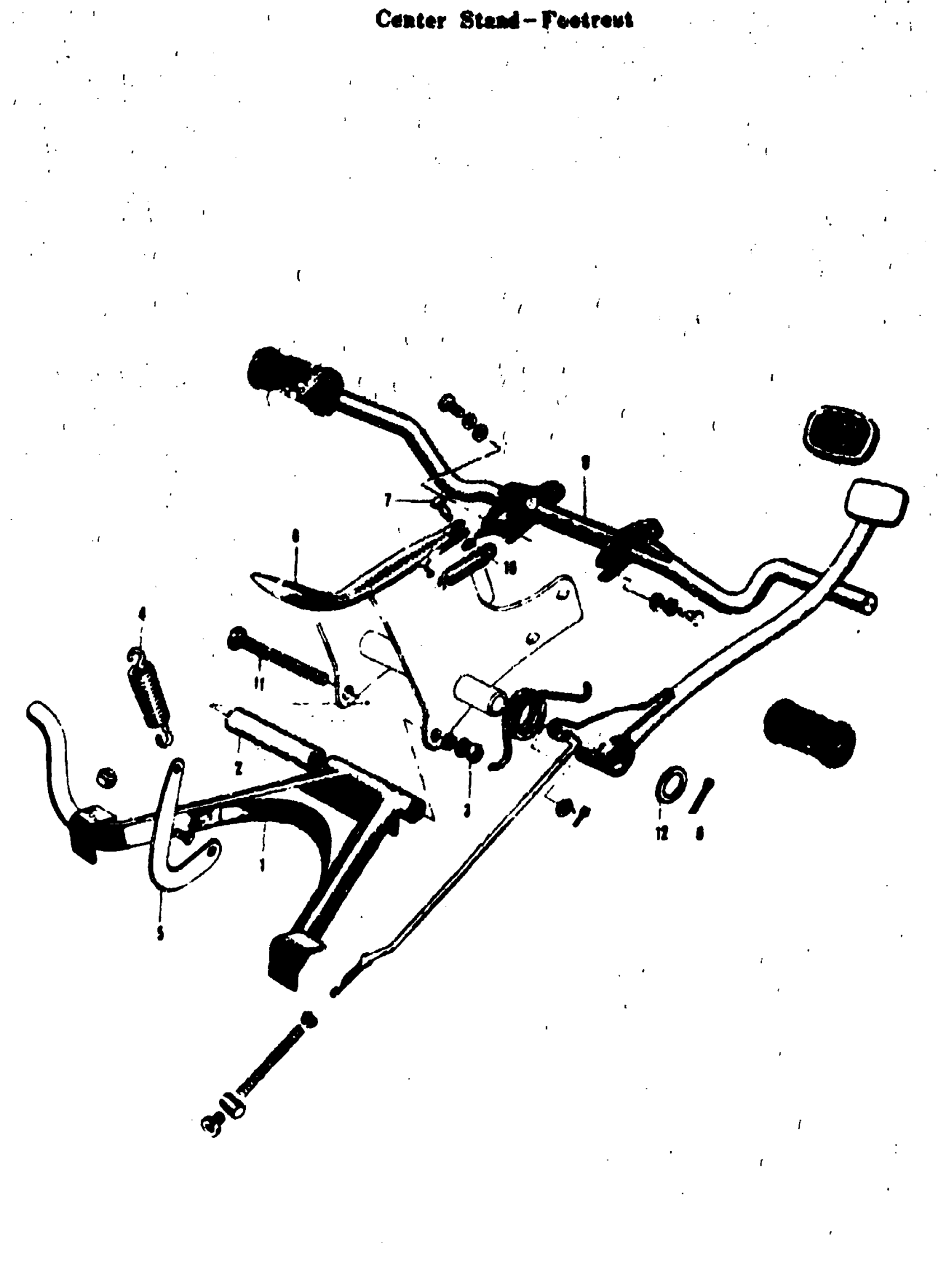

Suzuki 80K10 (1968) CENTER STAND - FOOTREST Diagram

#

Description
Price

1

CENTER STAND | O.K10-326363

42100-03000

Unavailable

2

CENTER STAND SPACER | UP TO E.NO.K10-326363 O.D1) I.D. =8.4(0.03) L. =79.

42211-50001

Unavailable

3

CENTER STAND NUT | UP TO E.NO.K10-326363 SIZW NUT

42231-03600

Unavailable

4

CENTER STAND SPRING | UP TO E.NO.K10-326363 O.D3) L. =54.4(2.14)

42241-03000

Unavailable

5

CENTER STAND SPRING HOOK | UP TO E.NO.K10-326363

42250-03000

Unavailable

6

SIDE STAND | UP TO E.NO.K10-132750

42310-50000

Unavailable

7

SIDE STAND FITTING BOLT | UP TO E.NO.K10-132750

42411-50000

Unavailable

8

FOOTREST BAR | O.K10-132750

43510-03000

Unavailable

9

PIN | O.K10=K10-326363 K15=K10-3 This part replaces 04111-30258.

04111-3030A

$1.49

10

NUT | O.K10-132750 This part replaces 08312-31088.

08310-00087

$2.13

11

CENTER STAND BOLT | UP TO E.NO.K10-326363 O.D.L. =105(4.13)

09100-08016

Unavailable

12

BRAKE PEDAL WASHER | O.D. =26(1.02), O.D. =5.5. =23(0.09) UP TO E. NO. K10-32636

09160-15002

$1.91
