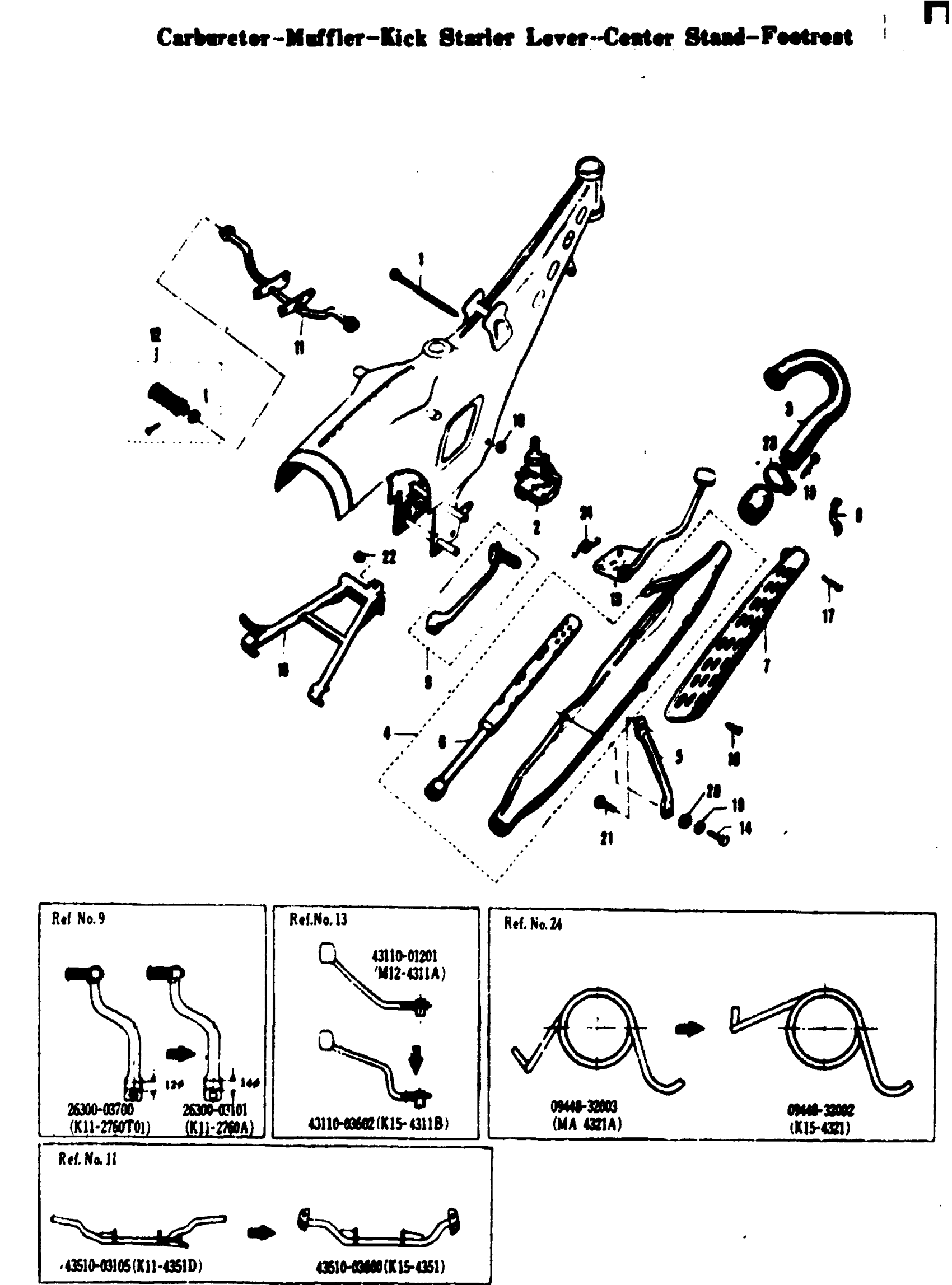

Suzuki 80K10 (1968) CARBURETER - MUFFLER - KICK STARTER LEVER - CENTER STAND - FOOTREST Diagram

#

Description
Price

1

ENGINE MOUNTING BOLT

11699-01200

Unavailable

2

CARBURETOR ASS'Y

13200-03982

Unavailable

3

EXHAUST PIPE

14150-03100

Unavailable

4

MUFFLER ASS'Y

14301-03100

Unavailable

5

MUFFLER REAR BRACE

14470-01201

Unavailable

6

MUFFLER BAFFLE PIPE

14510-01202

Unavailable

7

MUFFLER COVER

14780-01203

Unavailable

8

MUFFLER COVER CLAMP | O E. NO. K10-313484

14795-01200

Unavailable

9

KICK STARTER LEVER ASS'Y | YPE

26300-03101

Unavailable

9

KICK STARTER LEVER ASS'Y | P TO E.NO. K10-153600

26300-03700

Unavailable

10

CENTER STAND

42100-03100

Unavailable

11

FOLDING FOOTREST BAR

43510-03600

Unavailable

11

FOOTREST BAR | .K10-131414 UP TO E.NO.K10

43510-03105

Unavailable

12

FOLDING FOOTREST RUBBER ASS'Y

43600-03805

Unavailable

13

BRAKE PODAL

43110-03602

Unavailable

13

BRAKE PODAL | O.K10-300928

43110-01201

Unavailable

14

HEXAGON BOLT

01111-06128

Unavailable

15

CROSS HEAD SCREW

02111-05208

Unavailable

15

SCREW This part replaces 02111-05201.

02112-05207

$1.97

16

CROSS HEAD SCREW

02111-06088

Unavailable

17

CROSS HEAD SCREW

02111-06168

Unavailable

18

NUT This part replaces 08312-31088.

08310-00087

$2.13

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

21

SEAT FITTING BOLT | E.NO. K10-438538 O.D. =8( =24(0.94)

09100-08008

Unavailable

22

CENTER STAND BUFFER

09321-10001

$2.61

23

MUFFLER CONNECTOR BAND | UP TO E.NO. K10-313483

09402-00130

Unavailable

24

SPRING, BRAKE PEDAL This part replaces 09448-32002.

09448-29001

Unavailable
