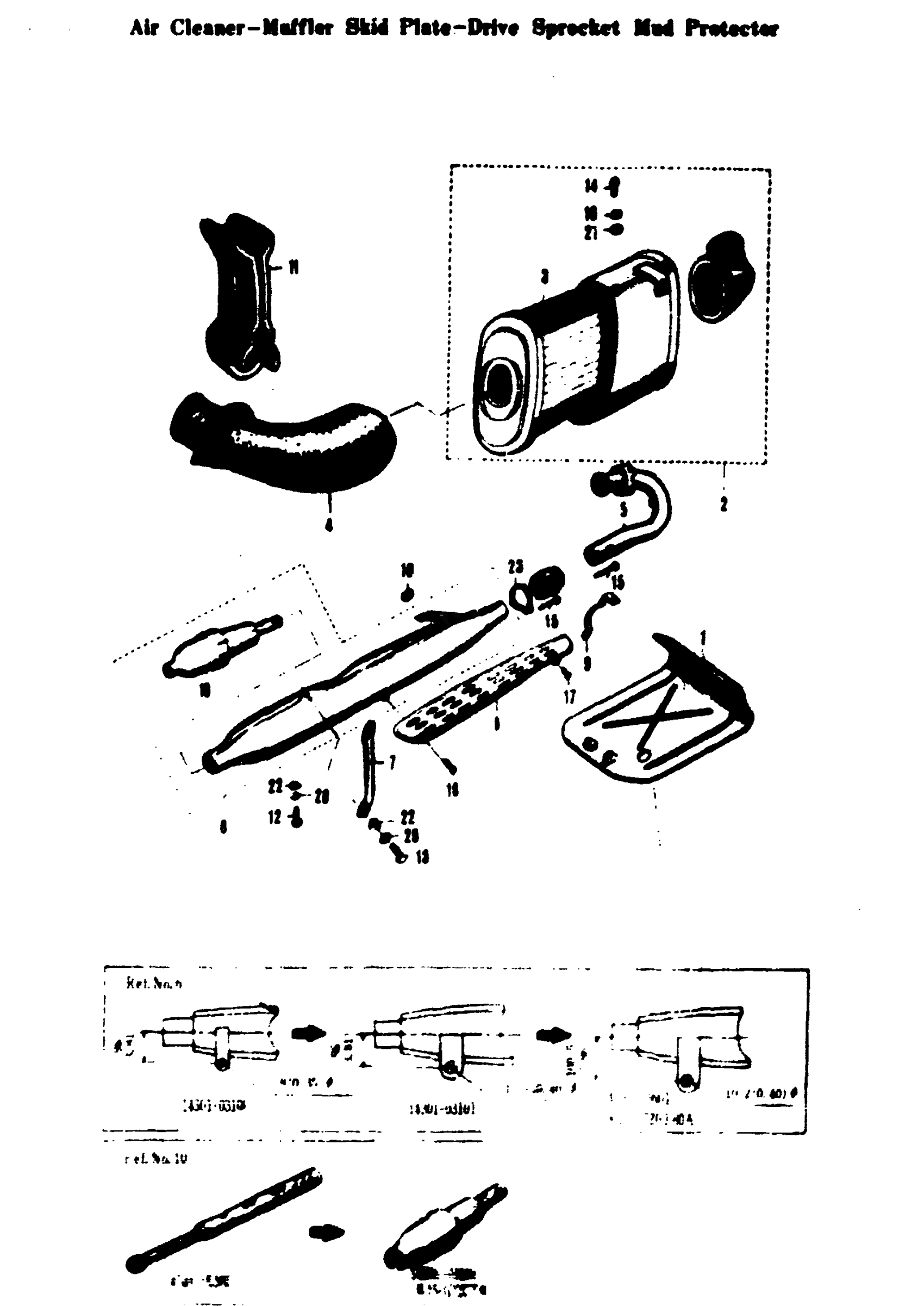

Suzuki 80K10 (1968) AIR CLEANER - MUFFLER - SKID PLATE - DRIVE SPRECKET MUD PROTECTOR Diagram

#

Description
Price

1

SHID PLATO

11910-03600

Unavailable

2

AIR CLEANER ASS'Y

13700-03970

Unavailable

3

AIR CLEANER ELEMENT

13780-03970

Unavailable

4

AIR CLEANER TUBE

13881-03971

Unavailable

5

EXHAUST PIPE

14150-03100

Unavailable

6

MUFFLER ASS'Y

14301-03601

Unavailable

6

MUFFLER ASS'Y | E NO K 10-375077

14301-03101

Unavailable

6

MUFFLER ASS'Y | UP TO E NO. K10-328710

14301-03100

Unavailable

7

MUFFLER REAR BRACE

14470-01201

Unavailable

8

MUFFLER COVER

14780-01203

Unavailable

9

MUFFLER COVER CLAMP

14795-01200

Unavailable

10

SPARK ARRESTER

14801-03600

Unavailable

10

MUFFLER BUFFLE PIPE | UP TO E. NO. K10-375877

14510-01202

Unavailable

11

DRIVE SPROCHET MUD PROTECTOR

27711-03600

Unavailable

12

HAXAGON BOLT

01111-06088

Unavailable

13

HEXAGON BOLT

01111-06127

Unavailable

14

CROSS HEAD SCREW

02111-04088

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 02111-04081.

02111-04082

Unavailable

15

CROSS HEAD SCREW

02111-05208

Unavailable

15

SCREW This part replaces 02111-05201.

02112-05207

$1.97

16

CROSS HEAD SCREW

02111-06088

Unavailable

17

CROSS HEAD SCREW | E.NO.K10-313483

02111-06168

Unavailable

18

NUT | E.NO.K10-326710 This part replaces 08312-31088.

08310-00087

$2.13

19

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

WASHER This part replaces 08322-21048.

08322-01047

$1.86

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13
