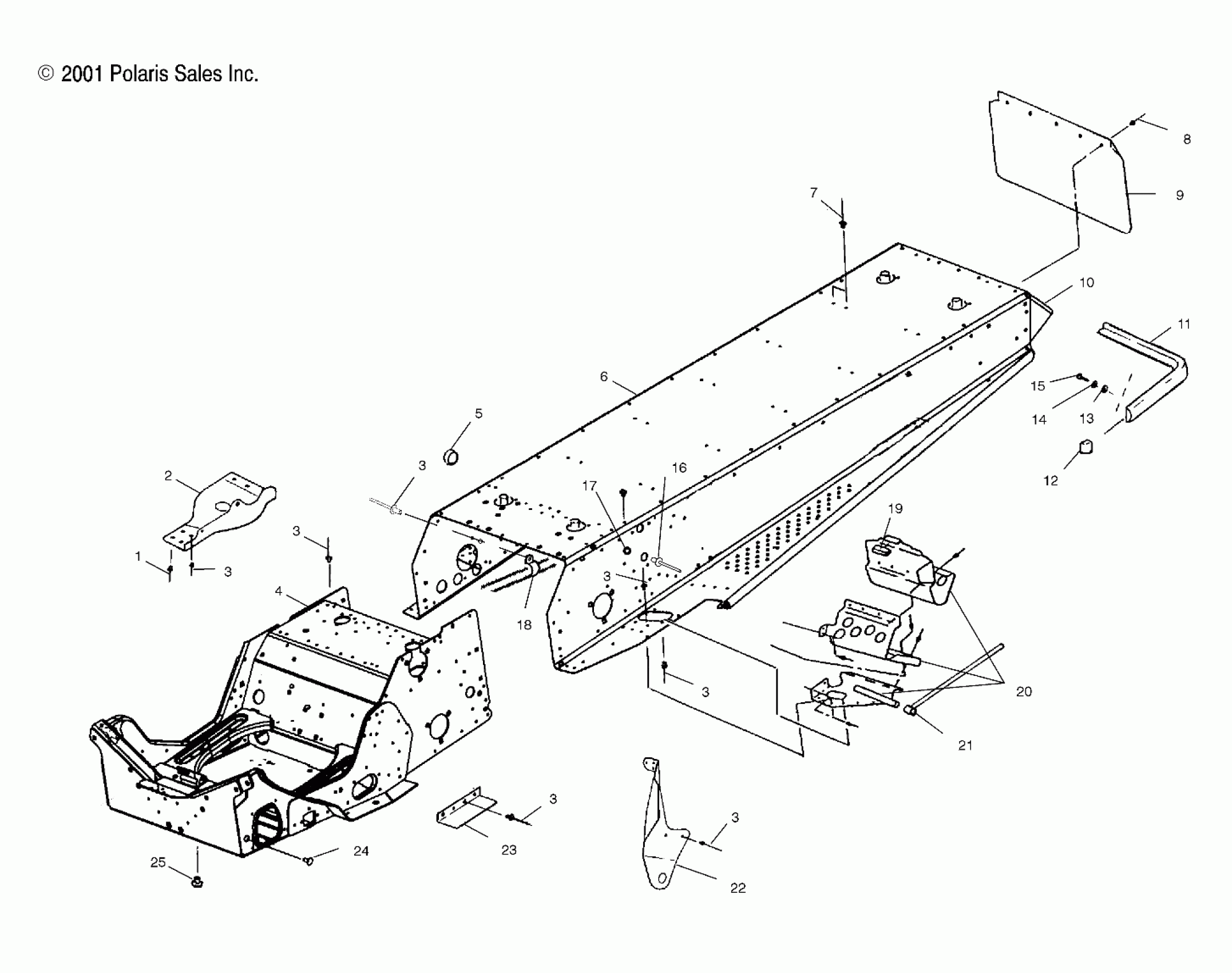

Polaris 800 XCR - S02SB8AS TUNNEL - S02SB8AS (4969486948A003) Diagram

#

Description
Price

1

RIVET-3/16-.214-.420

7661130

$1.49

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

WELD-BULKHEAD,CRC,HYB,TRIPLE

1013186

Unavailable

5

GROMMET-ELECTRIC SHOCK WIRE(10)

5411774

Unavailable

6

ASM-TUNNEL,TRI,X-10,SPIERCENAT (Incl. 10)

1013596-309

Unavailable

7

RIVET,3/16X.402(50)

7621432

$1.49

8

POP RIVET(50)

7621418

$1.49

9

FLAP-SNOW,MOLDED,BLK W/SILVER

5410394-1106

$121.02

10

PANEL,TUNNELBACK,BLK

5241946-067

Unavailable

11

ASM-REAR BUMPER,NATURAL

2670169-309

Unavailable

12

CAP,BUMPER

5431995-070

Unavailable

13

WASHER(10)

7558301

$1.49

14

LOCK WASHER(10)

7552801

$1.59

15

BOLT(10)

7512240

$3.99

16

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

17

SNAP-MALE(10)

7080227

Unavailable

18

CLIP, HALF(10)

7080393

$3.19

19

EXTRUSION,CLUTCHGUARD

5521238

$6.46

20

ASM-FOOTREST,LH,NATURAL

1013579

Unavailable

20

ASM-FOOTREST,RH,NATURAL

1013580

$103.19

21

TUNNEL SUPPORT,LH,BLK

1013052-067

$17.10

21

TUNNEL SUPPORT,RH,BLK

1013053-067

$17.97

22

BRACE-FOOTREST/TRLG-ARM,MNT,LH Substituted by 5242494-067

5242494

Unavailable

22

BRACE,FTRST/TR.ARM,MNT,RH Substituted by 5242495-067

5242495

Unavailable

23

GUARD,ADAPTER GUIDE

5222857

$12.94

24

PLUG, HOLE(10)

7080416

$5.65

25

PLUG-HOLE

7080398

$4.84

25

PLUG,HOLE(10)

7080689

$5.75
