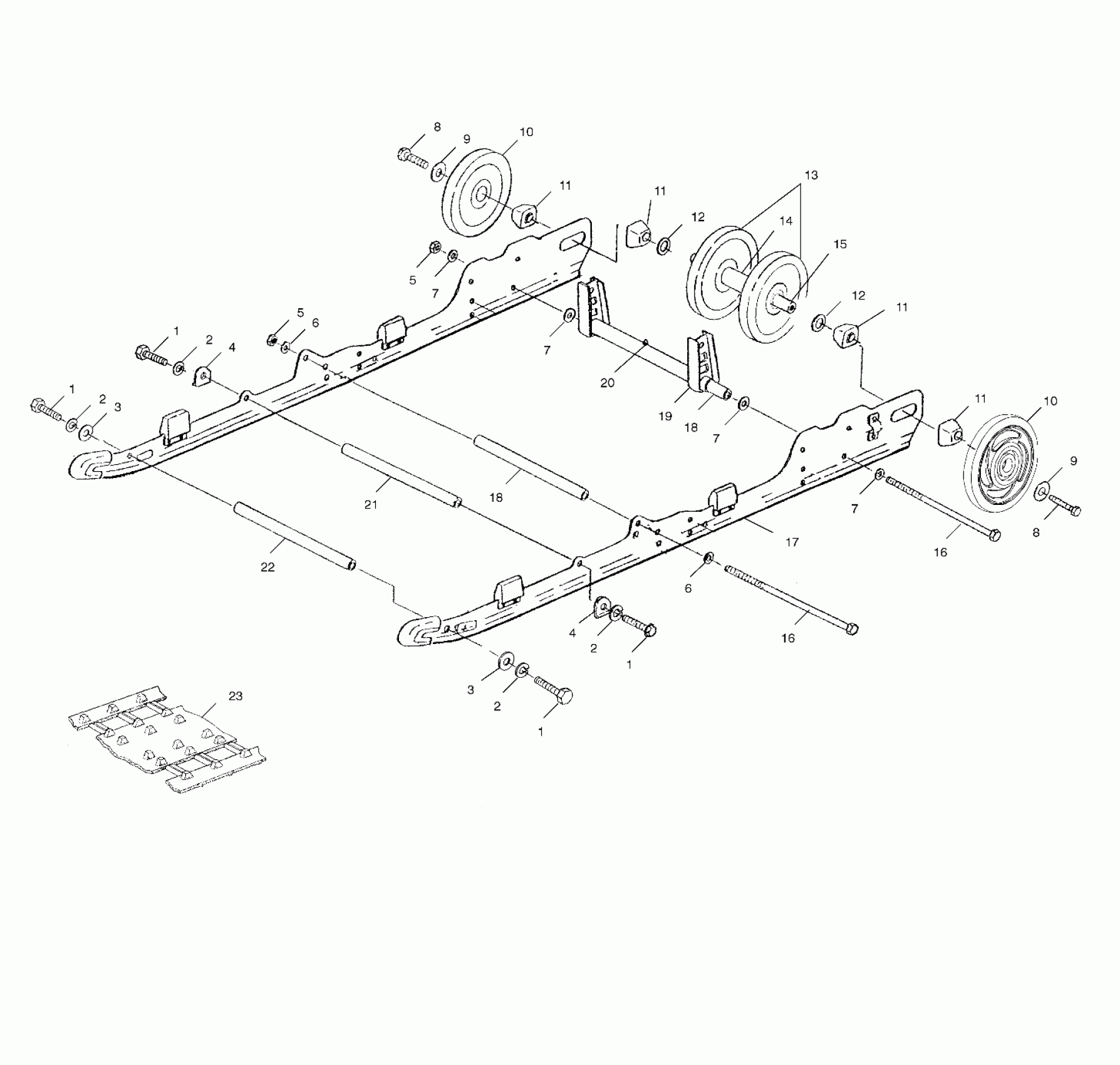

Polaris 800 XCR - S02SB8AS SUSPENSION - S02SB8AS (4969486948B011) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555923

$2.39

3

WASHER(10)

7555923

$2.39

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

6

WASHER(10)

7555806

$1.49

6

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

7

WASHER(10)

7555893

$1.49

8

BOLT,3/8-16X1.25(10)

7517731

$1.49

8

BOLT,3/8-16X1.25(10)

7517731

$1.49

9

WSHR,.406X1.25X.125(10)

7556130

$6.39

9

WSHR,.406X1.25X.125(10)

7556130

$6.39

10

RING-RETAINING

7710444

$8.79

10

WHEEL,IDLER,SCRLLD,INDYRED

1594083-293

Unavailable

10

Bearing

3514012

Unavailable

10

RING-RETAINING

7710444

$8.79

10

WHEEL,IDLER,SCRLLD,INDYRED

1594083-293

Unavailable

10

Bearing

3514012

Unavailable

11

SPACER-IDLER

5432535

$11.99

11

SPACER-IDLER

5432535

$11.99

11

SPACER-IDLER

5432535

$11.99

11

SPACER-IDLER

5432535

$11.99

12

BUSHING(10)

7555918

$1.59

12

BUSHING(10)

7555918

$1.59

13

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

14

SPACER-IDLER, CENTER

5333283

$19.99

15

SHAFT,IDLER

5020744

$59.99

16

Screw

7517353

Unavailable

16

Screw

7517353

Unavailable

17

SLIDER,WHITE Substituted by 5521452

5521405

$40.46

18

SHAFT

5333404

$24.27

18

SHAFT

5333404

$24.27

19

ARM,R.PIVOT

1540982-067

$38.05

20

ZERK,FITTING,THREADED(10)

7080433

$1.49

21

SHAFT,PIVOT ARM

5020724

$29.99

22

SHAFT,PIVOT ARM

5020723

$29.99

23

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

23

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

23

TRACK,121"X15,.91 LUG

5411839

Unavailable
