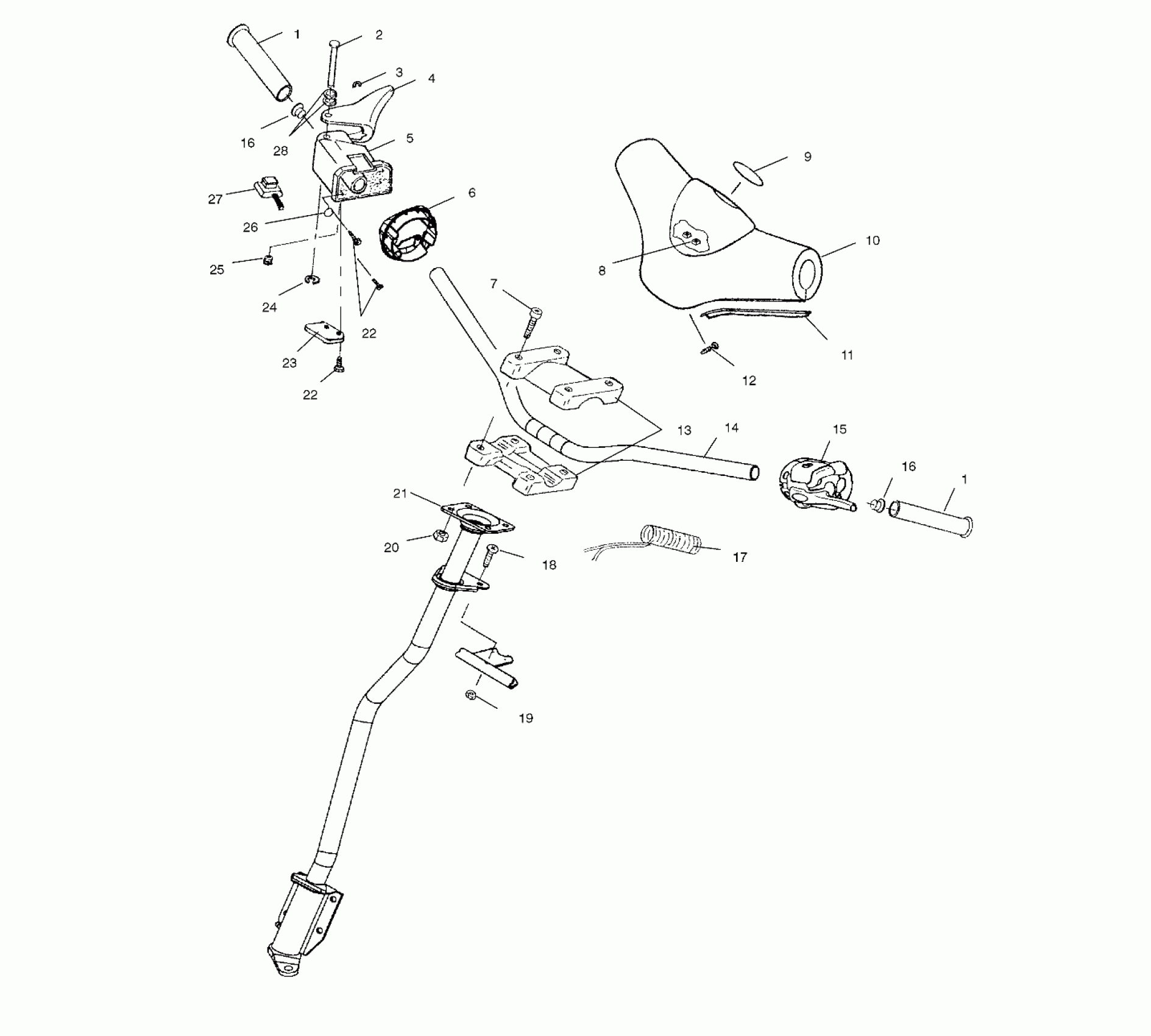

Polaris 800 XCR - S02SB8AS STEERING - HANDLEBAR - S02SB8AS (4969486948B007) Diagram

#

Description
Price

1

GRIP,H'BAR,SNOW

5432634

$24.27

1

GRIP,H'BAR,SNOW

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

THROTLE,LEVER,35.5MM

5432970

$29.03

4

LEVER ASM,HTR,HI/LO 35.5MM

2010171

$84.98

5

BLOCK,THROTTLE/BRAKE

5431592

$49.99

6

ADAPTER-BLOCK,THROTTLE

5433345

$15.99

7

SCREW,(10)

7517238

$4.79

8

NUT-PUSH ON,.170-.180-Y(10)

7670106

$2.39

9

EMBLEM-"STAR" PLM.BEZEL,HNDLBR

5434179

Unavailable

10

COVER-HANDLEBAR,BLK

5433159-070

$77.99

11

SLIDE-HANDLEBAR COVER,BLK

5433160-070

$28.32

12

DART-CLIP NYLON,BLK

4010287

$3.99

13

BLOCK,HANDLEBAR

5630187-067

$44.99

14

HANDLE BAR,BLK

5243355-067

$94.99

15

Asm., Control, LH (See Brake Pg. B1, Ref. 12)

-------

Unavailable

16

PLUG, OVERFLOW,(10)

5431096

$2.02

16

PLUG, OVERFLOW,(10)

5431096

$2.02

17

HEATER,GRIP,LO/MED/HI

2460677

$60.70

18

SCREW

7517377

$4.79

19

NUT, LOCK(10)

7542103

$5.59

20

NUT-LOCK(10)

7542122

$1.49

21

STEERING POST,TRIPLE

1820682-067

Unavailable

22

SCREW-SEMS(10)

7511848

$3.99

22

SCREW-SEMS(10)

7511848

$3.99

23

HOLDER-WIRE

5432261

$24.27

24

RING-RETAINING EXTERNAL

7710401

$3.99

25

SCREW(10)

7512465

$3.99

26

RIVET BURR(50)

7555727

$1.49

27

SWITCH,AUX.SHUT-OFF

4110106

$94.99

28

WASHER(10)

7555730

$3.99
