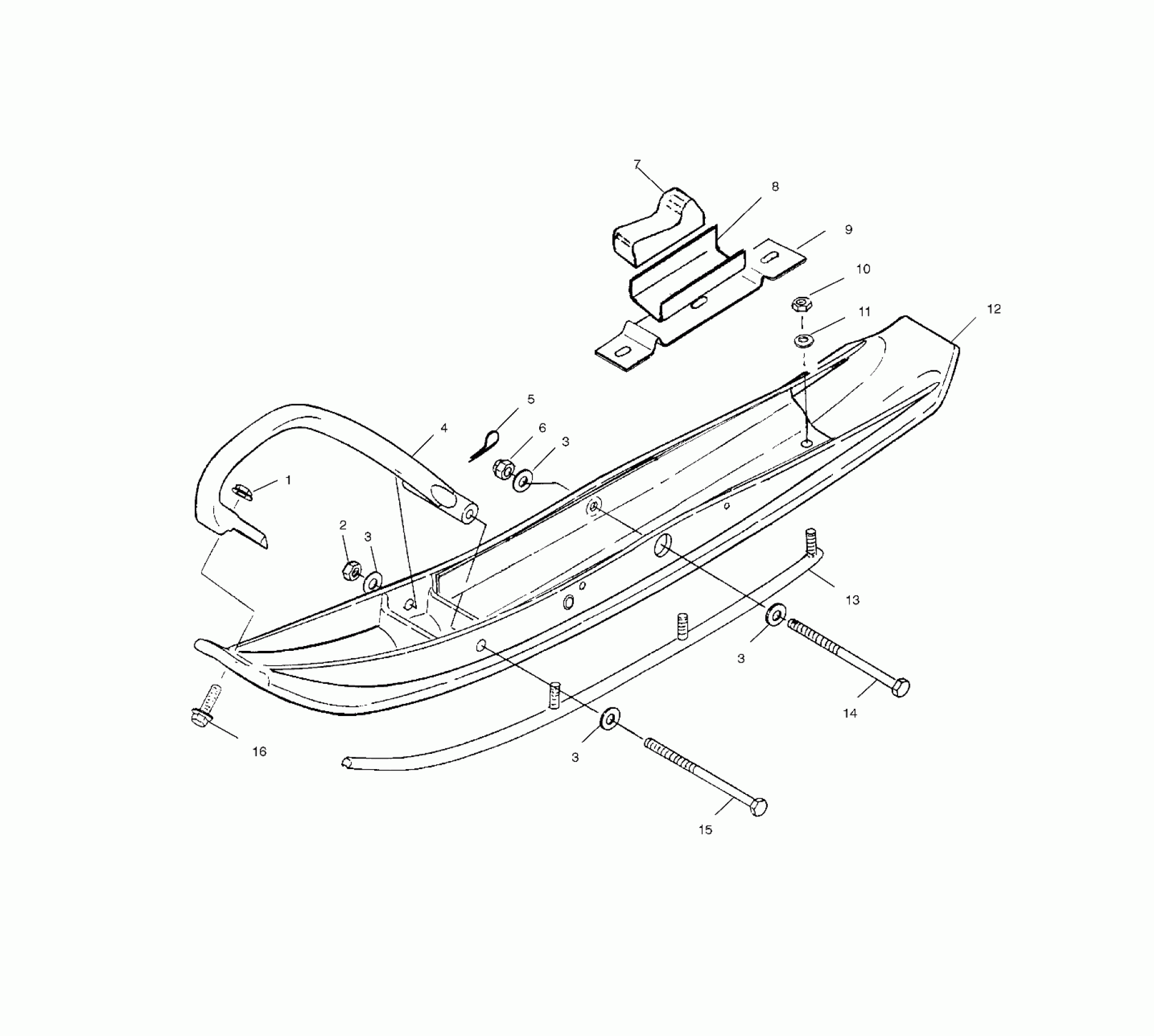

Polaris 800 XCR - S02SB8AS SKI - S02SB8AS (4969486948B002) Diagram

Description

Price

NUT LOCK(10)

7542321

$1.49

NUT-LOCK(10)

7542439

$1.49

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

TOE-PLASTIC SKI,INDY RED

5434165-293

$40.46

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

STOP,RUBBER

5412018

$24.27

RETAINER-SKI RUBBER

5243824

$27.99

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

WASHER(10)

7555806

$1.49

ASM-CMP SKI BLANK W/RK SDL,BLK

1820821-070

Unavailable

SKAG,CARBIDE 6",COMP PR

2871687

$89.99

SCREW,(10)

7512596

$19.99

BOLT(10)

7515514

$7.19

BOLT(10)

7515307

$3.99
