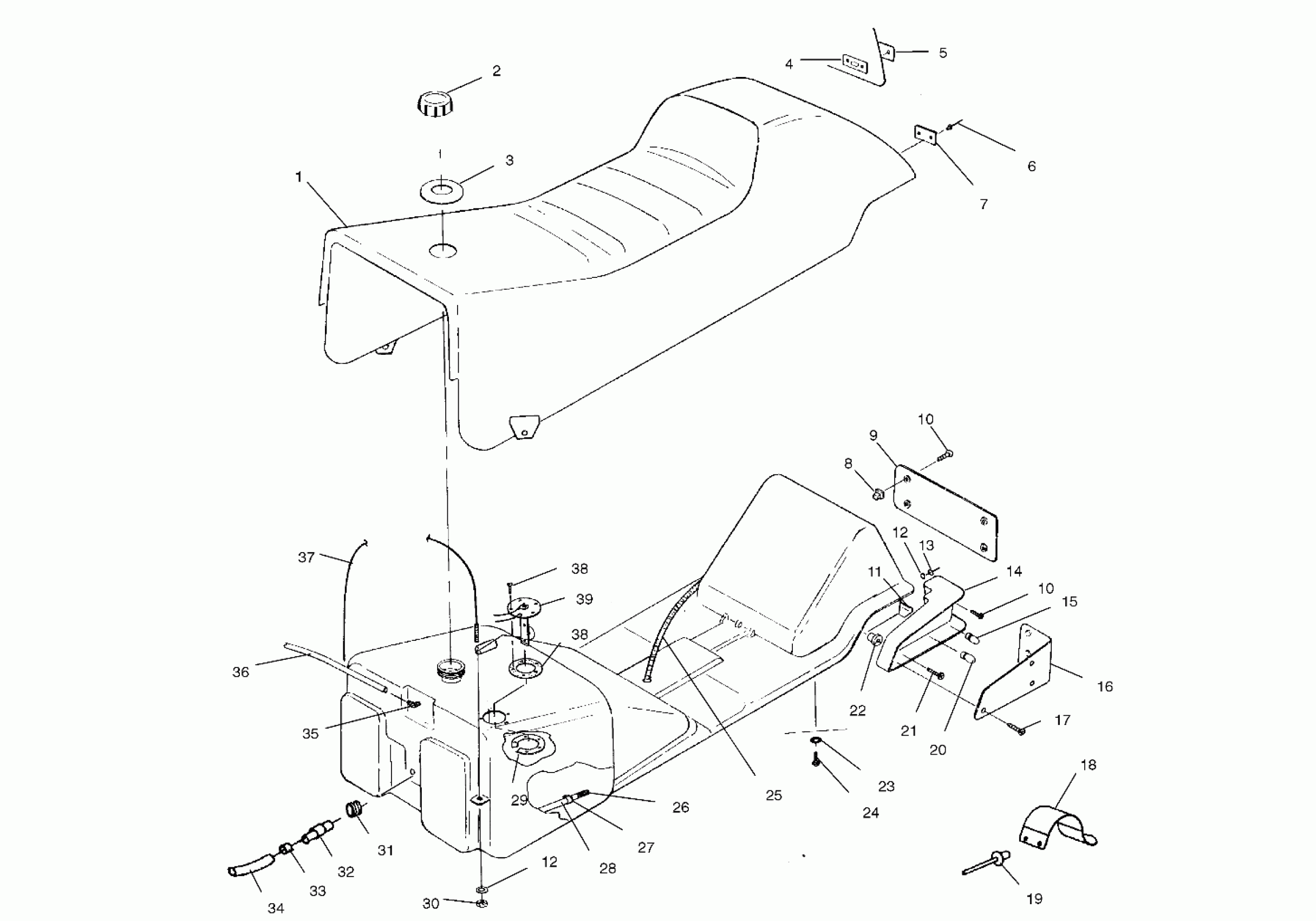

Polaris 800 XCR - S02SB8AS SEAT and GAS TANK - S02SB8AS (4969486948A004) Diagram

#

Description
Price

1

DESC NOT_AVAILABLE (Incl. 4-22,25-32,35,37)

2682784

Unavailable

1

DESC NOT_AVAILABLE

2682785

Unavailable

2

GASKET, GAS CAP

5810513

$8.89

2

CAP,FUELTANK,W/GASKET

2511226

Unavailable

3

GROMMET,FUELTANK

5410842

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

DESC NOT_AVAILABLE

7661058

Unavailable

7

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

8

NUT(10)

7546908

$2.63

9

REFLECTOR,CTR,SEAT

5432008

Unavailable

10

SCREW,SELF-TAP(10)

7522004

Unavailable

10

SCREW,SELF-TAP(10)

7522004

Unavailable

11

DESC NOT_AVAILABLE

1012838-067

Unavailable

12

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

12

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

13

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

14

HOUSING,LH,LENS

5432002

Unavailable

14

HOUSING,RH,LENS

5432003

Unavailable

15

Bulb, Brakelight

4030045

Unavailable

16

LENS,RH

5432032

$44.51

16

LENS,LH

5432031

Unavailable

17

SCREW(10)

7512054

$2.39

18

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

19

RIVET(50)

7621472

$1.49

20

BULB, T/L.

4032084

Unavailable

21

SCREW(10)

7511954

$1.19

22

NUT, WELL(10)

7541901

$6.39

23

WASHER,WROUGHT(10)

7558302

$1.59

24

SCREW(10)

7512242

$2.39

25

HARNESS,T/L,121,(SCULPT)

2460541

Unavailable

26

PICK-UP,FUEL,W/MESH

7052215

$49.99

27

RING,COMPRESSION(10)

7080768

$4.84

28

FUEL,LINE,ETHER,VLT,3/8" Substituted by 8350020-160

8350020-600

Unavailable

29

FLANGE-FUEL TANK MOUNTING

5244067

Unavailable

30

NUT(10)

7541925

$1.49

31

Grommet

5432981

$6.94

32

FITTING,ST.THRM,3/8 HOSE

7052214

$13.19

33

CLAMP,HOSE(10)

7080544

Unavailable

34

FUEL,LINE,ETHER,RED,3/8' Substituted by 8350016-160

8350016-600

Unavailable

35

FITTING,90 DEG,1/8,(10)

7052095

$4.79

36

FUELLINE,3MMX7MM

8450061-600

Unavailable

37

CABLE,TANK,RETENTION

7080559

Unavailable

38

HDWE.PKG,SEND.UNIT

2410012

Unavailable

38

HDWE.PKG,SEND.UNIT

2410012

Unavailable

39

SENDER,FUEL LEVEL

3280306

Unavailable
