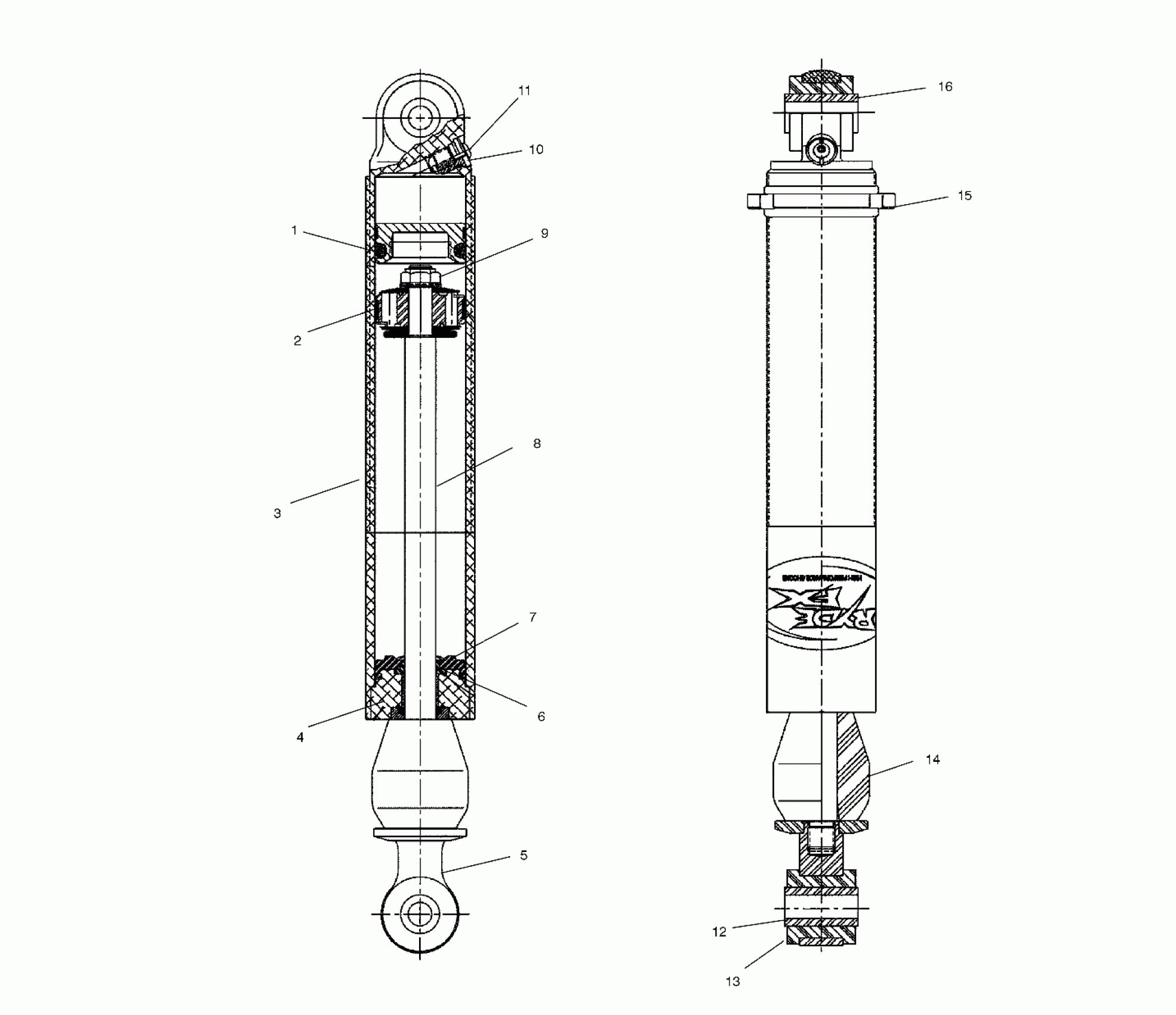

Polaris 800 XCR - S02SB8AS RYDE FX SHOCK - IFS - S02SB8AS (4969486948C001) Diagram

Description

Price

SHOCK-IFS,GAS,X-10,ARVIN

7041978

Unavailable

IFP

1700023

$45.59

IFP WEAR BAND

1700032

$24.99

IFP-O-RING (10)

1700048

$11.60

BACK-UP WASHER

1700078

$9.59

Piston Wear Band

1700031

$28.32

TOP-OUT WASHER

1700077

$10.39

BANDED PISTON .086" ORIFICE

1700108

$30.55

CYLINDER-8.90" [No Longer Available]

1700112

Unavailable

CYL HEAD ASSY(1/2" ROD)

1700007

$106.49

UPPER MOUNT

1700011

$56.65

ROD SEAL (10)

1700021

$20.22

CAP SEAL (10)

1700022

Unavailable

SHAFT-1/2"DIAX8.04"L

1700028

$59.99

Nut

1700057

$9.59

PRESS-VALVE O-RING (10)

1700047

$7.13

PRESS-VALVE ASSY

1700076

Unavailable

VALVE SCREW (10)

1700056

$6.94

SLEEVE-.38"IDX.63"ODX1.18 PM

1700079

$9.59

Bushing

1700072

$9.59

COMP-BUMPER

1700042

Unavailable

SPRING RET NUT

1700033

$23.81

Bushing

1700036

$7.99
