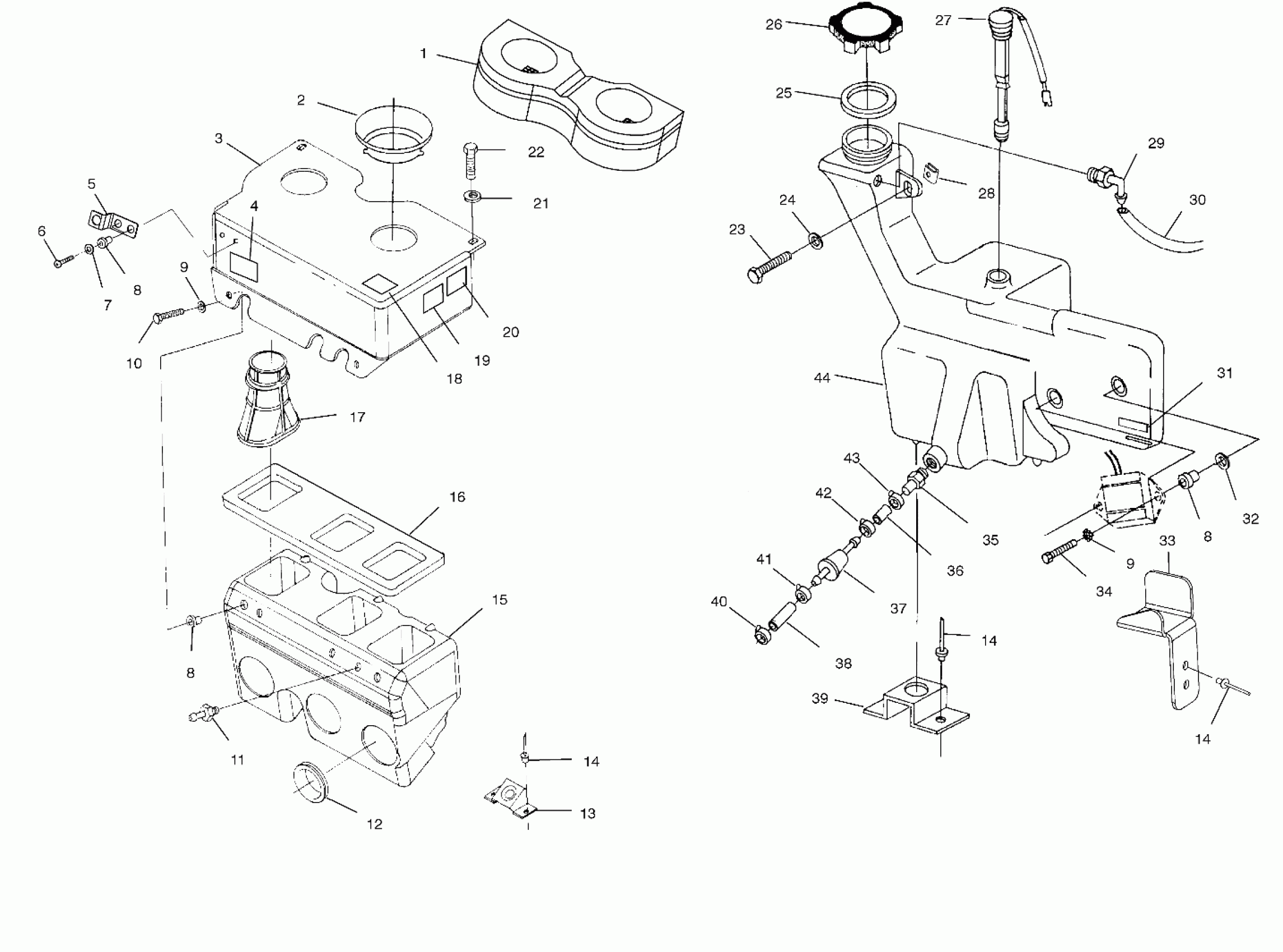

Polaris 800 XCR - S02SB8AS OIL TANK / AIR BOX - S02SB8AS (4969486948C006) Diagram

#

Description
Price

1

ASM-FOAM,INTAKE,TRIPLE

1253382

Unavailable

2

INLET,PLENUM

5410834

Unavailable

3

PLENUM-SILENCER,XCR

5433989

$62.39

4

DECAL-FUEL SHUT OFF

7078194

Unavailable

5

BRK,FUEL SHUT OFF

5243225

Unavailable

6

SCREW Substituted by 7512279

7517376

Unavailable

7

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

8

NUT-WELL(10)

7541923

$5.59

8

NUT-WELL(10)

7541923

$5.59

8

NUT-WELL(10)

7541923

$5.59

9

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

9

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

10

SCREW

7517377

$4.79

11

FITTING,HOSE(10)

7052127

$3.19

12

BOOT,CARB/AIRBOX,38MM

5411423

$11.19

13

BRKT,AIRBOX,COINED/SLOT

5242892

$9.84

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

15

AIRBOX,BOTTOM

5432936

$99.99

16

SEAL,PLENUM

5810946

Unavailable

17

BOOT,CONE SILENCER,OUTLET

5411047

Unavailable

18

DECAL,CAUTION,AIRBOX

7075351

Unavailable

19

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

20

DECAL, GREASING [No Longer Available]

7073426

$7.27

21

WASHER(10)

7555960

$3.99

22

SCREW(10)

7517685

$1.59

23

BOLT(10)

7512276

$4.79

24

WASHER(10)

7558301

$1.49

25

GASKET-OIL CAP

5810141

$2.39

26

CAP,OIL TANK

5430779

$14.56

27

SENSOR,OIL LEVEL

4110134

$72.84

28

Nut

7670096

$1.59

29

FITTING,90 DEG,1/8,(10)

7052095

$4.79

30

FUELLINE,3MMX7MM

8450061-600

Unavailable

31

DECAL,LOW OIL LEVEL

7074664

Unavailable

32

BUSHING, MACH.(10)

7558707

$4.79

33

DESC NOT_AVAILABLE

5243770

$11.59

34

SCREW(10)

7512222

$2.39

35

FITTING,3/8 OUTLET

7052110

Unavailable

36

LINE,OIL(3/8"-1/4")

5411131

Unavailable

37

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

38

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

39

BRKT,OILTANK,COINED

5241330

$2.15

40

CLAMP-HOSE,(10)

7080236

$1.59

41

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

42

HOSE CLAMP, RED

7080003

$1.49

43

CLAMP,HOSE(10)

7080544

Unavailable

44

TANK,OIL,W/SEND.UNIT HOLE

5432825

Unavailable
