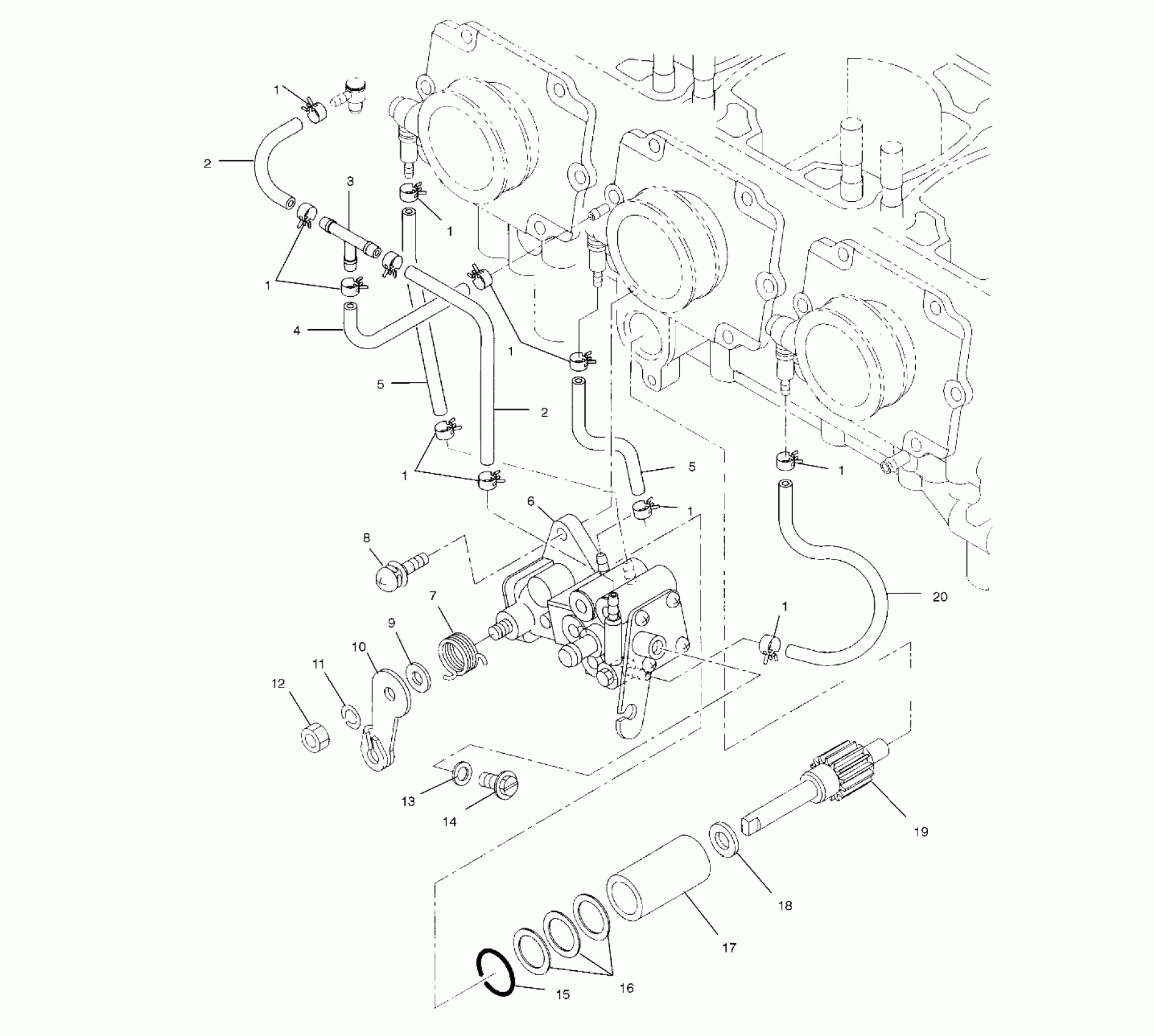

Polaris 800 XCR - S02SB8AS OIL PUMP - S02SB8AS (4969486948C013) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE,RUBBER

3086825

$6.63

2

PIPE,RUBBER

3086825

$6.63

3

T-TYPE,CONNECTOR

3086133

Unavailable

4

PIPE,RUBBER Substituted by 3086827

3086826

Unavailable

5

PIPE 1,VINYL

3084467

$28.32

5

PIPE 1,VINYL

3084467

$28.32

6

PUMP ASM,OIL (Incl. 7-15)

3085804

Unavailable

7

SPRING-RETURN

3083123

Unavailable

8

SCREW&WASHER,(10)

3083783

$2.39

9

COLLAR, CAMSHAFT(10)

3083445

$2.39

10

LEVER,CONTROL

3085805

$47.99

11

WASHER-SPRING(10)

3083121

$299.99

12

NUT(10)

3083120

$3.19

13

PACKING(10)

3083126

$4.03

14

SCREW-AIR VENT

3083125

Unavailable

15

O RING

3083127

Unavailable

16

SPACER #3 (.6mm)

3083673

Unavailable

16

SPACER #2 (.3mm)

3083672

Unavailable

16

SPACER #1 (.15mm)

3083671

Unavailable

17

BUSHING(OIL PUMP)

3083353

$31.99

18

SPACER

3083130

$1.59

19

GEAR,SMALL,OIL PUMP

3083131

$89.99

20

PIPE,VINYL 1

3085157

$29.99
