Description

Price

1

WINSHIELD-GEN 2,FLR,12",SMOKE

5434251

$118.99

2

RIVET,PLASTI-LOC.(50)

7621509

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

5

FOAM,PREFILTER,SRP

5811821

Unavailable

6

HEX NUT-NT0001 [Item NotAvailable]

3280321

$1.83

7

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

8

WASHER,FLAT

3280324

$0.51

9

CLAMP,BACK,GAUGE,2"

3280322

$5.43

10

COVER-INTAKE,INSTR,HOUS,SRP

5433419

Unavailable

11

BULB,TAILLIGHT(10)

4030024

$4.84

11

DESC NOT_AVAILABLE

3280335

Unavailable

12

CUSHION,RUBBER,2"

3280323

$8.79

13

SPACER,BRKT,(FUELGAUGE)

3280228

$2.81

13

SPACER,BRKT,(FUELGAUGE)

3280228

$2.81

14

ASM-HOUSING,SRP,HI LEVEL XCR (Incl. Warning Decals)

2632293

Unavailable

15

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

15

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

16

BULB TAILLIGHT(10)

4030015

$4.03

16

TACH,6 P,WHITE W/FUEL LT

3280329

Unavailable

17

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

18

BULB TAILLIGHT(10)

4030015

$4.03

18

SPEEDO,5",120MPH,WHITE

3280328

Unavailable

19

CABLE,SPEEDO,90 IN.

3280341

$60.70

19

FOIL,TAPE,3 X 12

5811308

$12.79

20

GUAGE,FUEL,2"BACKLIT

3280334

$131.99

20

Fuse

4060139

Unavailable

21

CUSHION,FUELGAUGE,(2"),RUBBER

3280230

$3.41

22

BRACKET,FUELGAUGE,(2")

3280229

Unavailable

23

Washer

3280231

$0.24

24

Nut

3280232

$1.49

25

WASHER,SPLITLOCK

3280233

Unavailable

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

HARNESS-HEADLIGHT

2460762

$123.99

28

RIVET(50)

7621334

$1.49

28

RIVET(50)

7621334

$1.49

29

CUP, HOOD LATCH,(10)

5430733

$4.84

30

SCREW(10)

7517441

$2.39

30

SCREW(10)

7517441

$2.39

31

RETAINER,WINDSHIELD,(10)

5410970

$1.49

32

CLIP,ROSEBUD,GRAY

7080886

$4.79

33

RIVET,(50)3/16(.251-.375)

7661084

$1.49

34

CLIP,PIGTAIL

5242893

$6.65

35

BURR,RIVET(50)

7555904

$1.49

36

CABLE,HOOD,HYB.

7080764

$28.32

36

CABLE-HOOD,XCR

7080854

$12.30

37

POP RIVET(50)

7621402

$1.49

38

TUBING-CONVOLUTED HI TEMP,70CM

5521496-70

$7.38

39

DUCT,AIR HOOD,XCR

5433268

$53.17

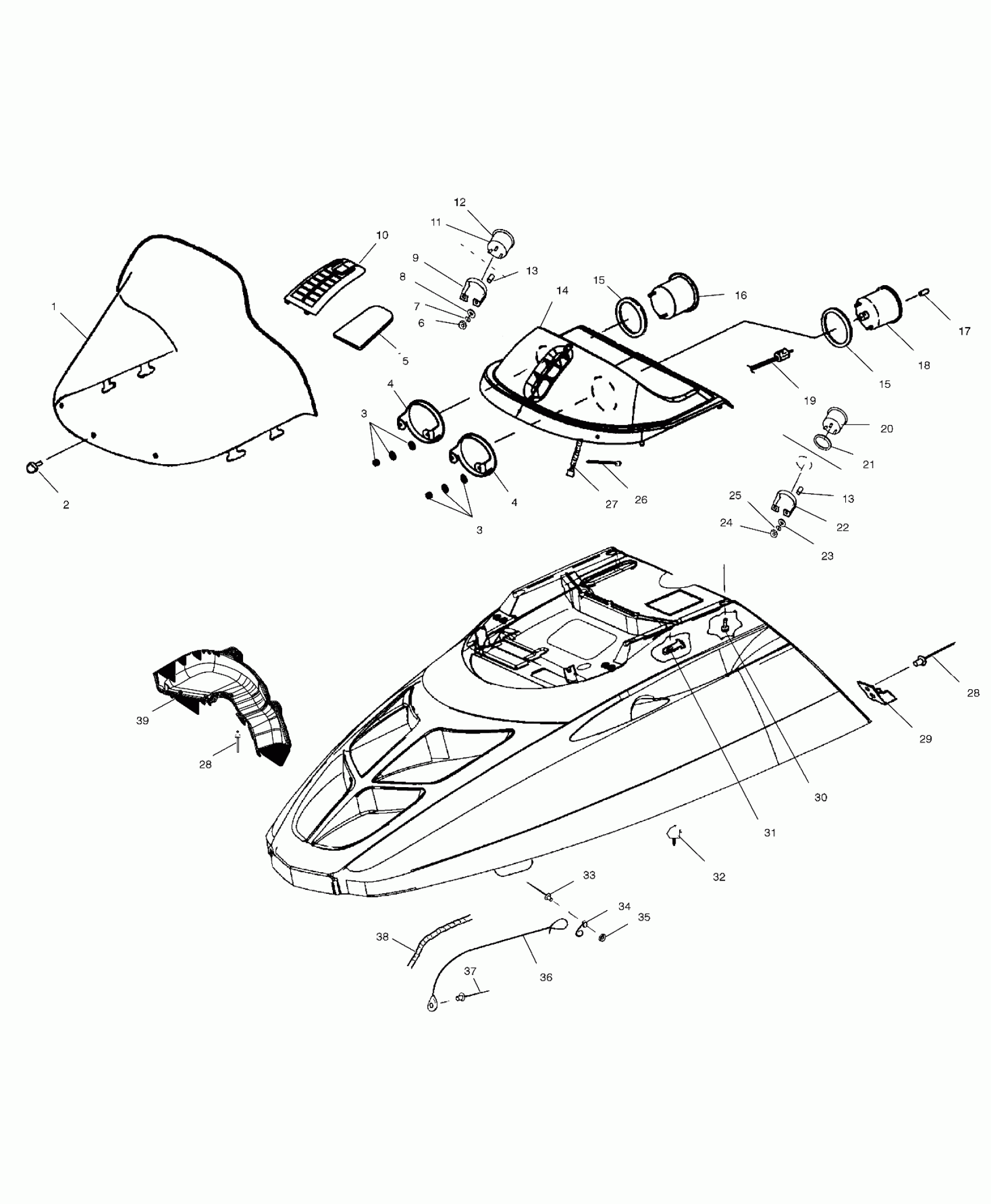

Polaris 800 XCR - S02SB8AS HOOD - S02SB8AS (4969486948A007) Diagram

WINSHIELD-GEN 2,FLR,12",SMOKE

RIVET,PLASTI-LOC.(50)

WASHER,FLAT,(10)

Nut

WASHER,SPLIT LOCK

BRKT,TACH/SPEEDO,5"

BRKT,TACH/SPEEDO,5"

FOAM,PREFILTER,SRP

HEX NUT-NT0001 [Item NotAvailable]

WASHER, LOCK,(S.S.)(10)

WASHER,FLAT

CLAMP,BACK,GAUGE,2"

COVER-INTAKE,INSTR,HOUS,SRP

BULB,TAILLIGHT(10)

DESC NOT_AVAILABLE

CUSHION,RUBBER,2"

SPACER,BRKT,(FUELGAUGE)

SPACER,BRKT,(FUELGAUGE)

ASM-HOUSING,SRP,HI LEVEL XCR (Incl. Warning Decals)

CUSHION,TACH/SPEEDO,RUBBER

CUSHION,TACH/SPEEDO,RUBBER

BULB TAILLIGHT(10)

TACH,6 P,WHITE W/FUEL LT

KNOB,TRIP ODOMETER,LH THD.

BULB TAILLIGHT(10)

SPEEDO,5",120MPH,WHITE

CABLE,SPEEDO,90 IN.

FOIL,TAPE,3 X 12

GUAGE,FUEL,2"BACKLIT

Fuse

CUSHION,FUELGAUGE,(2"),RUBBER

BRACKET,FUELGAUGE,(2")

Washer

Nut

WASHER,SPLITLOCK

CABLE-TIE,DIA12-50MM,WTHR-RES.

HARNESS-HEADLIGHT

RIVET(50)

RIVET(50)

CUP, HOOD LATCH,(10)

SCREW(10)

SCREW(10)

RETAINER,WINDSHIELD,(10)

CLIP,ROSEBUD,GRAY

RIVET,(50)3/16(.251-.375)

CLIP,PIGTAIL

BURR,RIVET(50)

CABLE,HOOD,HYB.

CABLE-HOOD,XCR

POP RIVET(50)

TUBING-CONVOLUTED HI TEMP,70CM

DUCT,AIR HOOD,XCR
