Description

Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5131450

Unavailable

5

TORQUE ARM FRONT,X10,QA,BLK

1541466-067

Unavailable

6

SHIELD-SPRING

5430671

$24.27

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

WASHER,(10)

7555959

$4.99

8

WASHER,(10)

7555959

$4.99

8

WASHER,(10)

7555959

$4.99

9

ZERK,FITTING,THREADED(10)

7080433

$1.49

9

ZERK,FITTING,THREADED(10)

7080433

$1.49

9

ZERK,FITTING,THREADED(10)

7080433

$1.49

10

BOLT,EYE

7010050

Unavailable

11

CLIP(10)

7080278

$2.63

12

CLAMP, RETAINER(10)

7080372

$3.99

13

RIVET-3/16-.090-.290

7661637

$1.49

14

BUSHING,PIVOT TUBE

5020561

$1.59

15

Spacer

5333028

$1.59

16

NUT LOCK(10)

7542403

$3.99

17

SPRING,BLACK,COMP.

7041253-067

$95.22

18

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

19

Shock, Front Track (See RYDE FX Shock - Front Track Pg. B14)

-------

Unavailable

20

HARNESS-ELECTRIC SHOCK

2460889

Unavailable

21

NUT LOCK(10)

7542411

$3.19

21

NUT LOCK(10)

7542411

$3.19

21

NUT LOCK(10)

7542411

$3.19

22

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

22

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

24

BOLT(10)

7515472

$2.39

25

WELD-SHOCK ARM,BLK

1541514-067

$23.19

26

BOLT(10)

7515438

$4.79

27

Shaft (See Suspension Pg. B11, Ref. 18)

-------

Unavailable

28

Shaft (See Suspension Pg. B11, Ref. 21)

-------

Unavailable

29

SPACER, OUTER

5332784

Unavailable

30

MACHINERY BUSHING(10)

7556301

$3.19

30

MACHINERY BUSHING(10)

7556301

$3.19

31

WHEEL, IDLER

1543018

$56.65

32

BOLT Substituted by 7515491

7515433

$1.59

32

BOLT Substituted by 7515491

7515433

$1.59

33

SCREW ,(10)

7517313

$4.79

34

STRAP,LIM,FRT,X10,QA

5411498

Unavailable

35

Shaft, Arm, Pivot (See Suspension Pg. B11, Ref. 22)

-------

Unavailable

36

NUT,NYLOC,(10)

7542344

$3.99

37

BOLT(10)

7512377

$4.79

38

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

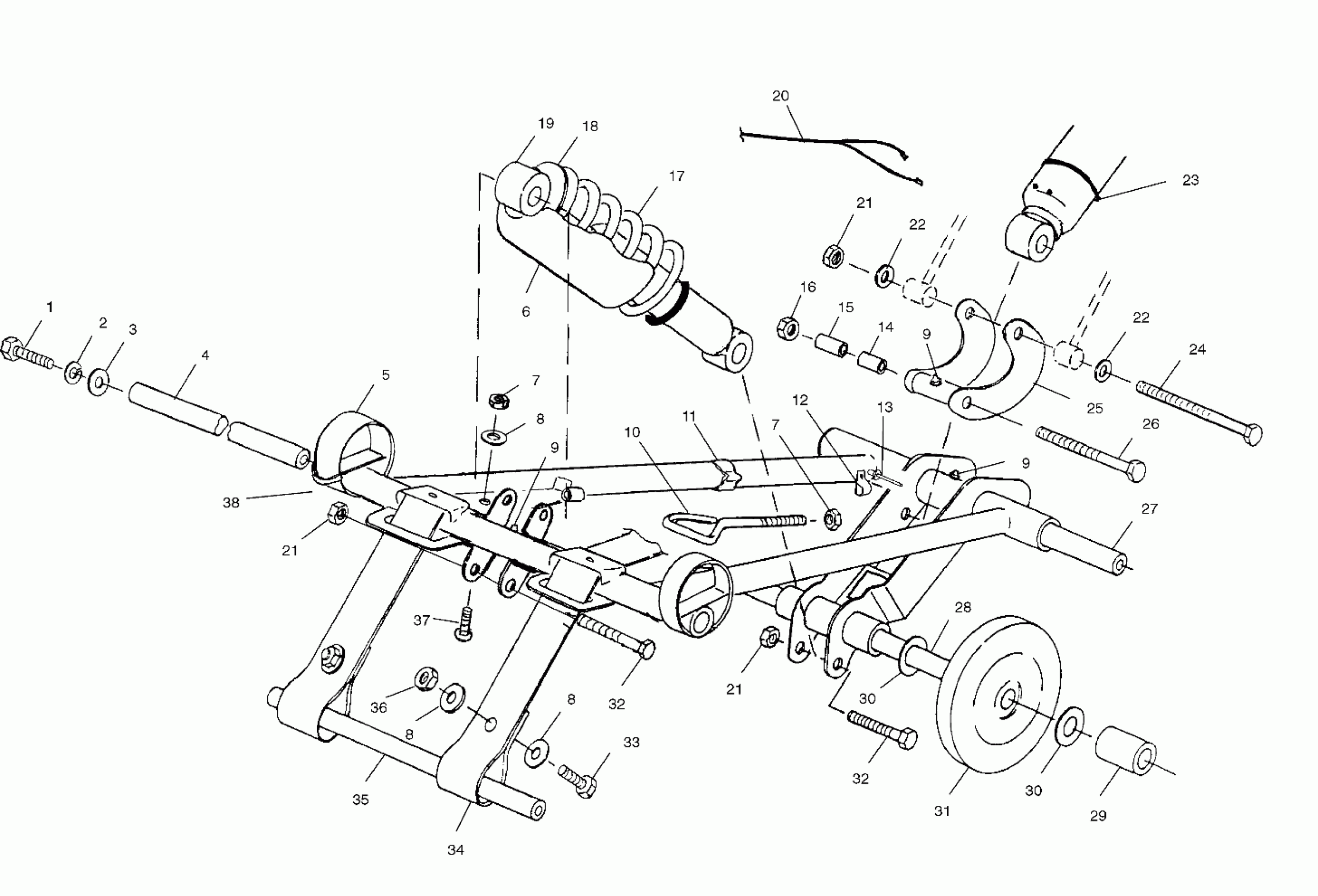

Polaris 800 XCR - S02SB8AS FRONT TORQUE ARM - S02SB8AS (4969486948B012) Diagram

Bolt

WASHER(10)

WASHER(10)

Shaft

TORQUE ARM FRONT,X10,QA,BLK

SHIELD-SPRING

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

WASHER,(10)

WASHER,(10)

WASHER,(10)

ZERK,FITTING,THREADED(10)

ZERK,FITTING,THREADED(10)

ZERK,FITTING,THREADED(10)

BOLT,EYE

CLIP(10)

CLAMP, RETAINER(10)

RIVET-3/16-.090-.290

BUSHING,PIVOT TUBE

Spacer

NUT LOCK(10)

SPRING,BLACK,COMP.

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

Shock, Front Track (See RYDE FX Shock - Front Track Pg. B14)

HARNESS-ELECTRIC SHOCK

NUT LOCK(10)

NUT LOCK(10)

NUT LOCK(10)

WASHER-.390X.750X.020-WAVE-Y

WASHER-.390X.750X.020-WAVE-Y

CABLE-TIE,25-76MM,WEATH.-RES.

BOLT(10)

WELD-SHOCK ARM,BLK

BOLT(10)

Shaft (See Suspension Pg. B11, Ref. 18)

Shaft (See Suspension Pg. B11, Ref. 21)

SPACER, OUTER

MACHINERY BUSHING(10)

MACHINERY BUSHING(10)

WHEEL, IDLER

BOLT Substituted by 7515491

BOLT Substituted by 7515491

SCREW ,(10)

STRAP,LIM,FRT,X10,QA

Shaft, Arm, Pivot (See Suspension Pg. B11, Ref. 22)

NUT,NYLOC,(10)

BOLT(10)

CABLE-TIE,DIA12-50MM,WTHR-RES.
