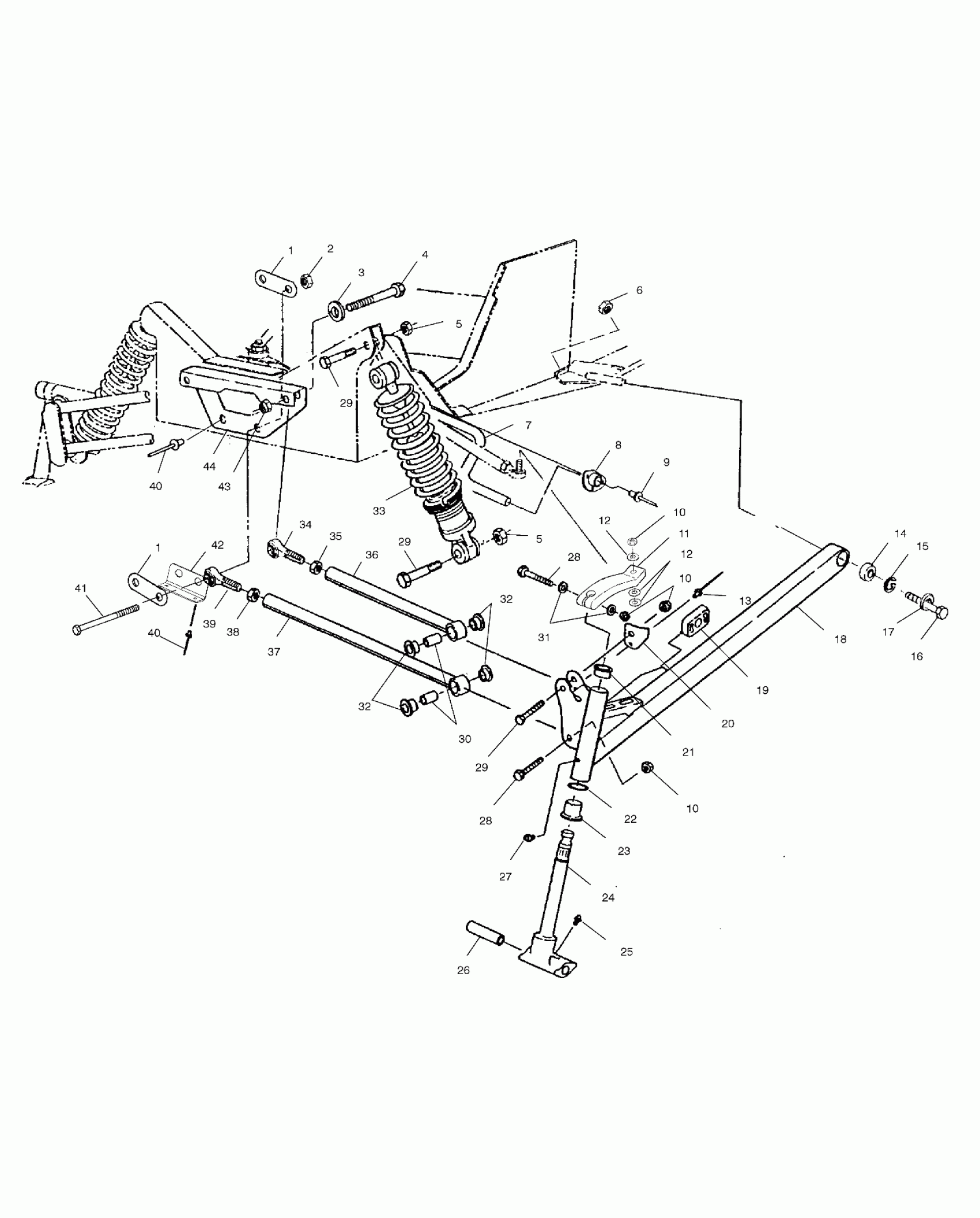

Polaris 800 XCR - S02SB8AS FRONT SUSPENSION - S02SB8AS (4969486948B003) Diagram

#

Description
Price

1

STRAP,SPACER BOTTOM

5211345

$12.99

1

STRAP,SPACER BOTTOM

5211345

$12.99

2

NUT FLEX,(10)

7542703

Unavailable

3

WASHER THRUST(10)

7558702

$1.59

4

BOLT(10)

7512551

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

NUT,7/16X20 HVY,NYLON ZY3

7547140

$10.32

7

BAR-TORSION,5/8,BLK

5243008-067

Unavailable

8

BUSHING,SWAY BAR

5432038

$19.99

9

RIVET,(50)

7621477

$1.19

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

ARM,LH,STRG,ALUM.

5131739

$161.89

11

ARM,RH,STRG,ALUM.

5131740

Unavailable

12

WASHER(10)

7555797

$3.99

12

WASHER(10)

7555797

$3.99

13

RIVET(50) Substituted by 7661130

7661643

Unavailable

14

BEARING-SPHERICAL,7/16,PLASTIC

7061042

$31.99

15

RING,RETAINING(10)

7710437

$3.19

16

BOLT(10)

7512579

Unavailable

17

WASHER(10)

7555801

$3.99

18

TRAILING ARM,LH,INDY RED Substituted by 2872478-293 (Incl. 14,15)

1820713-293

Unavailable

18

TRAILING ARM,RH,INDY RED Substituted by 2872477-293 (Incl. 14,15)

1820714-293

Unavailable

19

SLIDE,SWAYBAR,5/8

5432561

$24.27

20

STOP-STEERING,LH,RED

5242017-293

$10.71

20

STOP-STEERING,RH,RED

5242018-293

$12.39

21

BUSHING-FLANGE

3573909

$2.39

22

WASHER SPECIAL(10)

7556509

$1.59

23

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

24

SPINDLE,SHAFT,HARD.

6230099-067

Unavailable

25

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

26

BUSHING,PIVOT,(10)

5010158

$19.99

27

ZERK,FITTING,THREADED(10)

7080433

$1.49

28

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

28

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

29

BOLT(10)

7515415

$1.49

29

BOLT(10)

7515415

$1.49

29

BOLT(10)

7515415

$1.49

30

BUSHING-RADIUS ROD,(10)

5010127

$7.99

31

WSHR-.813X.406X.105-Y

7555832

$2.39

32

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

32

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

33

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

33

SPRING,COMPRESSION

7041575-067

$52.60

33

RYDE FX Shock IFS (See RYDE FX Shock - IFS Pg. C1)

-------

Unavailable

34

ROD END-RADIUS,RH,7/16"

7061049

Unavailable

35

NUT JAM(10)

7542520

$2.39

36

RADIUS ROD,UPPER,BLK

1822588-067

Unavailable

37

RADIUS ROD,LOWER,BLK

1822559-067

Unavailable

38

NUT-JAM(10)

7542711

$2.39

39

ROD END-RADIUS,RH,LOWER

7061052

$48.56

40

RIVET-3/16-.090-.290

7661637

$1.49

40

RIVET-3/16-.090-.290

7661637

$1.49

41

BOLT(10)

7512684

Unavailable

42

BRKT,RAD.ROD,BTM.

5242578

$44.99

43

NUT, LOCK,(10)

7542503

$10.39

44

BRACE,BULKHEAD,FRONT,BLK

1012575-067

$23.99
