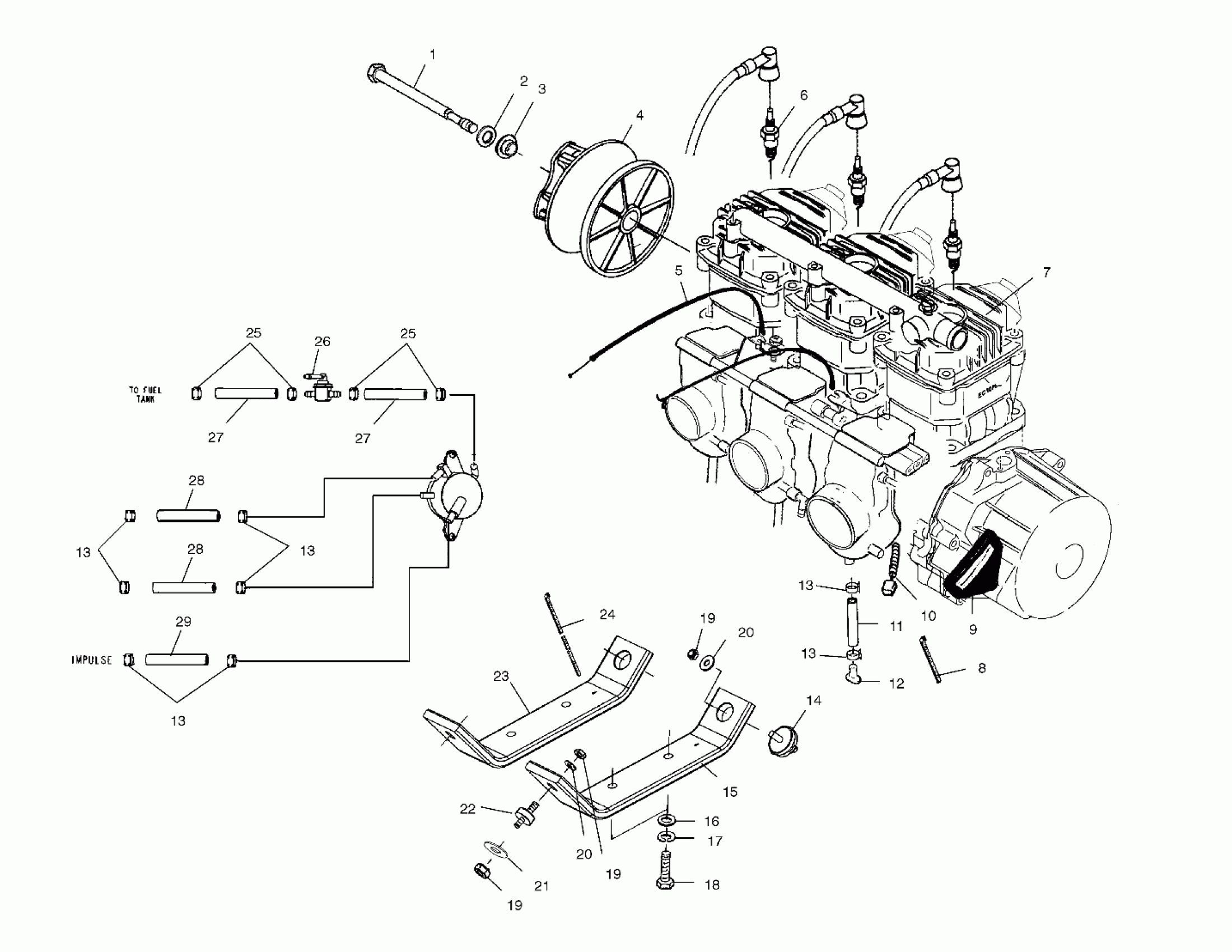

Polaris 800 XCR - S02SB8AS ENGINE MOUNTING - S02SB8AS (4969486948C005) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET.

5131872

Unavailable

4

Asm., Drive Clutch (See Drive Clutch Pg. C2, Ref. 18)

-------

Unavailable

5

CABLE,THROTTLE,W/OIL,38MM.

7080731

Unavailable

6

SPARKPLUG(8)

3070165

$3.99

7

ENG.(S.B.)EC79PL-010 The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for warranty conside

3085608

$4,924.99

8

STRAP, PANDUIT Substituted by 7080003

7080527

Unavailable

9

HANDLE-RECOIL,BLK

5431499-070

$15.48

10

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

11

HOSE,WATERTRAP,5/16,45�

5411708

Unavailable

12

PLUG,TRAP

5431893

$12.94

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

MOUNT-ENGINE,3/8-16,3 TABURETH

3021298

Unavailable

15

PLATE-ENGINE,STRAP,RH

5244445

$128.99

16

WASHER-.469X1.12X.120FL

7556137

$2.63

17

WASHER LOCK(10)

7553101

$3.99

18

BOLT,(10)

7517442

$6.39

19

NUT,FLEXLOCK,(10)

7547008

$6.39

19

NUT,FLEXLOCK,(10)

7547008

$6.39

19

NUT,FLEXLOCK,(10)

7547008

$6.39

20

WASHER(10)

7555893

$1.49

20

WASHER(10)

7555893

$1.49

21

WASHER,FLAT(10)

7555915

$3.19

22

MOUNT,ENG.

3110061

$84.99

23

PLATE-ENGINE,STRAP,LH

5244444

Unavailable

24

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

25

CLAMP,HOSE(10)

7080544

Unavailable

25

CLAMP,HOSE(10)

7080544

Unavailable

26

VALVE,FUEL SHUT-OFF

7052217

Unavailable

27

FUEL,LINE,ETHER,RED,3/8' Substituted by 8350016-160

8350016-600

Unavailable

27

FUEL,LINE,ETHER,RED,3/8' Substituted by 8350016-160

8350016-600

Unavailable

28

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

28

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

29

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable
