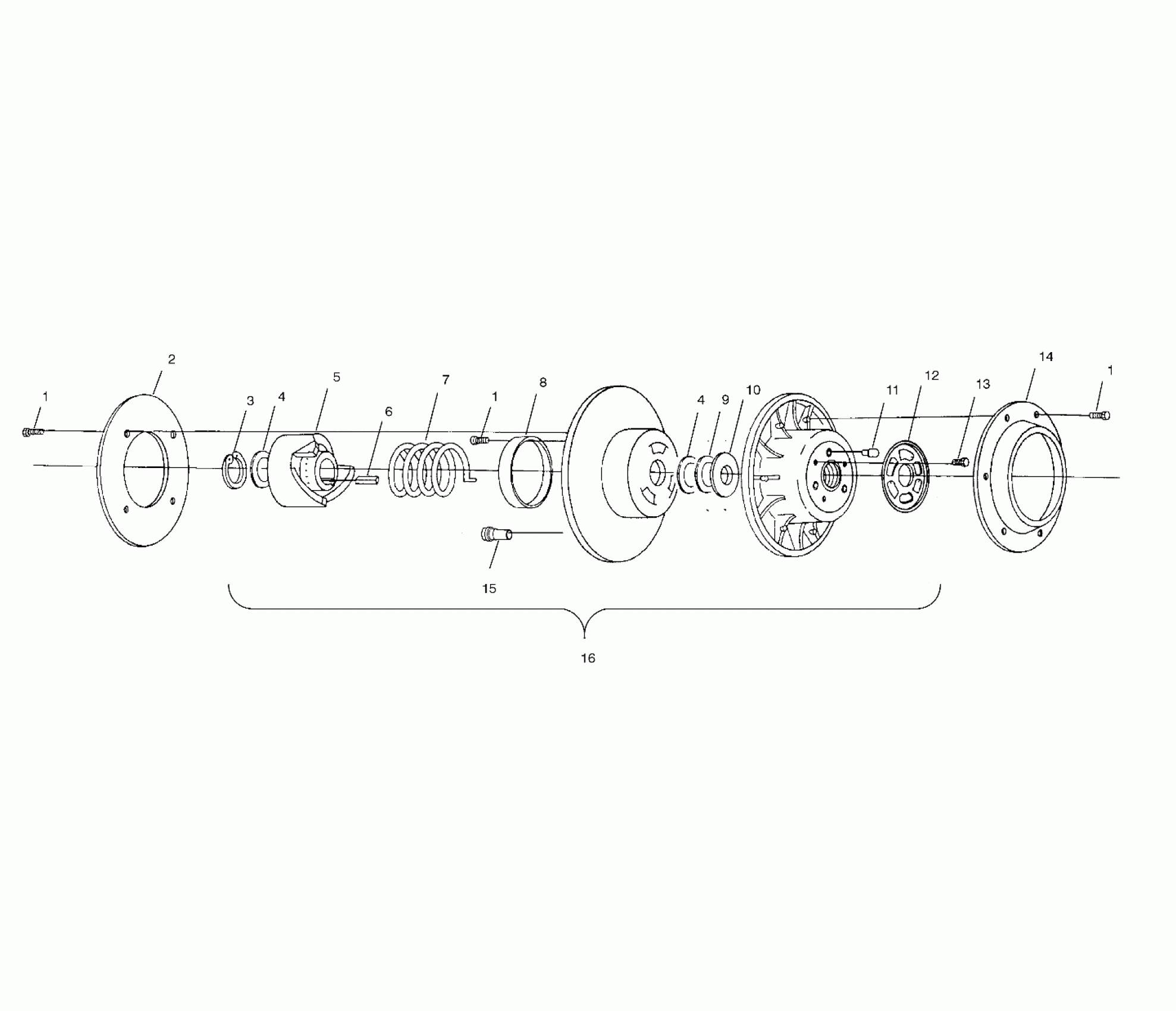

Polaris 800 XCR - S02SB8AS DRIVEN CLUTCH - S02SB8AS (4969486948C003) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE-DRIVEN,VENTED

5243158

$131.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10) (.030)

7556804

$1.49

4

WASHER(10) (.030)

7556804

$1.49

5

RAMP,DRIVEN,R12,MACH

5131298

Unavailable

6

KEY-1/4X3/16X2.75

7721128

$10.39

7

SPRING,CLUTCH,SVR/BLUE

7041646

$69.99

8

BUSHING,D.U.

3569803

Unavailable

9

WASHER(10) (.020)

7555898

Unavailable

9

WASHER(10) (.025)

7556076

Unavailable

10

WASHER,DRIVE CLUTCH(10) (.075)

7555865

$6.39

11

PIN, CLUTCH

5020653

$34.99

12

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

13

SCREW(10)

7515133

$3.99

14

CAP-DRIVEN,VENTED

5243157

Unavailable

15

BUTTON-RAMP,(10)

5430466

$6.46

16

ASM-DRIVEN CLUTCH,BSC,204 W/B [Incl. All Less 2,5,7,14]

1321927

Unavailable
