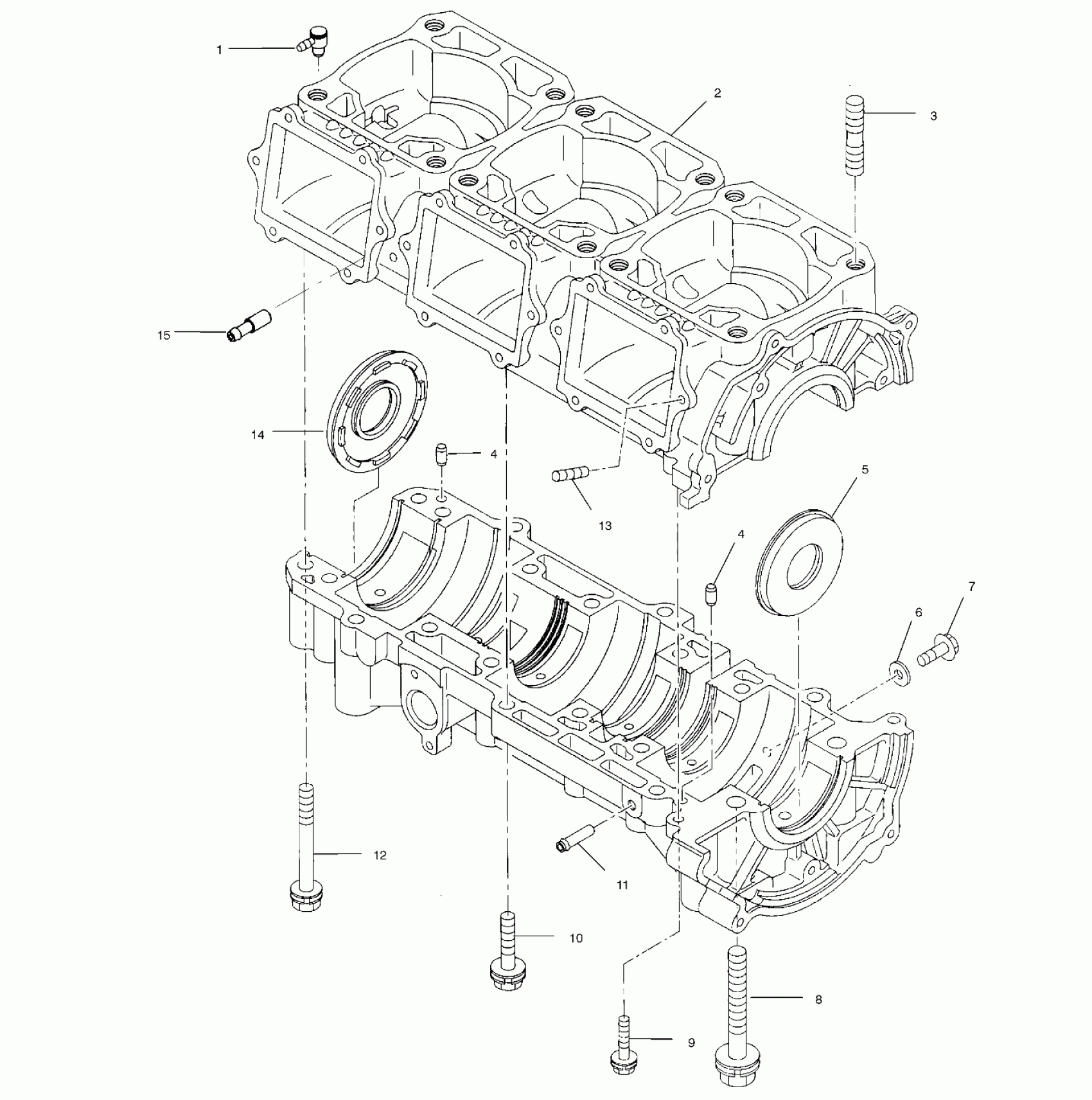

Polaris 800 XCR - S02SB8AS CRANKCASE - S02SB8AS (4969486948C007) Diagram

#

Description
Price

1

NIPPLE,(ELBOW)

3085462

Unavailable

2

CRANKCASE ASM. (Incl. 1-4,8-13,15)

3086111

$1,064.99

3

Stud

3084519

$12.39

4

PIN, DOWEL Substituted by 3086838

3080103

$7.14

4

PIN, DOWEL Substituted by 3086838

3080103

$7.14

5

Seal, Oil

3085105

Unavailable

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

BOLT&WASHER ASM.

3085240

$5.43

9

BOLT&WASHER ASM.

3082038

$3.99

10

BOLT&WASHER ASM.

3083382

$8.79

11

PIPE, PULSE

3083798

$9.52

12

BOLT&WASHER ASM.

3084670

Unavailable

13

STUD

3084182

Unavailable

14

SEAL, OIL

3085241

Unavailable

15

Pipe

3083474

$4.95
