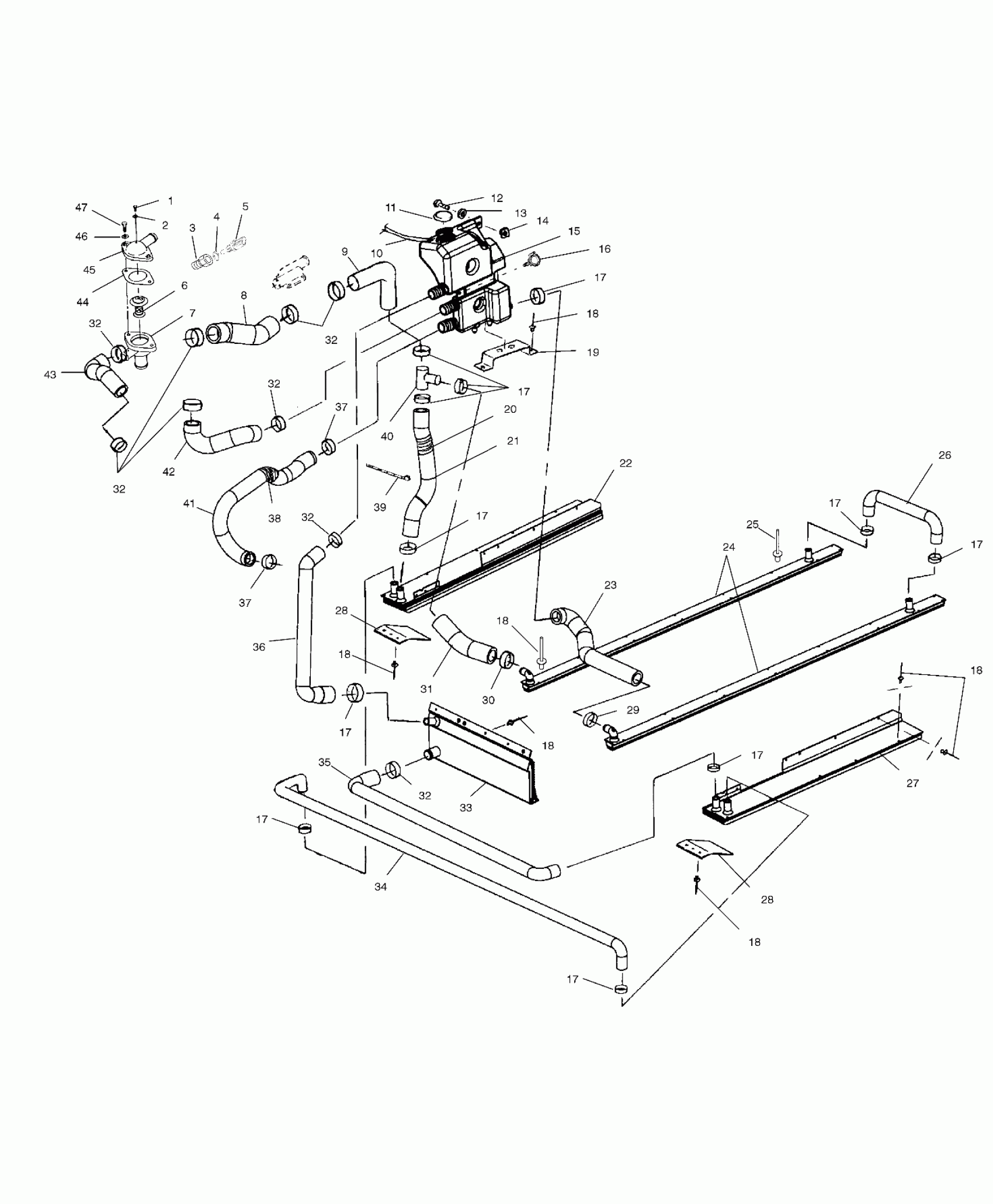

Polaris 800 XCR - S02SB8AS COOLING SYSTEM - S02SB8AS (4969486948A013) Diagram

#

Description
Price

1

SCREW,(10) Substituted by 7517565

7517266

$15.99

2

WASHER,FLAT,(10)

7555998

$1.49

3

PLUG,THERMO

3085737

$12.39

4

GASKET,TEMP SENSOR

3086139

$1.99

5

SENSOR,TEMP

3086138

Unavailable

6

AUTOSTAT,120DEG.

7051017

Unavailable

7

HOUSING-THERMOSTAT,MACH

5132025

$102.99

8

HOSE,STAT OUT/BRAKE IN,1 IN ID

5411815

$23.19

9

HOSE,R.COOLER,3-WAY

5410845

$13.19

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

11

CAP, PRESSURE,(13 LB)

2511270

$24.27

12

BOLT(10)

7512276

$4.79

13

WASHER,WROUGHT(10)

7558302

$1.59

14

Nut

7670096

$1.59

15

TANK,COOLANT,NO BLEED,TRIPLE

5433269

Unavailable

16

CLIP, PLASTIC(10)

4020139

$4.79

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

19

BRKT,SURGE TANK,COINED

5241331

$118.99

20

SPRING,HOSE RETAINER

7041079

$4.95

21

HOSE,RH FOOTREST/COOLANT TEE

5411703

$18.10

22

COOLER,SIDE,X-10,RH

1240051

$140.79

23

HOSE,STRIP,COOLER/TANK

5411673

Unavailable

24

WEAR STRIP COOLER,1.00"

1240052

Unavailable

25

RIVET,3/16X.402(50)

7621432

$1.49

26

HOSE,R.WEARSTRIP,COOLER

5411383

Unavailable

27

COOLER,SIDE,X-10,LH

1240059

Unavailable

28

GUARD, COOL.EXT.

5222863

$32.99

28

GUARD-SIDE COOLER,RH

5243333

$8.62

28

GUARD, COOL.EXT.

5222863

$32.99

28

GUARD-SIDE COOLER,RH

5243333

$8.62

29

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

30

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

31

HOSE,COOLANT TEE/RH WEAR STRIP

5411704

$15.87

32

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

32

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

32

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

32

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

32

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

32

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

33

EXCHANGER,CLOSE-OFF

2511304

$399.99

34

HOSE,CROSSOVER

5411706

$74.39

35

HOSE,FRT COOLER/LH FOOTREST

5411705

$53.59

36

HOSE,CENTER COOLER/TOP SURGE

5411717

$31.35

37

SPRINGBAND-CLAMP 42/12,BLK(10)

7080845

Unavailable

37

SPRINGBAND-CLAMP 42/12,BLK(10)

7080845

Unavailable

38

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

39

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

40

CONNECTOR,TEE,3/4"

7052093

$8.79

41

HOSE,COOLANT

5411688

Unavailable

42

HOSE,STAT OUT/TANK IN,1 IN ID

5411817

$26.98

43

HOSE,ENG OUT/STAT IN,1 IN ID

5411816

$27.19

44

Gasket, Thermostat

5830020

Unavailable

45

CAP,THERMOSTAT HSG,MACH.

5130942

$40.79

46

LOCK WASHER(10)

7552901

$1.49

47

BOLT(10)

7512383

$1.99
