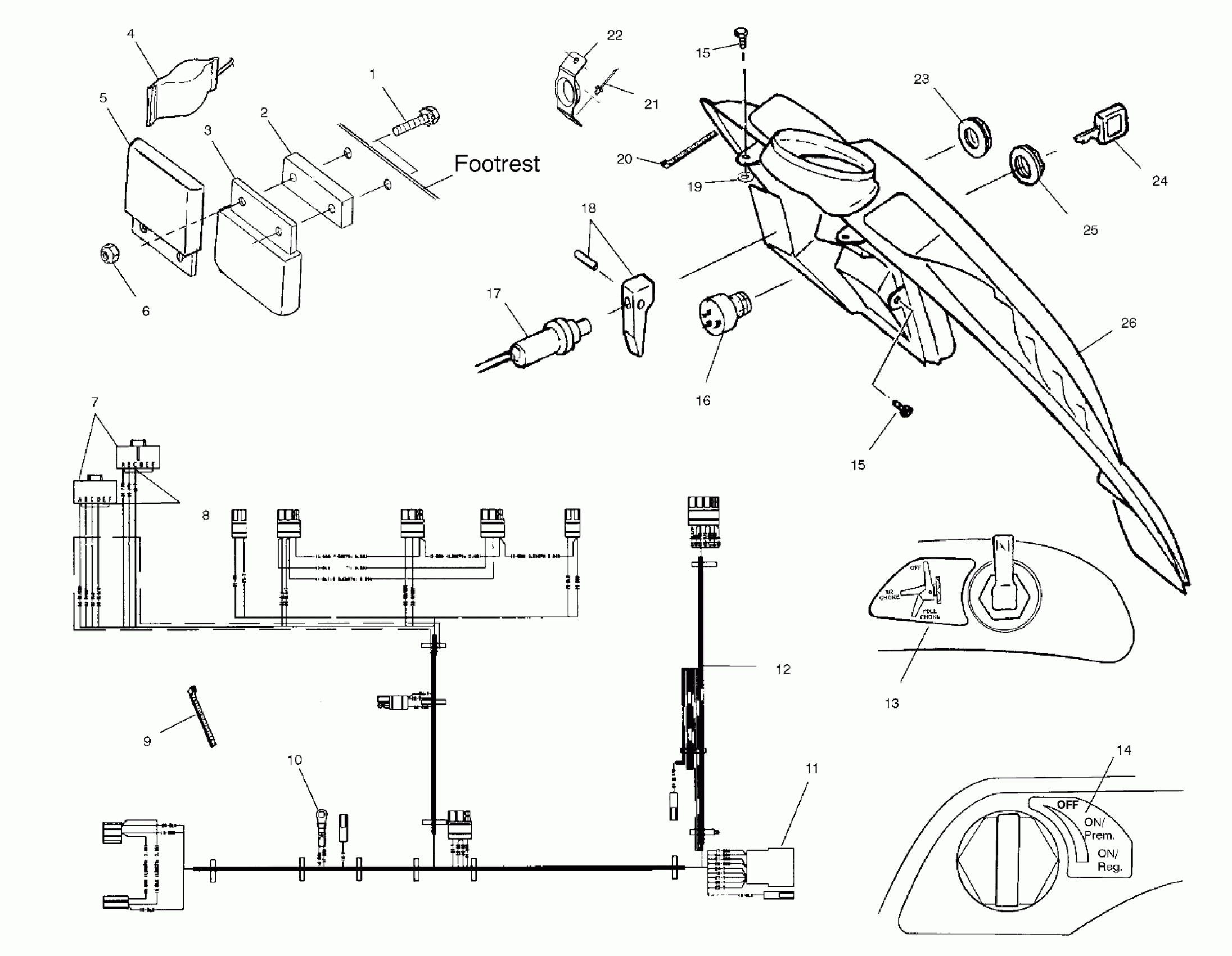

Polaris 800 XCR - S02SB8AS CONSOLE - S02SB8AS (4969486948A012) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

CAPACITOR,ELECSHK.

4010143

$111.99

5

MODULE,CONTROL,ELECSHK.

4010142

Unavailable

6

NUT(10)

7541925

$1.49

7

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

8

SOCKET-PACKARD#12047767

4010192

Unavailable

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

Terminal, Ring

4020092

Unavailable

11

Housing w/Receptacle

4020057

$3.51

12

HARNESS,MAIN WIRE,HI LVL

2460838

$214.39

13

DECAL-CHOKE

7170054

$24.27

14

DECAL-IGNITION,OFF/PREM/REG

7078039

Unavailable

15

SCREW(10)

7515199

$1.49

15

SCREW(10)

7515199

$1.49

16

KIT-IGNITION SWITCH,ES,FUEL

2201614

$89.03

17

CABLE,CHOKE,SINGLE-PULL (Incl. 18,23)

7080734

Unavailable

18

KIT,CHOKE LEVER

2201439

$24.27

19

WASHER,NYLON

7555932

$2.39

20

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

21

RIVET, POP(50)

7621330

$1.49

22

GUIDE-RECOIL

5243049

$9.70

23

NUT,CHOKE

5432944

$8.79

24

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behin

5410611

Unavailable

25

NUT,IGNITION

7547035

$8.79

26

CONSOLE,HYBRID,BLK

5432906

Unavailable
