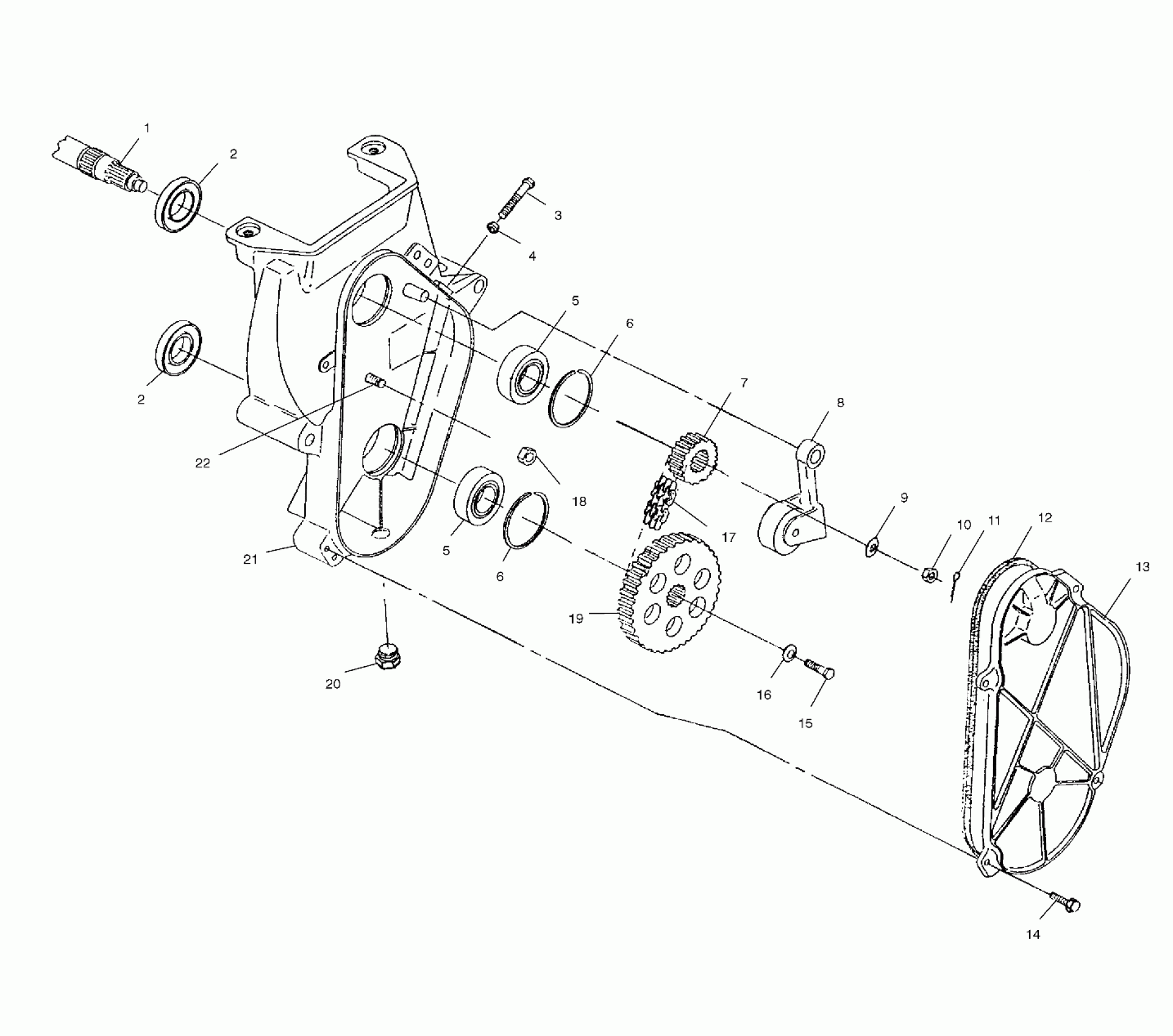

Polaris 800 XCR - S02SB8AS CHAINCASE - S02SB8AS (4969486948B008) Diagram

#

Description
Price

1

Asm., Jackshaft (See Drive Train Pg. B9, Ref. 17)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515551

$6.39

4

NUT(10)

7542404

$1.59

5

BEARING,BALL

3514309

$15.87

5

BEARING,BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPKT,24T,3/4W,15 SPL,HV,PM

3221101

$49.99

8

PIN,CHAIN TIGHTENER

7662210

Unavailable

8

BEARING

3553002

$11.99

8

WHEEL,C/C IDLER

5630123

Unavailable

8

WASHER THRUST(10)

7558702

$1.59

8

TIGHTENER,CHAINCASE

1332213

$159.99

8

BLOCK,TIGHTENER,W/ANGLE

5630958

$159.99

9

WASHER, SLOTTED(10)

7571620

$7.19

10

NUT

7542811

Unavailable

11

COTTER PIN(10)

7661401

$1.49

12

GASKET,CHAINCASE,LONG

5411207

$20.22

13

COVER,CHAINCASE

5630691

$115.99

14

SCREW(10)

7512242

$2.39

15

DESC NOT_AVAILABLE

7517979

$3.99

16

WASHER(10)

7571618

$6.39

17

CHAIN-HYVO,23-149,70P,34W

3221115

$164.99

18

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

19

SPKT,39T,3/4W,15T,HYVO,PM

3222108

$59.99

20

PLUG(10)

7052115

$5.65

21

CHAINCASE,VENTED

5131455

Unavailable

22

BOLT(10)

7515477

$34.99
