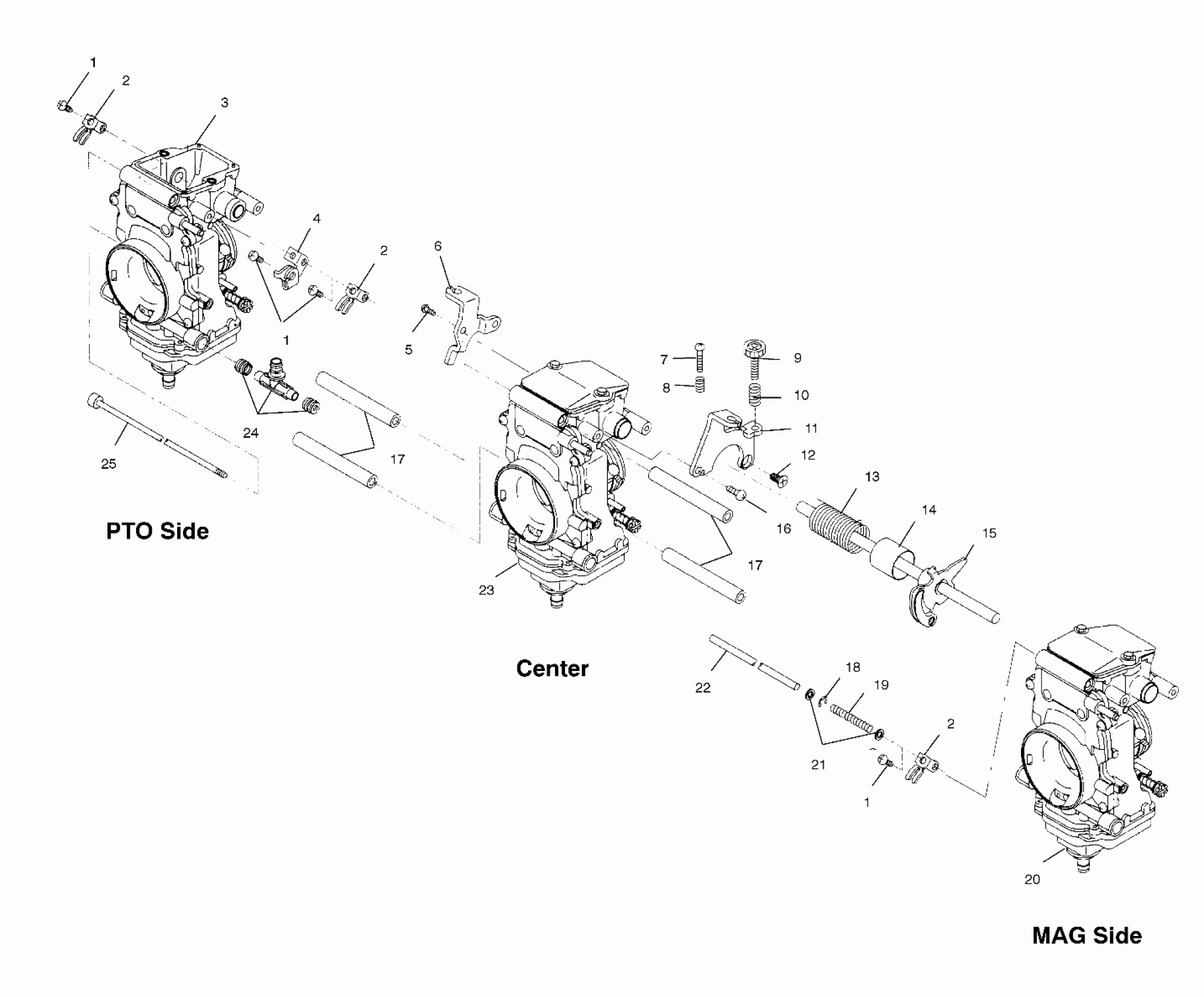

Polaris 800 XCR - S02SB8AS CARBURETOR - S02SB8AS (4969486948C014) Diagram

#

Description
Price

-

CARBURETOR,ASM. (Incl. 1-25 and all of Carburetor Pg. D2)

3131204

Unavailable

1

SCREW,STARTER

3130833

$3.99

1

SCREW,STARTER

3130833

$3.99

1

SCREW,STARTER

3130833

$3.99

2

LEVER,STARTER

3130832

$24.27

2

LEVER,STARTER

3130832

$24.27

2

LEVER,STARTER

3130832

$24.27

3

ASM., MIXING BODY

-------

Unavailable

4

LEVER,STARTER

3130819

$32.37

5

SCREW (Center Side)

3130821

$7.19

6

BRACKET (Center Side)

3130820

$40.46

7

SCREW (Center Side)

3130816

$6.39

8

SPRING (Center Side)

3130817

$6.46

9

ADJUSTER (Center Side)

3130812

$20.22

10

SPRING (Center Side)

3130811

$7.99

11

BRACKET (Center Side)

3130815

$29.75

12

SCREW (Center Side)

3130810

$3.19

13

Spring

3130814

Unavailable

14

Ring

3130853

$7.27

15

SHAFT ASM.

3131006

Unavailable

16

SCREW (Center Side)

3130809

$3.19

17

Ring

3131004

Unavailable

17

Ring

3131004

Unavailable

18

E-RING Substituted by 3130839

3130990

Unavailable

19

SPRING,STARTER SHAFT

3130841

$7.27

20

ASM., MIXING BODY

-------

Unavailable

21

PACKING Substituted by 3130842

3130988

Unavailable

22

Shaft

3131011

$23.19

23

ASM., MIXING BODY

-------

Unavailable

24

NIPPLE ASM.

3131008

$32.37

25

Bolt

3131007

Unavailable
