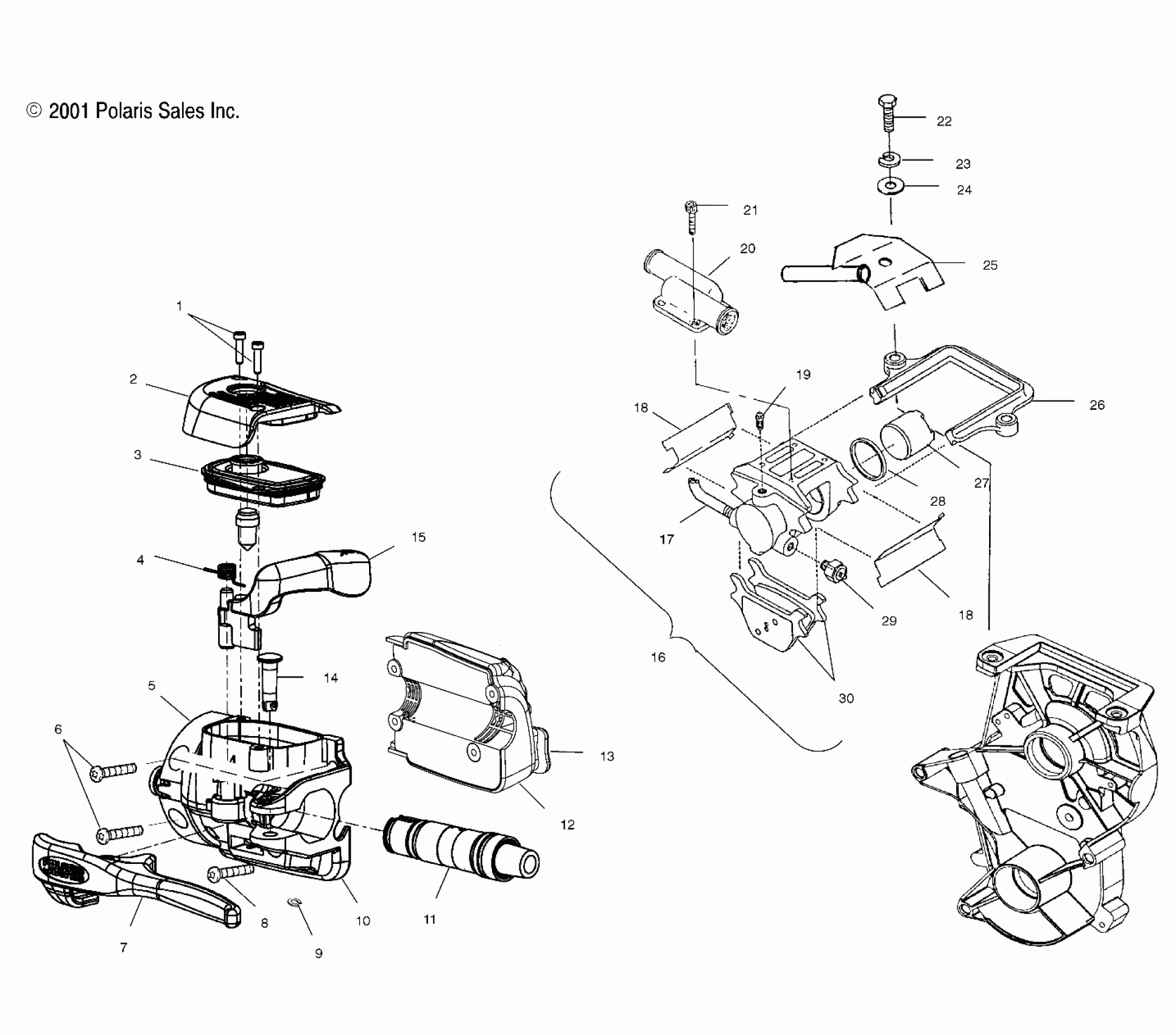

Polaris 800 XCR - S02SB8AS BRAKE - S02SB8AS (4969486948B001) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

ASM-MASTER CYL,HAYES,5/8 (Incl. 2,4,7,10,11,14)

2010209

$304.98

6

SCREW(10)

7517441

$2.39

7

KIT-LEVER,3 NOTCH/PIN/RING

2201943

$52.60

8

SCREW(10)

7517566

$3.99

9

KIT-SNAP RING

2201945

$8.79

10

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT-BODY,PIVOT PIN,SNAP RING

2201948

$304.98

11

KIT-5/8" CARTRIDGE SUB ASM

2201944

Unavailable

12

CONTROL ASM,LH,BASE W/SA

2010168

$151.99

13

BUTTON SWITCH HI/LO

5433291

Unavailable

14

KIT-PIVOT PIN,ALUM W/SNAP RING

2201946

$24.27

15

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

16

BRAKE CALIPER,HD,LIQ,NOSW (Incl. 27,28,30)

1910348

Unavailable

17

LINE,BRAKE

1930749

Unavailable

18

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

18

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

19

KIT, INLET

1930735

$9.11

20

COOLER,WATER,BRAKE

1930728

$62.39

20

GASKET,BRK.COOLER

2201024

$7.99

21

PK/4,SCREW SET (Pkg. of 4)

1930729

$29.49

22

BOLT(10)

7515521

$3.99

23

WASHER(10)

7552603

$1.49

24

WASHER(10)

7555806

$1.49

25

ROPE GUIDE,CC-Z

1012849

$66.39

26

KIT,CALIPER BRKT.

1930733

Unavailable

27

KIT, PISTON SEAL (Incl. 28)

1930734

Unavailable

28

SEAL

2200466

$32.37

29

SWITCH,BRAKE LIGHT

4010157

Unavailable

30

KIT,BRAKE,PAD TYPE 81(LARGE) (Incl. 18)

2201430

Unavailable
