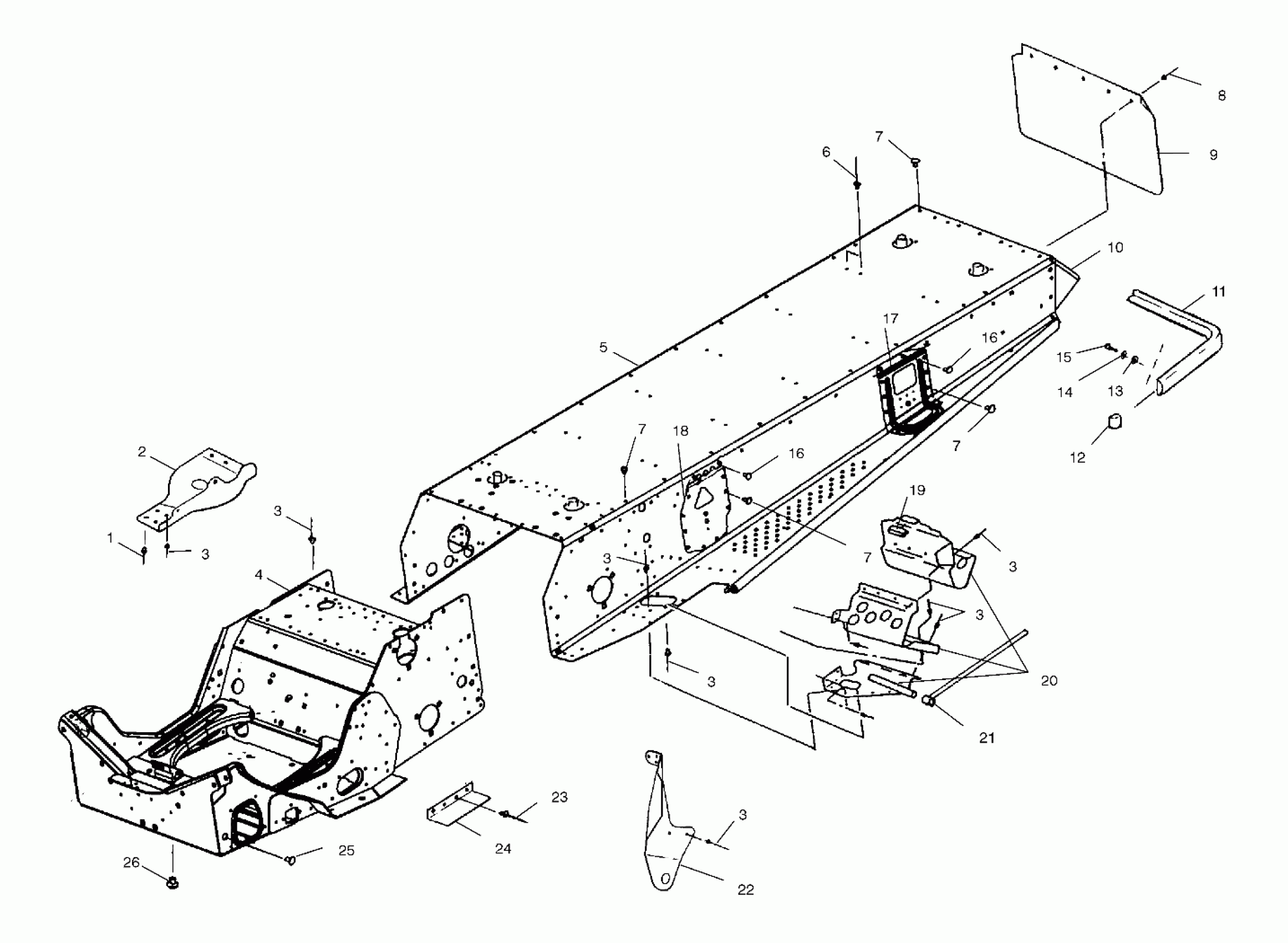

Polaris 800 XCR - S00SB8AS TUNNEL - S00SB8AS (4954015401a005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

BULKHEAD,CRC,HYB,TRIPLE

1013030-067

Unavailable

5

TUNNEL,TRIPLE,X-10,BLK (Incl. 10,17,18)

1012901-067

Unavailable

6

RIVET,3/16X.402(50)

7621432

$1.49

7

RIVET ,(50)

7661837

$1.49

7

RIVET ,(50)

7661837

$1.49

7

RIVET ,(50)

7661837

$1.49

7

RIVET ,(50)

7661837

$1.49

8

POP RIVET(50)

7621418

$1.49

9

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

10

PANEL,TUNNELBACK,BLK

5241946-067

Unavailable

11

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

12

CAP,BUMPER

5431995-070

Unavailable

13

WASHER(10)

7558301

$1.49

14

LOCK WASHER(10)

7552801

$1.59

15

BOLT(10)

7512240

$3.99

16

RIVET ,(50)

7661836

$0.63

16

RIVET ,(50)

7661836

$0.63

17

BRKT,LH,R.SUSP,BLK.

5241954-067

Unavailable

17

BRKT,RH,R.SUSP,BLK.

5241955-067

$22.23

18

BRKT,FRT PAD,LH,BLK

5243708-067

$17.43

18

BRKT,FRT PAD,RH,BLK

5243709-067

$16.47

19

EXTRUSION,CLUTCHGUARD

5521238

$6.46

20

FOOTREST,LH,BLK

1012898

Unavailable

20

FOOTREST,RH,BLK

1012899

$119.99

21

TUNNEL SUPPORT,LH,BLK

1013052-067

$17.10

21

TUNNEL SUPPORT,RH,BLK

1013053-067

$17.97

22

BRACE,LH,F'REST/TR.ARM MT.

5242494-067

$11.90

22

BRACE,RH,F'REST/TR.ARM MT.

5242495-067

Unavailable

23

RIVET(50)

7621452

$1.49

24

GUARD,ADAPTER GUIDE

5222857

$12.94

25

PLUG, HOLE(10)

7080416

$5.65

26

PLUG-HOLE

7080398

$4.84

26

PLUG,HOLE(10)

7080689

$5.75
