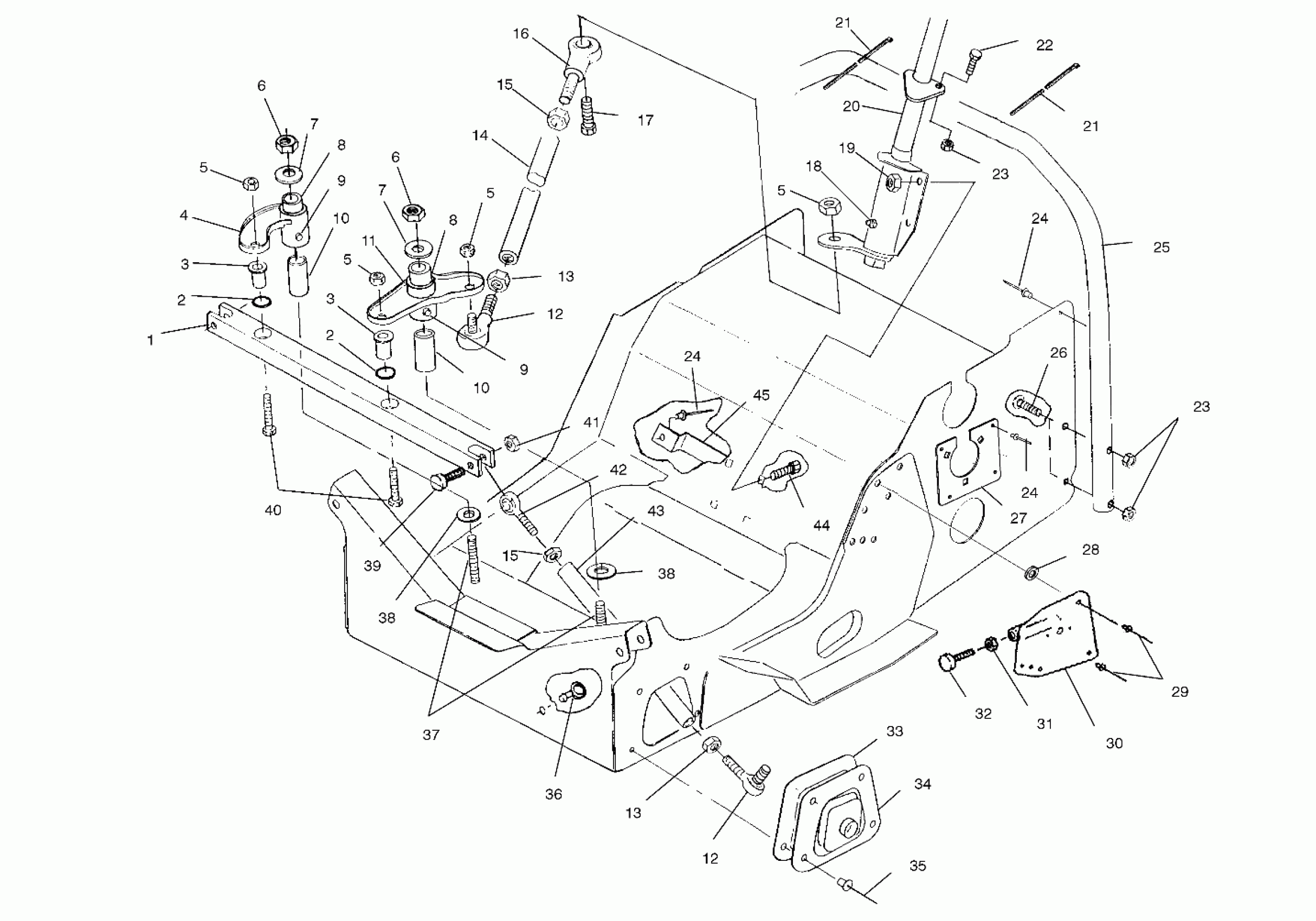

Polaris 800 XCR - S00SB8AS STEERING - S00SB8AS (4954015401b004) Diagram

#

Description
Price

1

RACK ASM,CRC

1822479

Unavailable

2

O-RING

5411220

$6.46

2

O-RING

5411220

$6.46

3

TUBE,SPACER

5010384

Unavailable

3

TUBE,SPACER

5010384

Unavailable

4

IDLER ARM (Incl. 8,9)

1820579

$49.59

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

6

NUT,FLEX LOCK(10)

7547029

Unavailable

6

NUT,FLEX LOCK(10)

7547029

Unavailable

7

WASHER(10)

7555721

$1.49

7

WASHER(10)

7555721

$1.49

8

BUSHING

3563907

$3.99

8

BUSHING

3563907

$3.99

9

ZERK,FITTING,THREADED(10)

7080433

$1.49

9

ZERK,FITTING,THREADED(10)

7080433

$1.49

10

Spacer

5010468

Unavailable

10

Spacer

5010468

Unavailable

11

ARM,PITMAN ASM. (Incl. 8,9)

1822562

Unavailable

12

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

12

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

13

NUT HEX(10)

7542401

$2.39

13

NUT HEX(10)

7542401

$2.39

14

ROD,DRAGLINK

5333411

Unavailable

15

NUT

7542424

$1.49

15

NUT

7542424

$1.49

16

ROD END, LH.

7060164

$48.56

17

BOLT(10)

7512404

$3.99

18

FITTING-LUBRICATION 1/4-28

7080424

$4.79

19

NUT FLEX-LOC(10)

7542303

$6.39

20

STEERING POST,TRIPLE

1820682-067

Unavailable

21

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

21

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

22

SCREW

7517377

$4.79

23

NUT, LOCK(10)

7542103

$5.59

23

NUT, LOCK(10)

7542103

$5.59

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

25

STEERING HOOP,TRIPLE,BLK

1012902-067

$66.39

26

BOLT-CARRIAGE(10)

7512275

$3.99

27

PLATE,BRG.SUPPORT,B'HD.

5211806-067

$10.71

28

Washer

7555965

$2.63

29

RIVET(50) Substituted by 7661130

7661643

Unavailable

30

TORQUE STOP,WELD

1013177

$74.39

31

NUT,HEX(10)

7542414

$4.79

32

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

33

BOOT,TIEROD,MOD

5411249

Unavailable

34

PLATE,BOOT,MOD

5211796-067

$31.35

35

POP RIVET(50)

7621323

$1.49

36

CLIP, PLASTIC(10)

4020139

$4.79

37

SCREW,(10)

7517402

$3.59

38

WASHER(10)

7556053

$2.63

38

WASHER(10)

7556053

$2.63

39

SCREW(10)

7515434

Unavailable

40

Screw

7517574

Unavailable

41

NUT LOCK(10)

7542411

$3.19

42

ROD END,LH

7060166

$48.56

43

ROD-TIE,BLK

5020970-067

Unavailable

44

BOLT,(10)

7517428

$2.39

45

DESC NOT_AVAILABLE

5241597

Unavailable
