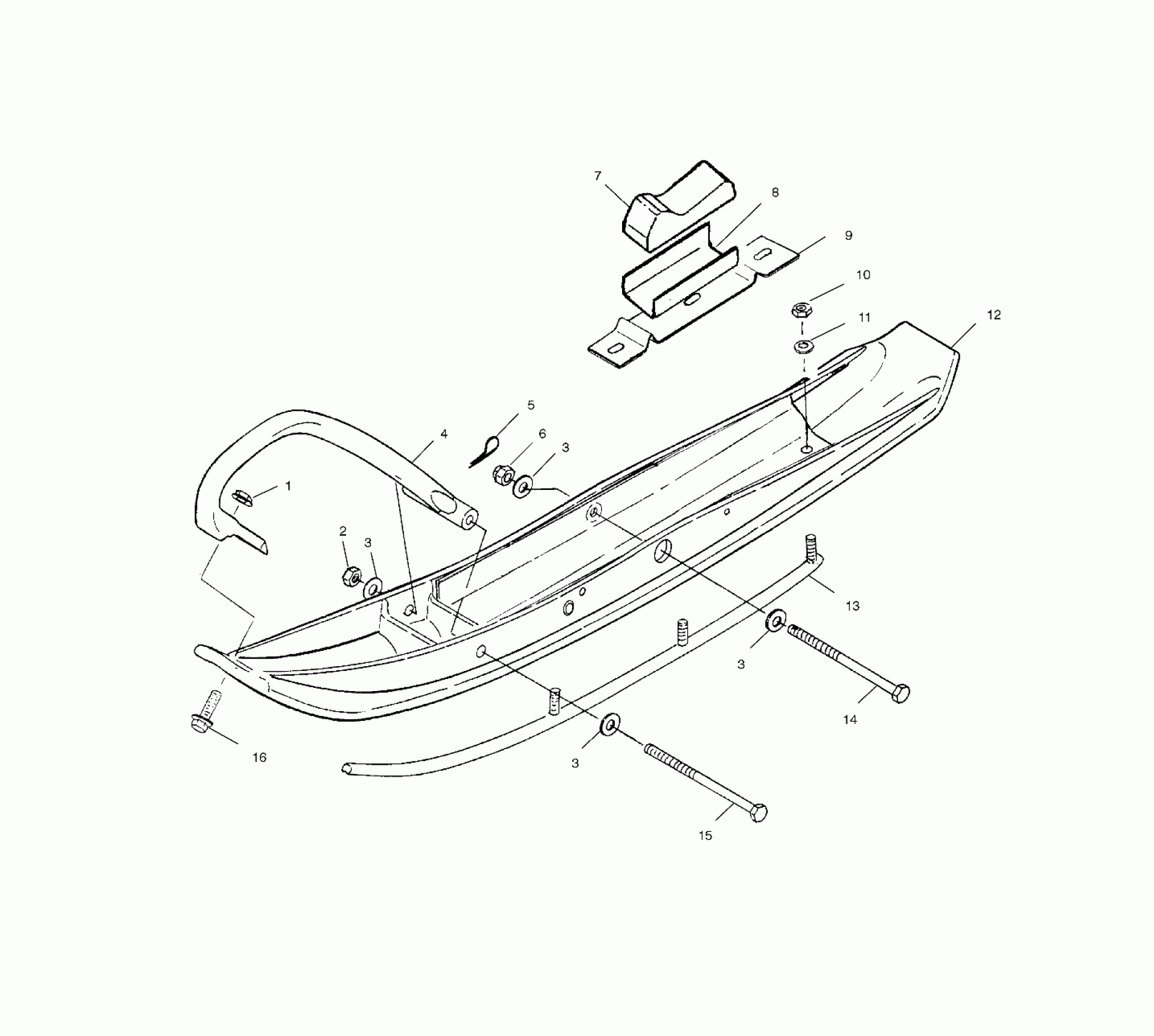

Polaris 800 XCR - S00SB8AS SKI - S00SB8AS (4954015401b003) Diagram

Description

Price

NUT LOCK(10)

7542321

$1.49

NUT LOCK(10)

7542411

$3.19

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

TOE,PLASTIC SKI,BLK Substituted by 5434165-070

5432209-070

$40.46

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

STOP,RUBBER

5411094

Unavailable

RETAINER-SKI RUBBER

5243824

$27.99

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

NUT-5/16-18 NYLOK-Y

7542324

$1.49

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

COMP.SKIBLANK,W/RK SDL,BLK

1820610-070

Unavailable

SKAG,CARBIDE 6",COMP PR

2871687

$89.99

SCREW,(10)

7512596

$19.99

BOLT(10)

7515514

$7.19

BOLT(10)

7515307

$3.99
