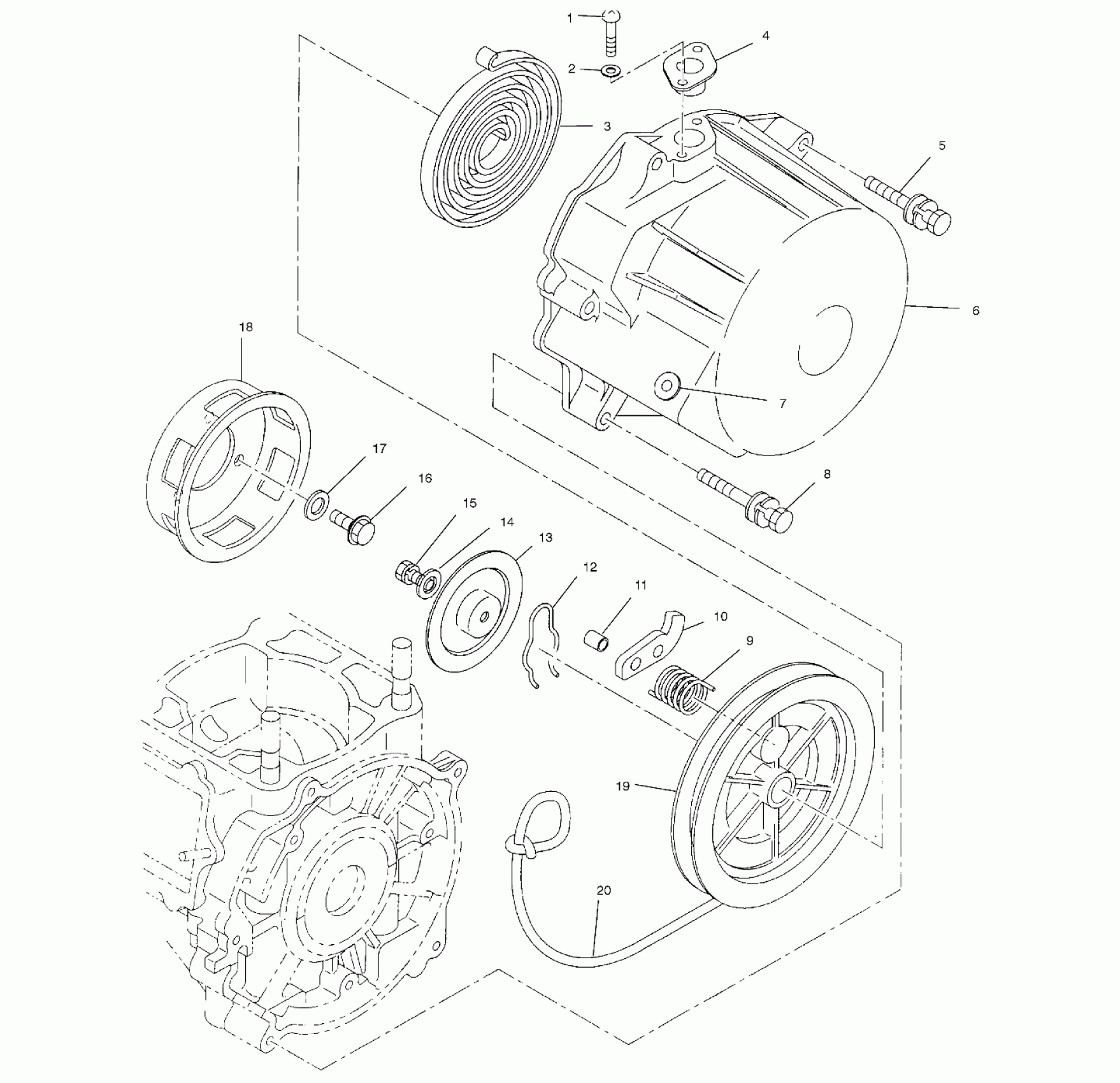

Polaris 800 XCR - S00SB8AS RECOIL STARTER - S00SB8AS (4954015401c012) Diagram

#

Description
Price

1

SCREW,SET

3085139

$1.99

2

WASHER(10)

3085140

$1.49

3

Spring, Spiral

3083376

$179.11

4

MARK,TIMING

3085138

$11.59

5

BOLT

3080109

Unavailable

6

STARTER, RECOIL (Incl. 1-7,9-15,19,20)

3085264

$181.59

6

CASE,STARTER

3085265

$180.16

7

GUIDE-ROPE

3083107

Unavailable

8

BOLT&WASHER

3083729

$3.49

9

Spring, Return

3083463

$4.03

10

Ratchet

3083378

$20.22

11

BUSH

3084750

$7.19

12

Spring, Friction

3083379

$24.27

13

Plate, Friction

3084744

Unavailable

14

WASHER(10) [No Longer Available]

3085363

Unavailable

15

BOLT&WASHER ASM.

3085266

Unavailable

16

BOLT&WASHER ASM.(10)

3084552

Unavailable

17

WASHER

3082520

$1.49

18

PULLEY,STARTING

3085141

Unavailable

19

Reel

3085137

$80.94

20

ROPE,100 FT,NYL.STARTER

2870621

$34.99
