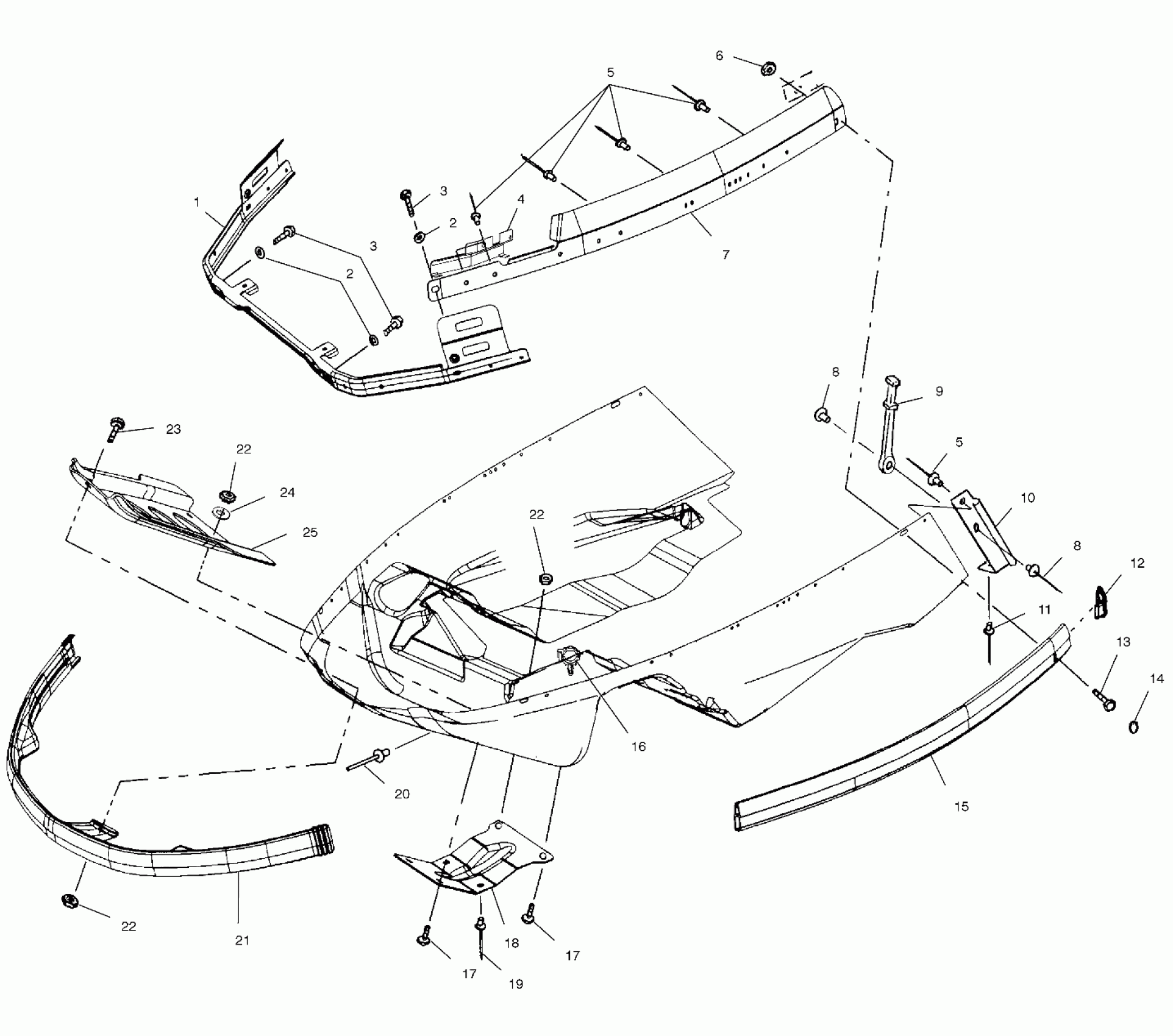

Polaris 800 XCR - S00SB8AS NOSEPAN - S00SB8AS (4954015401a007) Diagram

#

Description
Price

1

WELD-BRACE HINGE,BLK

1013049-067

Unavailable

2

LOCK WASHER(10)

7552801

$1.59

2

LOCK WASHER(10)

7552801

$1.59

3

BOLT(10)

7512276

$4.79

3

BOLT(10)

7512276

$4.79

4

HARNESS,WIRE,RETAINER

5243823

Unavailable

5

POP RIVET(50)

7621402

$1.49

5

POP RIVET(50)

7621402

$1.49

6

NUT, LOCK(10)

7542103

$5.59

7

GUIDE,HOOD,LH

5243005

Unavailable

7

GUIDE,HOOD,RH

5243006

Unavailable

8

RIVET,(50)

7621601

Unavailable

8

RIVET,(50)

7621601

Unavailable

9

STRAP, HOOD LATCH

5410370

$24.27

10

BRACE,PAN,RH

5220523-067

$94.99

10

BRACE,PAN,LH

5220522-067

$94.99

11

RIVET,3/16X.402(50)

7621432

$1.49

12

CAP,BUMPER,LH,BLK.

5432887

$8.08

12

CAP,BUMPER,RH,BLK.

5432888

$4.84

13

SCREW(10)

7515166

$3.19

14

PLUG, HOLE(10)

7080416

$5.65

15

EXTRUSION-BUMPER,FORMED,LH,BLK

5243460-067

Unavailable

15

EXTRUSION-BUMPER,FORMED,RH,BLK

5243461-067

$159.99

16

CLIP,ROSEBUD

4020149

$6.39

17

BOLT(10)

7512193

$2.39

17

BOLT(10)

7512193

$2.39

18

BRACE-PAN,LOWER,BLK

5242575-067

$24.27

19

RIVET,INTERLOCK,B(50)

7661638

$1.49

20

RIVET(50)

7621463

Unavailable

21

BUMPER,FR,HYB,BLK. Substituted by 5432891-070

5432891

$139.99

22

NUT-LOCK(10)

7542122

$1.49

22

NUT-LOCK(10)

7542122

$1.49

22

NUT-LOCK(10)

7542122

$1.49

23

BOLT(10)

7515175

$3.99

24

WASHER(10)

7558301

$1.49

25

BRACE,PAN,UPPER

5243820

Unavailable
